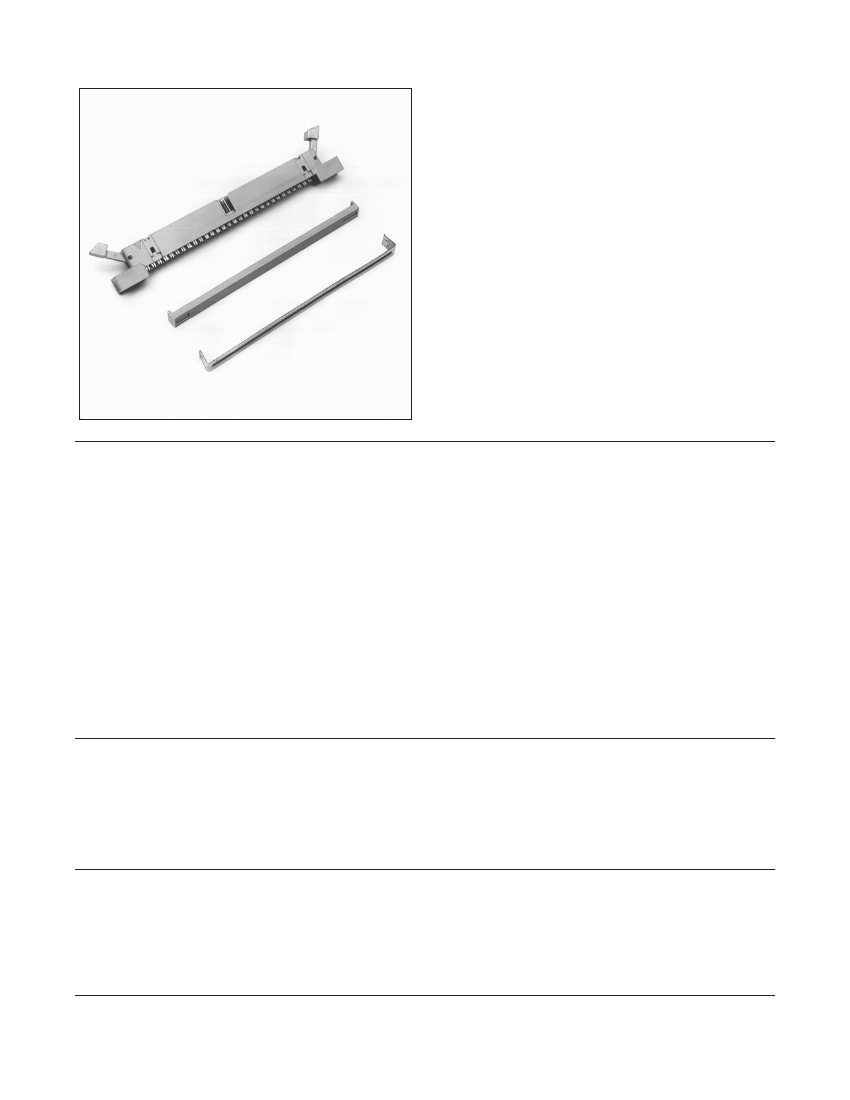

• Shrouded to protect against physical and chemical
pin damage
• Open or closed end covers available
• Optional ejector latches
• Accepts flat cable or discrete wire
• Military (with 3518 polarizing key) and centerbump
polarization available
• Optional mounting flanges
• Optional metal strain relief
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS Compliance” section
of www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: March 21, 2012
TS-0086-C
Sheet 1 of 4
Physical
Insulator:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material: Copper Alloy
Plating:
Underplating and U-Slot: 100 µ" [ 2.54 µm ] Nickel
Wiping Area: 30 µ" [ 0.76 µm ] Gold
Wire Accommodation: 26 and 28 AWG Solid and Stranded
Marking:
3M Logo, Part Identification Number, and Contact Position Numbers
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55ºC to +105ºC
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Plug
.100" × .100" Connector for .050" Pitch Cable
4600 Series

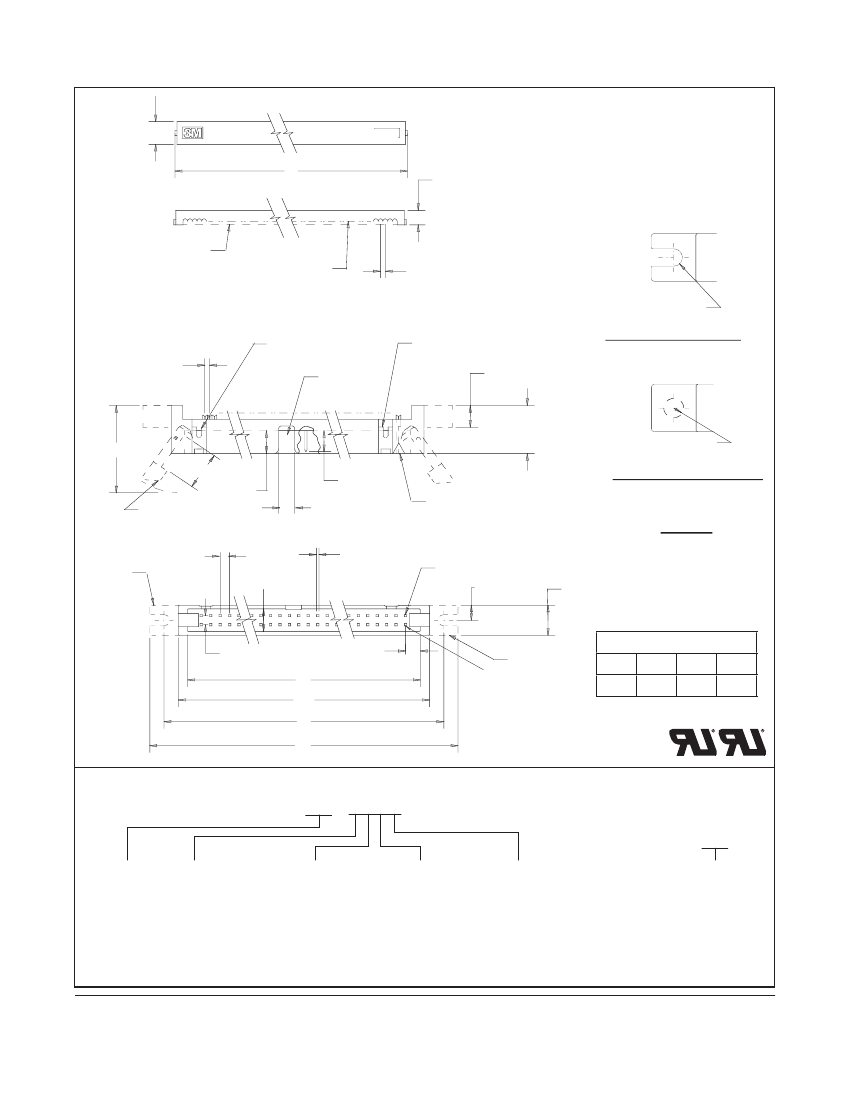

.25 [ 6.4 ]
46XX
D
.16
[ 4.1 ]
Optional Closed
End Cover
Nonconductive Transfer
Adhesive with Liner
.050 Typ
[ 1.27 ]
R .06
[ 1.5 ]
.050 Ref
[ 1.27 ]
Notch C
See Table
and Note 2
Notch B
See Table
Notch A
See Table
and Note 2
Slotted Mounting Flange
46XX-XXX0
.235
[ 5.97 ]
.525
[ 13.34 ]
H Ref
I
.25 Ref
[ 6.4 ]
.17
[ 4.3 ]
.24
[ 6.1 ]
Position 1
Orientation
Triangle
#4-40 x .14 [3.6] Long
Threaded Insert
Torque Spec: 3-5 in/lb
Optional
Ejector/Latch
.100 Ref
[ 2.54 ]
Threaded Mounting Flange
46XX-XXX5
Detail A
Optional
Mounting
Flange
.25
[ 6.4 ]
.025 Sq Typ
[ 0.64 ]
Position 1
.165
[ 4.19 ]
.33
[ 8.4 ]
Inch
[mm]
Tolerance Unless Noted
.0
inch
±.1
.0
±.01
.000
±.005
.100 Ref
[ 2.54 ]
B
A'
C
A
.155
±
.010
[ 3.94 ]
See
Detail A
Position 2
[ ] Dimensions for Reference Only
C
Ordering Information
46XX - XXXX
Ejector/Latch System:
0 = None (Standard)
2 = Short Ejector Latch
(3505-16)
3 = Long Ejector Latch
(3505-17)
7 = Universal Ejector
Latch (3505-21)
Polarization:
0 = for Contact Qty 14
to 64
0 = for Notch C on 10
Position
5 = for Notch B on 10
Position
(Order Separately)
Strain Relief
3448 - 46XX
Contact Quantity:
See Table
Cover Style:
6 = Open End (Daisy
Chaining/Bussing
- Standard)
7 = Closed End (End
Cable Termination)
Body Style:
0 = w/Mounting Flange (Standard)
(RIA E1 & C1 Apply)
1 = w/o Mounting Flange (RIA E1 & C1 Apply)
5 = Mounting Flanges w/ Threaded Insert from
Socket mating side (RIA E5 & C3 Apply)
Contact Quantity:
See Table
Assembly tools: 3M
™
Press, 3640 (or equivalent) ; 3M
™
Locator Plate, 3443-96; 3M
™
Platen, 3442-9
TS-0086-C
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Plug
.100" × .100" Connector for .050" Pitch Cable
Table 1
Pin Qty
10
14
16
20
24
26
30
34
36
40
50
60
64
A
1.50 [ 38.1 ]
1.70 [ 43.2 ]
1.80 [ 45.7 ]
2.00 [ 50.8 ]
2.20 [ 55.9 ]
2.30 [ 58.4 ]
2.50 [ 63.5 ]
2.70 [ 68.6 ]
2.80 [ 71.1 ]
3.00 [ 76.2 ]
3.50 [ 88.9 ]
4.00 [ 101.6 ]
4.20 [ 106.7 ]
A'
0.90 [ 22.9 ]
1.10 [ 27.9 ]
1.20 [ 30.5 ]
1.40 [ 35.6 ]
1.60 [ 40.6 ]
1.70 [ 43.2 ]
1.90 [ 48.3 ]
2.10 [ 53.3 ]
2.20 [ 55.9 ]
2.40 [ 61.0 ]
2.90 [ 73.7 ]
3.40 [ 86.4 ]
3.60 [ 91.4 ]
B
Dimensions
C
D
0.77 [ 19.6 ]
0.97 [ 24.6 ]
1.07 [ 27.2 ]
1.27 [ 32.3 ]
1.47 [ 37.3 ]
1.57 [ 39.9 ]
1.77 [ 45.0 ]
1.97 [ 50.0 ]
2.07 [ 52.6 ]
2.27 [ 57.7 ]
2.77 [ 70.4 ]
3.27 [ 83.1 ]
3.47 [ 88.1 ]
E
0.85 [ 21.6 ]
1.05 [ 26.7 ]
1.15 [ 29.2 ]
1.35 [ 34.3 ]
1.55 [ 41.9 ]
1.65 [ 46.9 ]
1.85 [ 47.1 ]
2.05 [ 52.1 ]
2.15 [ 54.6 ]
2.35 [ 59.7 ]
2.85 [ 72.4 ]
3.35 [ 85.1 ]
3.55 [ 90.2 ]
Polarizing
Notches Provided
B or C (See Note 1)
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
4600 Series
0.71 [ 18.0 ]
0.91 [ 23.1 ]
1.01 [ 25.7 ]
1.21 [ 30.7 ]
1.41 [ 35.8 ]
1.51 [ 38.4 ]
1.71 [ 43.4 ]
1.91 [ 48.5 ]
2.01 [ 51.1 ]
2.21 [ 56.1 ]
2.71 [ 68.8 ]
3.21 [ 81.5 ]
3.41 [ 86.6 ]
Table 2
1.20 [ 30.5 ]
1.40 [ 35.6 ]
1.50 [ 38.1 ]
1.70 [ 43.2 ]
1.90 [ 48.3 ]
2.00 [ 50.8 ]
2.20 [ 55.9 ]
2.40 [ 61.0 ]
2.50 [ 63.5 ]
2.70 [ 68.6 ]
3.20 [ 81.3 ]
3.70 [ 94.0 ]
3.90 [ 99.1 ]
Ejector/Latch
Option
Short
Long
Universal
Part
Number
3505-16
3505-17
3505-21
F
.335 [ 8.51 ]
.484 [ 12.29 ]
.484 [ 12.29 ]
G
Dimensions
H
I
.41 [ 10.4 ]
.56 [ 14.2 ]
.56 [ 14.2 ]
.726 [ 18.44 ]
.875 [ 22.23 ]
.809 [ 20.55 ]
0.92 [ 23.4 ]
1.07 [ 27.2 ]
1.01 [ 25.65 ]
.24
[ 6.1 ]
Breakaway Tab
E
3518
.09
[ 2.3 ]
.34 Ref
[ 8.6 ]
.15
[ 3.8 ]
.02
[ 0.5 ]
.27
[ 6.9 ]
.04
[ 1.0 ]
(See Note)
3M Part No 3518
Polarizing Key
(Order Separately)
Material: Gray Glass Filled Polyester
Ejector/Latch
Material: Gray Glass Filled Polyester
Strain Relief
Material .012" [ 0.30 ] Thick
Stainless Steel
.200
[ 5.08 ]
.100
[ 2.54 ]
.200
[ 5.08 ]
.177
[ 4.50 ]
F
G
.043
[ 1.09 ]
.115
[ 2.92 ]
.043
[ 1.09 ]
.115
[ 2.92 ]
3505-21
3505-16
3505-17
.162
[ 4.11 ]
Notes:
The distance from the strain relief to the connector is equal to .04 [ 1.0 ] plus the cable thickness.
TS-0086-C
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Plug
.100" × .100" Connector for .050" Pitch Cable
Table 3
Contact
Quantity
10
14
16
20
24
26
30
34
36
40
50
60
64
3M Part Number
Series
4610
4614
4616
4620
4624
4626
4630
4634
4636
4640
4650
4660
4664
Dimension A
1.200 [ 30.48 ]
1.400 [ 35.56 ]
1.500 [ 38.10 ]
1.700 [ 43.18 ]
1.900 [ 48.26 ]
2.000 [ 50.80 ]
2.200 [ 55.88 ]
2.400 [ 60.96 ]
2.500 [ 63.50 ]
2.700 [ 68.58 ]
3.200 [ 81.28 ]
3.700 [ 93.98 ]
3.900 [ 99.06 ]
Dimension B
0.945 [ 24.00 ]
1.145 [ 29.08 ]
1.245 [ 31.62 ]
1.445 [ 36.70 ]
1.645 [ 41.78 ]
1.745 [ 44.32 ]
1.945 [ 49.40 ]
2.145 [ 54.48 ]
2.245 [ 57.02 ]
2.445 [ 62.10 ]
2.945 [ 74.80 ]
3.445 [ 87.50 ]
3.645 [ 92.58 ]
.400 Min
[ 10.16 ]
R .018 Max
[ 0.46 ]
4600 Series
B
A
.125
[ 3.18 ]
(See Note 1)
.370
[ 9.40 ]
(See Note 3)
.170
[ 4.32 ]
.450 Min
[ 11.43 ]
Polarizing
Tabs
This Side
Rear Mount Panel Cutout
Notes:
1. Accepts #4 pan head machine screw.
2. For a rear mount plug connector with Ejector/Latches the recommended maximum panel thickness is .125 [ 3.18 ].
3. Without polarizing tabs .340 [ 8.64 ].
TS-0086-C
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
