MCR100JZHFR130 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The resistor> MCR100JZHFR130

MCR100JZHFR130: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 0.13ohm, 200V, 1% +/-Tol, 600ppm/Cel, Surface Mount, 2512, CHIP; CategoryThe resistor; File Size69KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MCR100JZHFR130 Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 0.13ohm, 200V, 1% +/-Tol, 600ppm/Cel, Surface Mount, 2512, CHIP

MCR100JZHFR130 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	, 2512
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
JESD-609 code	e3
Manufacturer's serial number	MCR100
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	0.13 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	600 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

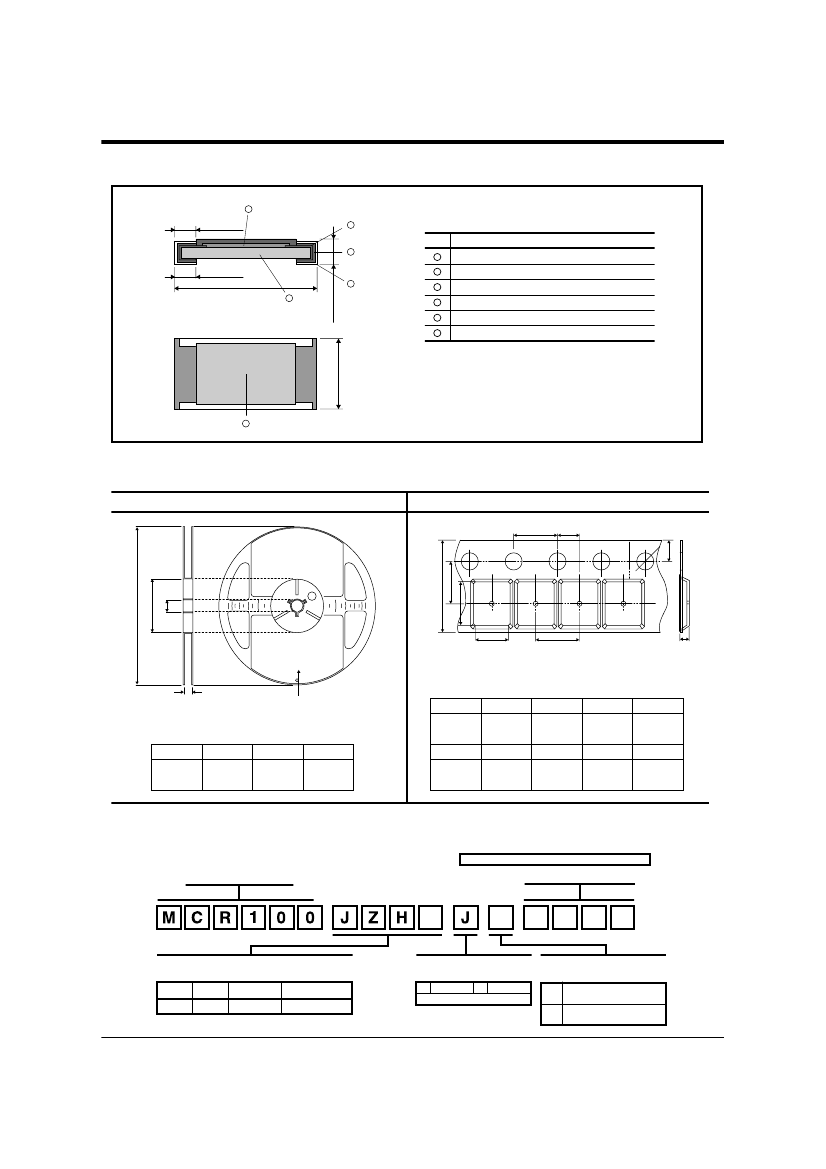

MCR100

Resistors

Thick film rectangular

MCR100

(6432 size : 1W)

Features

1) Made of same material as the general purpose chip resistors (MCR10 / 18).

2) Highly reliable chip resistor

Ruthenium oxide dielectric offers superior resistance to the elements.

3) Electrodes not corroded by soldering

Suitable for re-flow soldering.

4) ROHM resistors have approved ISO-9001 certification.

Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with

the product before using or ordering it.

Ratings

Item

Rated power

Conditions

Power must be derated according to the power derating curve in

Figure 1 when ambient temperature exceeds 70°C.

100

Specifications

1W at 70°C

POWER LOAD (%)

−55

100

125

AMBIENT TEMPERATURE (°C)

Fig.1

Rated voltage

The voltage rating is calculated by the following equation. If the value

obtained exceeds the limiting element voltage, the voltage rating is

equal to the maximum operating voltage.

E: Rated voltage (V)

P: Rated power (W)

E= P

R: Nominal resistance (Ω)

See Table 1.

Limiting element voltage

200V

Nominal resistance

Operating temperature

−55°C~+125°C

1/5

MCR100JZHFR130 Related Products

	MCR100JZHFR130	MCR100JZHFR180	MCR100JZHF1R00	MCR100JZHFR750	MCR100JZHF2R40	MCR100JZHJR68	MCR100JZHJR56	MCR100JZHJR22
Description	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.13ohm, 200V, 1% +/-Tol, 600ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.18ohm, 200V, 1% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 1ohm, 200V, 1% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.75ohm, 200V, 1% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 2.4ohm, 200V, 1% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.68ohm, 200V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.56ohm, 200V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP	Fixed Resistor, Metal Glaze/thick Film, 1W, 0.22ohm, 200V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 2512, CHIP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 2512	CHIP	CHIP	CHIP	CHIP	CHIP	, 2512	CHIP
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	MCR100	MCR100	MCR100	MCR100	MCR100	MCR100	MCR100	MCR100
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	0.13 Ω	0.18 Ω	1 Ω	0.75 Ω	2.4 Ω	0.68 Ω	0.56 Ω	0.22 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	2512	2512	2512	2512	2512	2512	2512	2512
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	600 ppm/°C	250 ppm/°C	250 ppm/°C	250 ppm/°C	250 ppm/°C	250 ppm/°C	250 ppm/°C	250 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	1%	1%	1%	1%	1%	5%	5%	5%
Operating Voltage	200 V	200 V	200 V	200 V	200 V	200 V	200 V	200 V
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
