TECHNICAL DATA
IW4060B
14-Stage Ripple-Carry Binary
Counter/Divider and Oscillator
High-Voltage Silicon-Gate CMOS
The IW4060B consists of an oscillator section and 14 ripple-carry
binary counter stages. The oscillator configuration allows design of
either RC or crystal oscillator circuits. A RESET input is provided
which resets the counter to the all-Q’s state and disables the oscillator.
A high level on the RESET line accomplishes the reset function. All
counter stages are master-slave flip-flops. The state of the counter is
advanced one step in binary order on the negative transition of OSC In
(and OSC Out). Schmitt trigger action on the input-pulse line permits
unlimited input-pulse rise and fall times.
•
Operating Voltage Range: 3.0 to 18 V
•
Maximum input current of 1
µA
at 18 V over full package-
temperature range; 100 nA at 18 V and 25°C
•
Noise margin (over full package temperature range):
1.0 V min @ 5.0 V supply
2.0 V min @ 10.0 V supply
2.5 V min @ 15.0 V supply
ORDERING INFORMATION
IW4060BN Plastic
IW4060BD SOIC
T
A
= -55° to 125° C for all
packages
PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Inputs
Osc In
Reset
L
L
PIN 16=V
CC
PIN 8= GND
X
H
Outputs
Q
No change
Advance to
next state
All Outputs
are low
X = don’t care
115
IW4060B
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
P
D
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Power Dissipation per Output Transistor
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +20
-0.5 to V
CC
+0.5
-0.5 to V
CC
+0.5
±10
750
500
100
-65 to +150
260
Unit
V
V
V
mA
mW
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
A
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Operating Temperature, All Package Types
Min
3.0
0
-55
Max
18
V
CC
+125
Unit
V
V
°C
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
).
Unused outputs must be left open.
116
IW4060B
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
V
IH
Parameter
Minimum High-Level
Input Voltage
Test Conditions
V
OUT
= 0.5 V or V
CC
- 0.5V
V
OUT
= 1.0 V or V
CC
- 1.0 V
V
OUT
= 1.5 V V
CC
- 1.5V
V
5.0
10
15
5.0
10
15
5.0
10
15
5.0
10
15
18
5.0
10
15
20
5.0
10
15
5.0
5.0
10
15
Guaranteed Limit
≥-55°C
3.5
7
11
1.5
3
4
4.95
9.95
14.95
0.05
0.05
0.05
±0.1
5
10
20
100
0.64
1.6
4.2
-2
-0.64
-1.6
-4.2
25°C
3.5
7
11
1.5
3
4
4.95
9.95
14.95
0.05
0.05
0.05
±0.1
5
10
20
100
0.51
1.3
3.4
-1.6
-0.51
-1.3
-3.4
≤125
°C
3.5
7
11
1.5
3
4
4.95
9.95
14.95
0.05
0.05
0.05
±1.0
150
300
600
3000
0.36
0.9
2.4
mA
-1.15
-0.36
-0.9
-2.4
Unit
V
V
IL
Maximum Low -Level V
OUT
= 0.5 V or V
CC
- 0.5V
Input Voltage
V
OUT
= 1.0 V or V
CC
- 1.0 V
V
OUT
= 1.5 V V
CC
- 1.5V
Minimum High-Level
Output Voltage
Maximum Low-Level
Output Voltage
Maximum Input
Leakage Current
Maximum Quiescent
Supply Current
(per Package)
V
IN
=GND or V
CC
V
V
OH
V
V
OL
V
IN
=GND or V
CC
V
I
IN
I
CC
V
IN
= GND or V
CC
V
IN
= GND or V
CC
µA
µA
I
OL
Minimum Output Low V
IN
= GND or V
CC
(Sink) Current
U
OL
=0.4 V
U
OL
=0.5 V
U
OL
=1.5 V
Minimum Output
V
IN
= GND or V
CC
High (Source) Current U
OH
=2.5 V
U
OH
=4.6 V
U
OH
=9.5 V
U
OH
=13.5 V
mA
I
OH
117
IW4060B
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF, R
L
=200kΩ, Input t
r
=t
f
=20 ns)
V
CC
Symbol
f
max
Parameter
Maximum Clock Frequency (50% Duty Cycle)
(Figure 1)
Maximum Propagation Delay, Clock to Q4
(Figure 1)
Maximum Propagation Delay, Q
n
to Q
n+1
(Figure 2)
Maximum Propagation Delay, Reset to Any Q
(Figure 3)
Maximum Output Transition Time, Any Output
(Figure 1)
Maximum Input Capacitance
V
5.0
10
15
5.0
10
15
5.0
10
15
5.0
10
15
5.0
10
15
-
3.5
8
12
740
300
200
200
100
80
360
160
100
200
100
80
Guaranteed Limit
≥-55°C
25°C
3.5
8
12
740
300
200
200
100
80
360
160
100
200
100
80
7.5
≤125°C
1.75
4
6
1480
600
400
400
200
160
720
320
200
400
200
160
Unit
MHz
t
PHL
, t
PLH
ns
t
PHL
, t
PLH
ns
t
PHL
ns
t
THL
, t
TLH
ns
C
IN
pF
TIMING REQUIREMENTS
(C
L
=50pF, R
L
=200 kΩ, Input t
r
=t
f
=20 ns)
V
CC
Symbol
t
w
Parameter
Minimum Pulse Width, Clock (Figure 1)
V
5.0
10
15
5.0
10
15
5.0
10
15
100
40
30
120
60
40
Guaranteed Limit
≥-55°C
25°C
100
40
30
120
60
40
Unlimited
≤125°C
200
80
60
240
120
80
Unit
ns
t
w
Minimum Pulse Width, Reset (Figure 3)
ns
t
f
, t
r
Maximum Input Rise and Fall Times (Figure 1)
ns
118
IW4060B

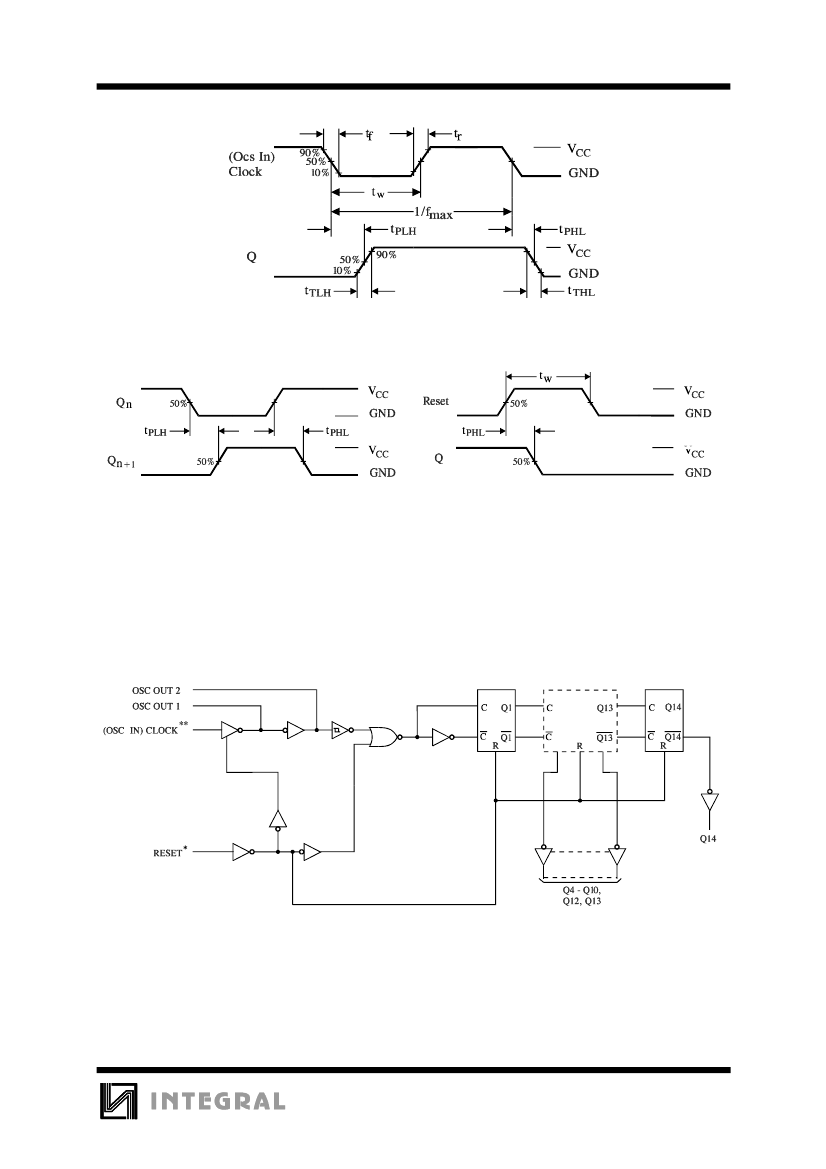

Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
Figure 3. Switching Waveforms
EXPANDED LOGIC DIAGRAM
*
R = HIGH DOMINATES (RESETS ALL STAGES)
** COUNTER ADVANCES ONE BINARY COUNT ON EACH NEGATIVE - GOING TRANSITION OF
CLOCK (AND OSC OUT)
119
