Flush-type connector - SACC-CI-M12FSK-4PE-L180 THR T - 1420821
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Flush-type connector, Power, 5-position, Socket, straight, K - Power, PCB mounting, THR solder connection
Your advantages
For compact devices: transmit high power in a confined space
Reduced mounting costs thanks to two-piece device connector
Packaging available for automated pick and place assembly
All common pin assignments and codings available
Easy device integration, thanks to mechanical port screw connections with threaded fastening
Additional gasket for the device when not plugged in
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626280660
60 pc
60 pc
Technical data
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 105 °C
-40 °C ... 105 °C (without mechanical actuation)
IP67 (correctly plugged in and locked)
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
16 A
11/21/2018 Page 1 / 4
Rated current at 40°C
https://www.phoenixcontact.com/pi/products/1420821
Flush-type connector - SACC-CI-M12FSK-4PE-L180 THR T - 1420821
Technical data
General
Rated voltage
Rated surge voltage
Number of positions
Coding
Standards/regulations
Signal type/category
Overvoltage category
Degree of pollution
Connection method
Insertion/withdrawal cycles
Mounting type
Type of packaging
Delivery state
630 V
6 kV
5
K - Power
M12 connector IEC 61076-2-111 In line with
Power
III
3
THR solder connection
> 100
PCB mounting
Tray
with assembly pad
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Sealing material
V0
CuZn
Au
PA4T
FKM
Cable
Standards/specifications
M12 connector IEC 61076-2-111 In line with
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-111
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

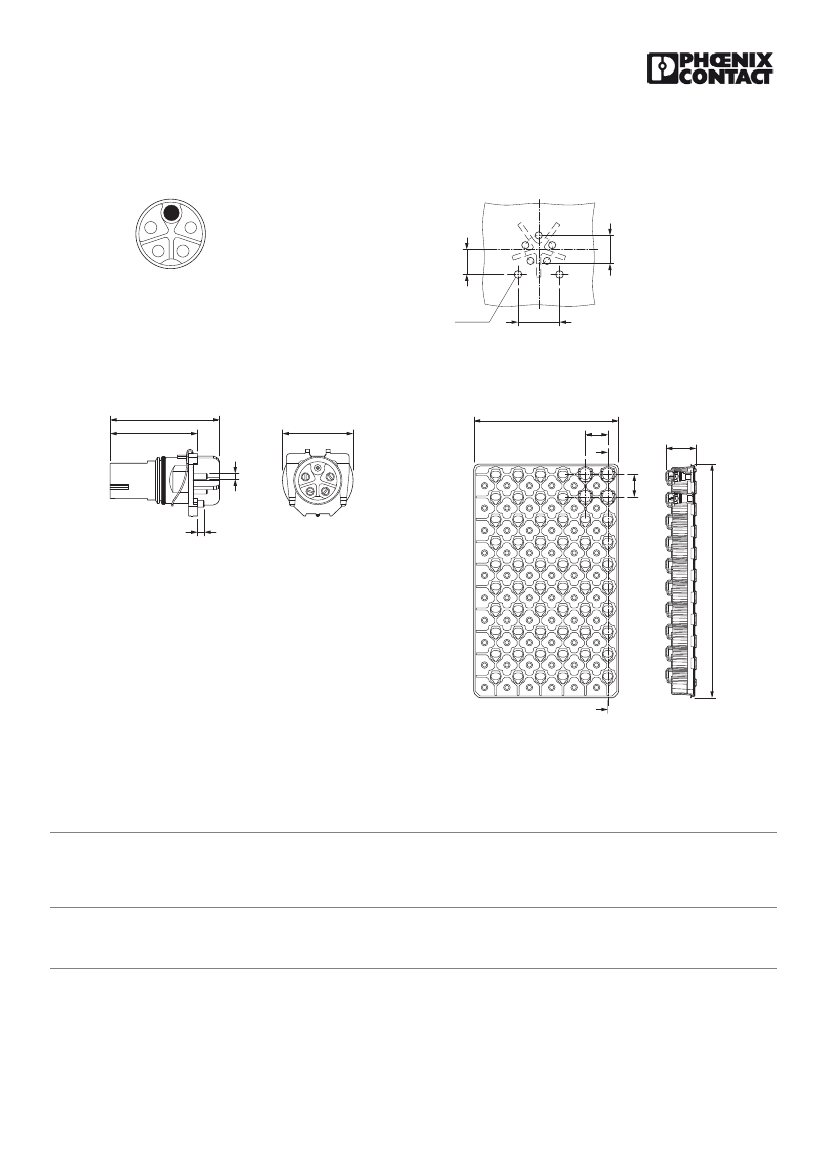

Drawings
11/21/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1420821
Flush-type connector - SACC-CI-M12FSK-4PE-L180 THR T - 1420821
Schematic diagram
5,2
±
0,02
PE
4
3
2
1
Drilling diagram
Pin assignment of M12 socket, 5-pos., K-coded,
socket side view
Ø1,6⁺⁰⁰³
8,65
±
0,02
Soldering pad geometry
Dimensional drawing
24,4
Dimensional drawing
155
15,8
Ø1,3
±
0,05
19,5
24
A
31
Ø5,88
1,5
M12 flush-type connector
250
A
THR tray packaging
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approval details
24
11/21/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1420821
Flush-type connector - SACC-CI-M12FSK-4PE-L180 THR T - 1420821
Approvals
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E468743-20180113
600 V
16 A
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/21/2018 Page 4 / 4
