4606H-101-222F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 4606H-101-222F

Preview

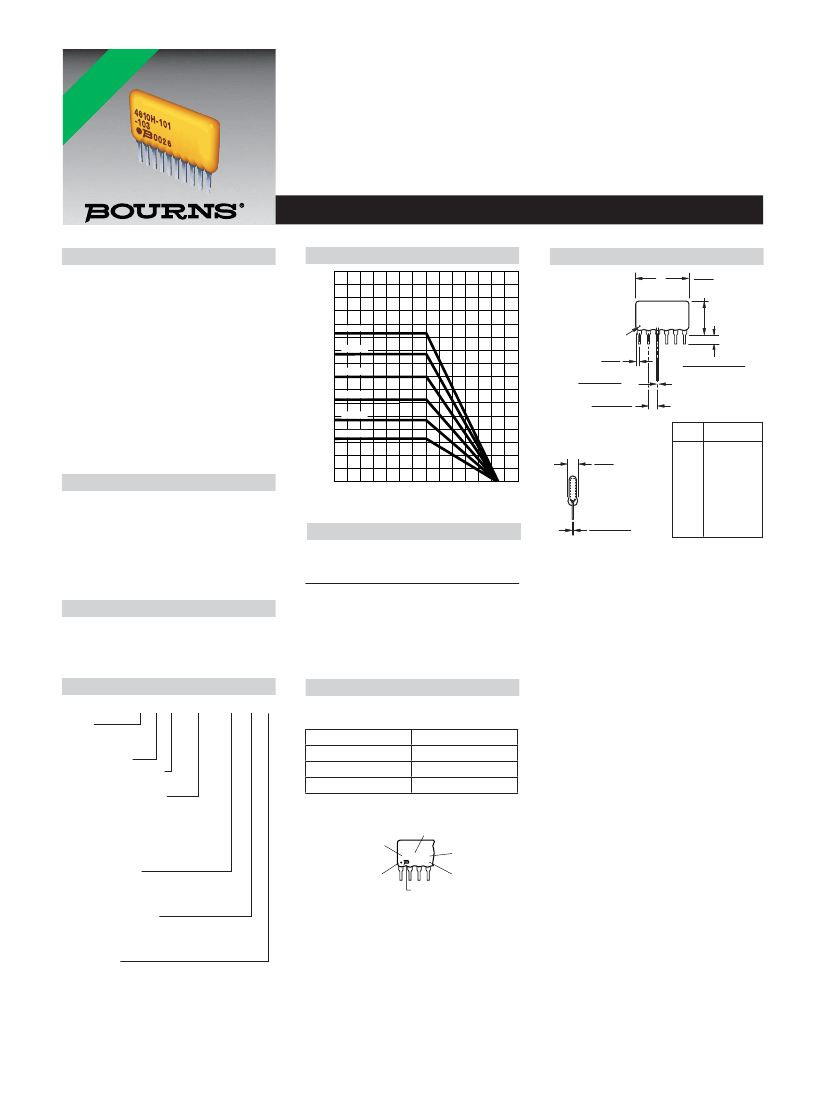

4606H-101-222F: DescriptionThick Film Conformal SIPs; File Size212KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet View All

4606H-101-222F Overview

Thick Film Conformal SIPs

Preview

Download Datasheet

View All

Features

■

RoHS compliant*

■

High proﬁle offers increased power

■

Recommended for rosin ﬂux and solvent

handling

■

Wide assortment of pin packages enhances

design ﬂexibility

■

Ammo-pak packaging available

clean or no clean ﬂux processes

■

Marking on contrasting background for

permanent identiﬁcation

4600H Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

....................10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 megohms ... ±100 ppm/°C

below 50

.................... ±250 ppm/°C

above 2.2 megohms ..... ±250 ppm/°C

TCR Tracking ........................ 50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Operating Temperature

............................... -55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202 ........ΔR MAX.

Short Time Overload ................ ±0.25 %

Load Life................................... ±1.00 %

Moisture Resistance ................. ±0.50 %

Resistance to Soldering Heat

.............................................. ±0.50 %

Terminal Strength ..................... ±0.25 %

Thermal Shock ......................... ±0.25 %

Physical Characteristics

Flammability ........Conforms to UL94V-0

Body Material ...................... Epoxy resin

Standard Packaging

..................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

8.89

MAX.

(.350)

3.50

3.00

2.50

2.00

1.50

4606H

1.00

.50

4604H

4614H

4612H

4610H

4608H

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.3 +0.5/-0.3

(.130 +.020/ -.012)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

Package Power Ratings (Watts)

Ambient

Temp.

Pkg.

70 °C

Pkg.

70 °C

4604H

0.80

4610H

2.00

4605H

1.00

4611H

2.20

4606H

1.20

4612H

2.40

4607H

1.40

4613H

2.60

4608H

1.60

4614H

2.80

4609H

1.80

Typical Part Marking

Represents total content. Layout may

vary.

Part Number

4606H-101-RC

4608H-102-RC

4610H-104-RC/RC

Part Number

6H-1-RC

8H-2-RC

10H-4-RC/RC

.254

.050

TYP.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

46 06 H - 101 - 222 __ LF

Model

(46 = Conformal

SIP)

Number of Pins

Physical Conﬁguration

(H = Thick Film High Proﬁle)

Electrical Conﬁguration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical conﬁgurations EXCEPT 104 & AP4:

LF = Sn/Ag/Cu-plated (RoHS compliant)

• ONLY electrical conﬁgurations 104 & AP4:

L = Sn/Ag/Cu-plated (RoHS compliant)

Consult factory for other available options.

**Available for packages with 10 pins or less.

RC = ohmic value, 3-digit resistance

code.

NUMBER OF PINS

CIRCUIT

6H-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
