Momentary Switches
35A NORMALLY OFF PUSHBUTTON SWITCHES
9095
9245 with rubber cap
Description
Normally Off switches (Normally Open) are push to operate,
spring return to Off, and have cylindrical diecast body with 5/8”-32
mounting stem.
Specifications
Housing
Circuitry
Rating
Contacts
Button & facenut
Cylindrical diecast body
Off - On, Normally Off. On with button depressed,
spring return to Off.
35A at 12V DC, 20A at 24V DC
Silver
Chrome-plated except where noted

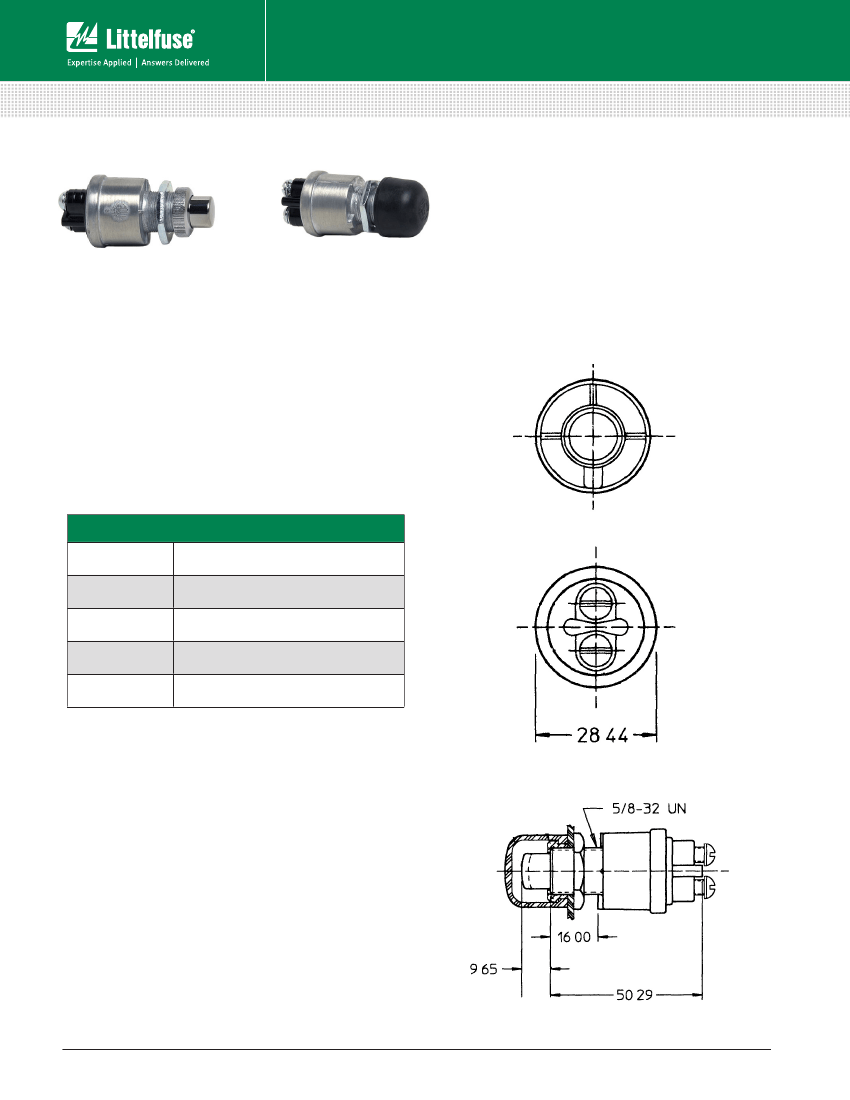

9245 dimensions
www.littelfuse.com
© 2013 Littelfuse Commercial Vehicle Products
Momentary Switches
35A NORMALLY OFF PUSHBUTTON SWITCHES
Ordering information
Part No.
9023
9023-BX
9023-09
9095
9095-BX
9155
9216
9216-BX
9216-03
9216-03-BX
9231
9231-BX
9238
9238-BX
9238-01
9245
9245-BP
9245-BX
90000-01
90011
90030
90030-BP
90030-BX
90030-01
90030-01-BX
90030-04
90036-02
90036-02-BX
SPST Normally Off
SPST Normally Off
SPST Normally Off
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
2 screws
2 screws
2 blades fit Delphi 2973407
With plastic button and screw-on brown oil-resistant
cap 83280-05
With plastic button and red screw-on cap 83280-02
SPST Normally Off
5/8"-32 21/32"L (16.7mm)
2 screws
With plastic button and screw-on cap 83280-03
SPST Normally Off
SPST Normally Off
5/8"-32 21/32"L (16.7mm)
5/8"-32 5/8"L (15.9mm)
2 screws
2 male buttons accept
Delphi 2962679
SPST Normally Off
5/8"-32 21/32"L (16.7mm)
2 screws
Type
SPST Normally Off
Mounting
5/8"-32 0.87”L (22.1mm)
Terminals
2 screws
Notes
15A resistive, 10A inductive at 12V DC, 8A resistive,
5A inductive at 24V DC
15A resistive, 10A inductive at 12V DC, 8A resistive,
5A inductive at 24V DC. With screw-on black cap
83280-03
SPST Normally Off
5/8"-32 0.87”L (22.1mm)
2 screws
SPST Normally Off
SPST Normally Off
SPST Normally Off
SPST Normally Off
SPST Normally Off
SPST Normally Off
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
5/8"-32 21/32"L (16.7mm)
5/8"-32 0.87”L (22.1mm)
2 screws
2 screws
2 screws
2 screws
2 screws
2 blades
With large button
O-ring seal in mounting stem
O-ring seal in the mounting stem, and screw-on black
rubber cap (83280-03)
With recessed facenut to protect button.
15A resistive, 10A inductive at 12V DC, 8A resistive,
5A inductive at 24V DC
15A resistive, 10A inductive at 12V DC, 8A resistive,
5A inductive at 24V DC. With black rubber screw-on
cap 83280-03
O-ring seal in the mounting stem, and snap-on black
rubber cap (407-03)
With recessed facenut to protect button. O-ring seal
Black plastic button
SPST Normally Off
5/8"-32 0.87”L (22.1mm)
2 blades
Items in italics are available by Special Order only
Part numbers without suffix are supplied bulk; numbers with BX suffix are individually boxed; numbers with BP suffix are in retail pack

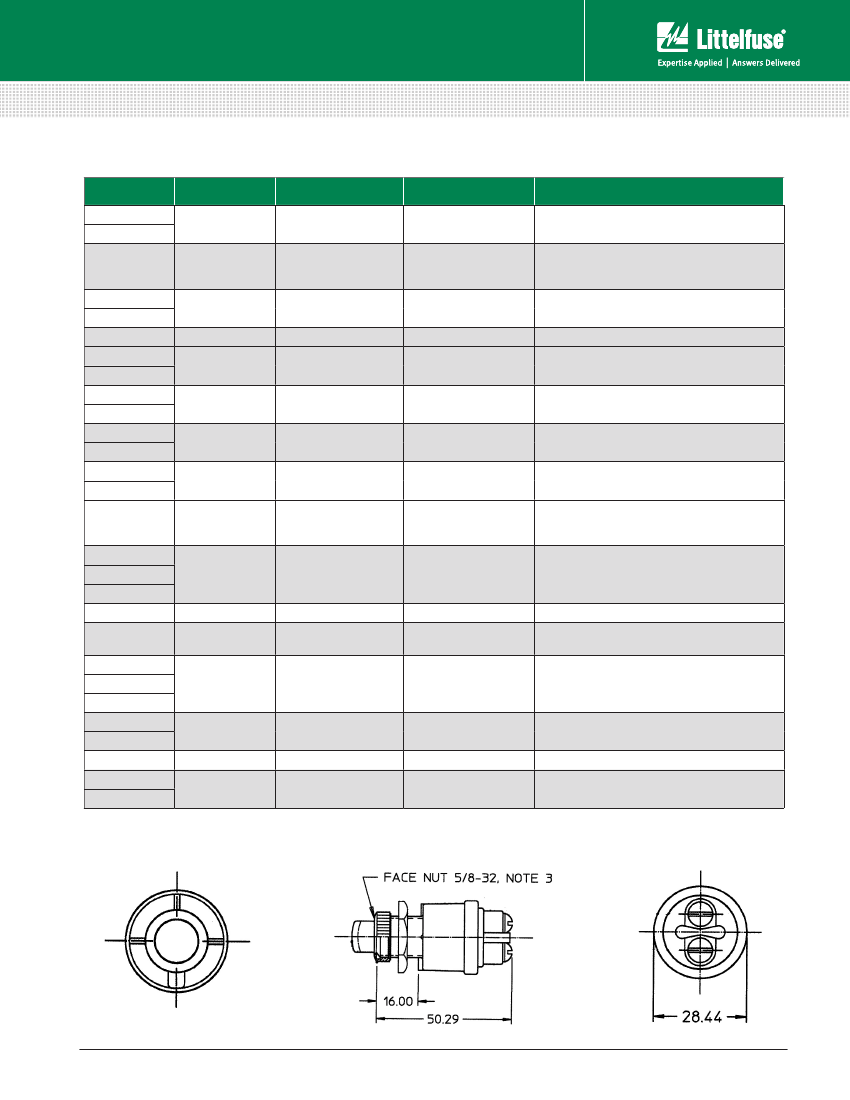

9095 dimensions
