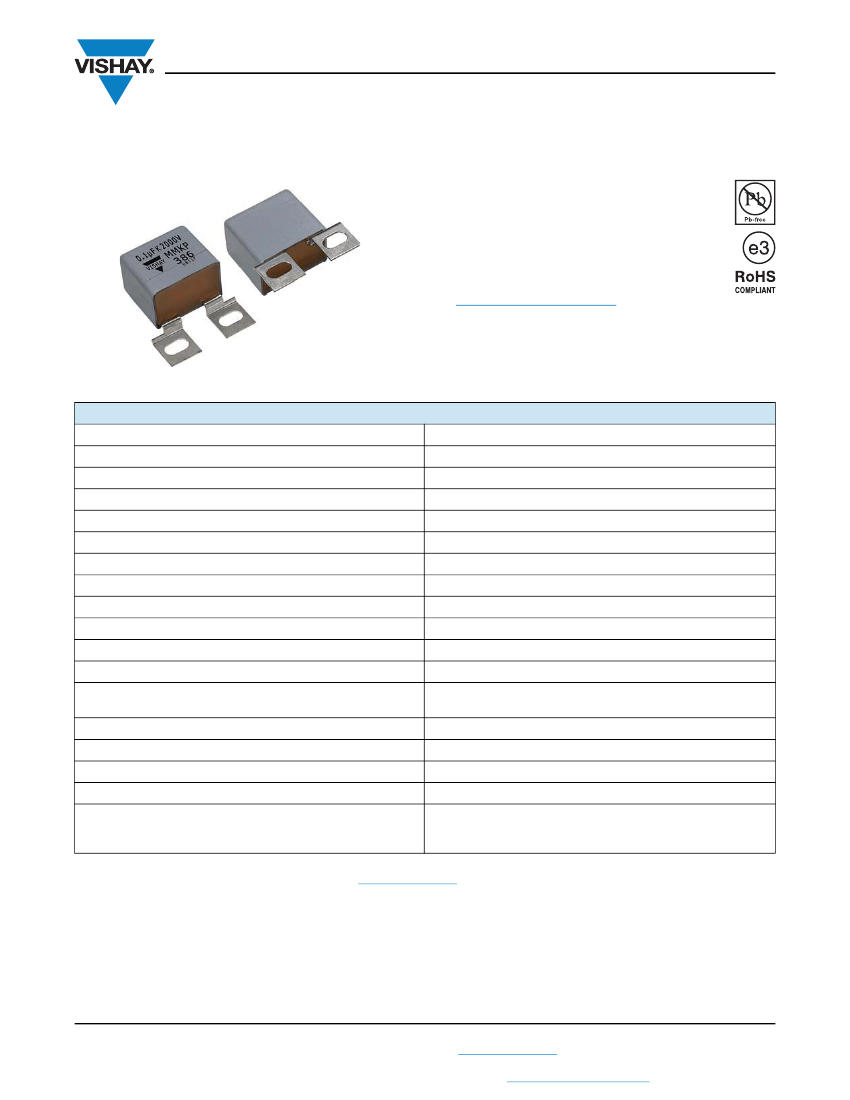

MMKP 386
www.vishay.com
Vishay BCcomponents
Double Metallized Polypropylene Film Capacitor
Radial Snubber Type
FEATURES
• Low inductive construction
• Low loss dielectric
• Double sided metallized for high pulse ratings
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Industrial motor control circuits, mounted directly on the
IGBT or GTO.
QUICK REFERENCE DATA
Capacitance range (E12 series)
Capacitance tolerance
Rated (DC) voltage
Climatic testing class acc. to IEC 60068-1
Rated (DC) temperature
Rated (AC) temperature
Maximum application temperature
Rated (AC) voltage
Rated peak-to-peak voltage
Reference standards
Dielectric
Electrodes
Construction
Encapsulation
Tabs
Performance grade
Stability grade
Marking
0.1 μF to 4.7 μF
± 5 %; ± 10 %
630 V, 850 V, 1000 V, 1250 V, 1400 V, 1600 V, 2000 V, 2500 V
50/085/56
85 °C
85 °C
85 °C
220 V, 300 V, 350 V, 425 V, 500 V, 550 V, 700 V, 900 V
630 V, 850 V, 1000 V, 1250 V, 1400 V, 1600 V, 2000 V, 2500 V
IEC 60384-17
Polypropylene film
Double metallized
Mono construction for 630 V version
Internal serial construction from 850 V
DC
on
Flame retardant plastic case (UL-class 94 V-0) and epoxy resin
Tinned coated copper
Grade 1 (long life)
Grade 2
C-value, tolerance; rated voltage; code for dielectrical material;
code for factory of origin; manufacturer’s type; manufacturer;
year and week of manufacture
Note
• For more detailed data and test requirements contact
dc-film@vishay.com
Revision: 19-Mar-13
Document Number: 28163
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP 386
www.vishay.com
COMPOSITION OF CATALOG NUMBER
TYPE
386
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.1
1
Example:
104
=
10 x 10
=
100 nF
10
100
2
3
4
5
Vishay BCcomponents
BFC2
2222
(1)
(1)
Old
386
386
XX XX X
XX XX X
PREFERRED TYPES
C-TOL.
± 10 %
± 10 %
630 V
20
22
850 V
00
02
1000 V 1250 V 1400 V 1600 V 2000 V 2500 V
30
32
80
82
ON REQUEST
40
42
50
52
60
62
70
72
ordering code
MOUNTING
CONFIGURATION
TYPE
PACKAGING
Horizontally mounted
386
Loose in box
Vertically mounted
Horizontally mounted
386
Loose in box
Vertically mounted
±5%
±5%
21
23
01
03
31
33
81
83
41
43
51
53
61
63
71
73
SPECIFIC REFERENCE DATA
DESCRIPTION
Capacitance range
Maximum operating DC voltage
Maximum operating AC voltage
Tangent of loss angle
at 1 kHz
at 10 kHz
at 100 kHz
R between terminals at 500 V;
1 min
R between terminals and case;
500 V; 1 min
Withstanding (DC) voltage
(cut off current 10 mA);
rise time 100 V/s
Withstanding (DC) voltage
between terminals and case
Maximum dU/dt (V/μs)
w x h x l = 22.0 x 30.5 x 33.5
w x h x l = 22.0 x 38.0 x 44.0
w x h x l = 30.0 x 46.0 x 44.0
ESR at 100 kHz
ESL
Temperature range
630 V
250
100
75
850 V
650
350
260
1000 V
1000
500
350
1000 V;
1 min
1360 V;
1 min
1600 V;
1 min
VALUE
630 V
0.33 μF
to 4.7 μF
630 V
220 V
850 V
0.22 μF
to 2.7 μF
850 V
300 V
0.47 μF
< 5 x 10
-4
< 10 x 10
-4
< 12 x 10
-4
1000 V
0.33 μF
to 1.8 μF
1000 V
350 V
1250 V
0.15 μF
to 0.82 μF
1250 V
425 V
1400 V
0.1 μF
to 0.68 μF
1400 V
500 V
1600 V
0.1 μF
to 0.56 μF
1600 V
550 V
2000 V
0.1 μF
to 0.47 μF
2000 V
700 V
C > 1.0 F
< 10 x 10
-4
< 20 x 10
-4
2500 V
0.1 μF
to 0.27 μF
2500 V
900 V
0.56 μF
C
1.0 μF
< 5 x 10
-4
< 10 x 10
-4
< 25 x 10
-4
> 5000 M
> 30 000 M
2000 V;
1 min
2240 V;
1 min
2560 V;
1 min
3200 V;
1 min
4000 V;
1 min
2840 V; 1 min
1250 V
1500
750
550
6 m
Typical 15 nH
- 55 °C to + 85 °C
1400 V
2000
900
650
1600 V
2400
1000
750
2000 V
2500
1000
750
2500 V
5500
2000
1500
Revision: 19-Mar-13
Document Number: 28163
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP 386
www.vishay.com
Vishay BCcomponents
CATALOG NUMBER BFC2 386 XXXXX AND PACKAGING
MASS
(g)
C-TOL. = ± 10 %
DRAWING A
20334
20394
20474
20564
20684
20824
20105
20125
DRAWING B
20155
20185
20225
20275
20335
20395
20475
DRAWING A
00224
00274
00334
00394
00474
00564
00684
00824
DRAWING B
00105
00125
00155
00185
00225
00275
DRAWING A
30334
30394
30474
DRAWING B
30564
30684
30824
30105
30125
30155
30185
DRAWING A
80154
80184
80224
80274
DRAWING B
80334
80394
80474
80564
80684
80824
TRAY PACKAGING
SPQ
ELECTRICAL DATA AND ORDERING INFORMATION
U
RDC
(V)
CAP.
(μF)
DIMENSIONS
wxhxl
(mm)
630
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
0.33
0.39
0.47
22.0 x 30.5 x 33.5
39
38
38
37
37
36
35
35
60
58
56
54
86
83
80
39
39
38
38
37
37
36
35
61
59
58
91
88
85
36
35
34
60
59
57
55
88
84
80
37
35
34
33
59
58
57
89
85
82
56
22.0 x 38.0 x 44.0
42
30.0 x 46.0 x 44.0
36
22.0 x 30.5 x 33.5
56
850
22.0 x 38.0 x 44.0
42
30.0 x 46.0 x 44.0
36
22.0 x 30.5 x 33.5
56
1000
0.56
0.68
0.82
1.0
1.2
1.5
1.8
0.15
0.18
0.22
0.27
22.0 x 38.0 x 44.0
42
30.0 x 46.0 x 44.0
36
22.0 x 30.5 x 33.5
56
1250
0.33
0.39
0.47
0.56
0.68
0.82
22.0 x 38.0 x 44.0
42
30.0 x 46.0 x 44.0
36
Revision: 19-Mar-13
Document Number: 28163
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP 386
www.vishay.com
Vishay BCcomponents
CATALOG NUMBER BFC2 386 XXXXX AND PACKAGING
MASS
(g)
C-TOL. = ± 10 %
DRAWING A
37
40104
40124
40154
DRAWING B
40184
40224
40274
40334
40394
40474
40564
40684
DRAWING A
50104
50124
40154
DRAWING B
50184
50224
50274
50334
50394
50474
50564
DRAWING A
60104
60124
DRAWING B
60154
60184
60224
60274
60334
60394
60474
DRAWING B
70104
70124
70154
70184
70224
70274
36
42
36
42
36
42
56
36
42
56
TRAY PACKAGING
SPQ
ELECTRICAL DATA AND ORDERING INFORMATION
U
RDC
(V)
CAP.
(μF)
DIMENSIONS
wxhxl
(mm)
0.10
0.12
0.15
0.18
1400
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.10
0.12
0.15
2000
0.18
0.22
0.27
0.33
0.39
0.47
0.10
0.12
2500
0.15
0.18
0.22
0.27
30.0 x 46.0 x 44.0
22.0 x 38.0 x 44.0
30.0 x 46.0 x 44.0
22.0 x 38.0 x 44.0
30.0 x 46.0 x 44.0
22.0 x 38.0 x 44.0
22.0 x 30.5 x 33.5
30.0 x 46.0 x 44.0
22.0 x 38.0 x 44.0
22.0 x 30.5 x 33.5
36
35
61
59
57
56
89
85
82
79
37
36
35
61
59
58
57
90
87
84
36
35
61
59
58
57
89
86
84
60
59
57
55
87
83
1600
22.0 x 30.5 x 33.5
56
Note
• SPQ = Standard Packaging Quantity
Revision: 19-Mar-13
Document Number: 28163
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
