499-13-250-10-003000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 499-13-250-10-003000

499-13-250-10-003000: DescriptionCONN SPRING TARGET; CategoryThe connector The connector; File Size560KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

499-13-250-10-003000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	499-13-250-10-003000	-	-	View	Buy Now

499-13-250-10-003000 Overview

CONN SPRING TARGET

499-13-250-10-003000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	499
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

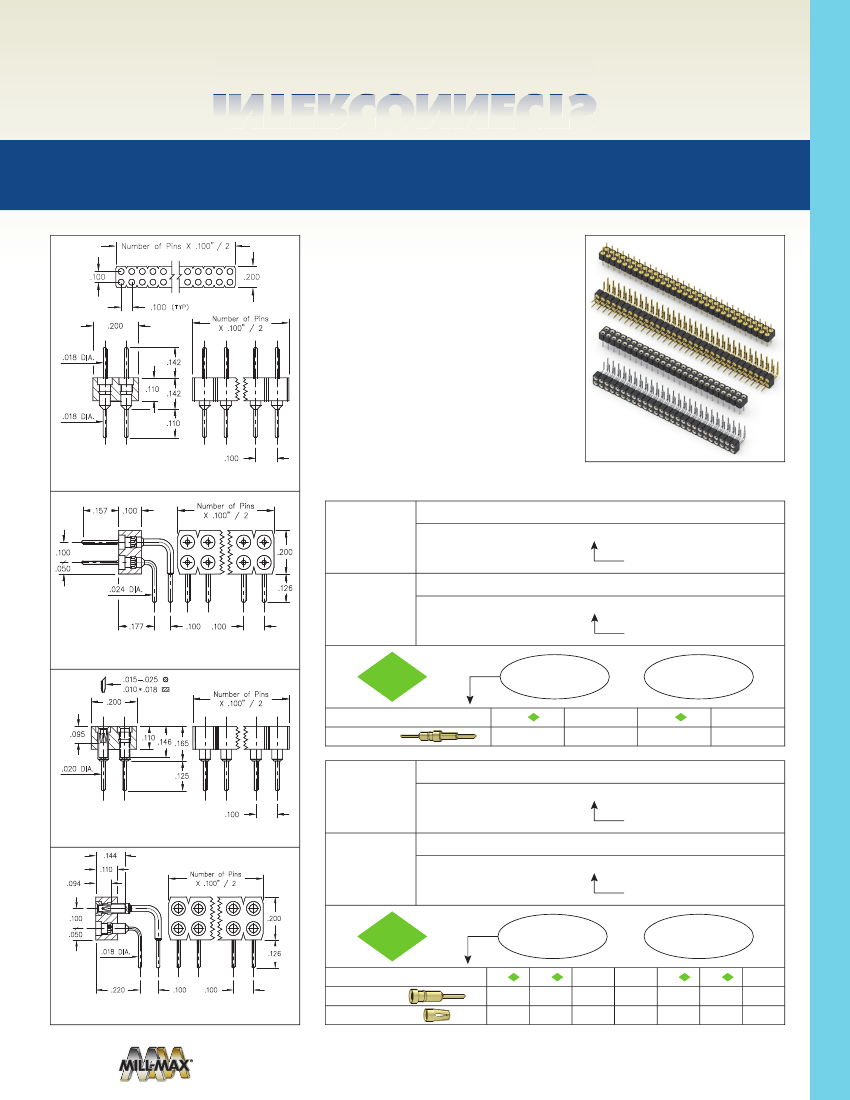

INTERCONNECTS

SERIES 410, 450, 499 • .100” GRID (.018” DIA.) PINS,

STRAIGHT AND RIGHT ANGLE • DOUBLE ROW STRIPS

•

Series 4XX are available with straight and right

angle solder tails

•

Series 450 & 499...009 use MM #3404 and

.200

Number of Pins

X .100" / 2

#5011/5113 pins. See pages 212 and 214 for

details

#1103/1602 receptacles. See pages 165, 166

and 167 for details

contact rated at 3 amps. See page 253 for

details

suitable for all soldering operations

•

Series 410 & 499...003 use MM #1001 and

.018 DIA.

.142

.110

.142

•

Receptacles use Hi-Rel, 4- nger #30 BeCu

.018 DIA.

.110

•

Insulators are high temperature thermoplastic,

.100

FIG. 1

.157

.100

Number of Pins

X .100" / 2

ORDERING INFORMATION

Series 450...006

.200

Straight Pin Header

450 XX 2_ _ 00 006000

04-64

.100

.050

.024 DIA.

FIG. 1

Series 499...009

Specify number of pins

.126

Right Angle Pin Header

499 10 2 _ _ 10 009000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.177

.100

Specify number of pins

RoHS - 2

FIG. 2

.015-.025

.010 * .018

.200

2011/65/EU

Number of Pins

X .100" / 2

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

.095

.110

.146 .165

200

µ”

Sn/Pb

200

µ”

Pin Plating

.020 DIA.

.125

Series 410...001

Solder Tail Socket

410 XX 2_ _ 41 001000

04-64

FIG. 3

.100

FIG. 3

.144

.110

.094

Number of Pins

X .100" / 2

Specify number of pins

Series 499...003

Right Angle Socket

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

.200

.100

.050

.018 DIA.

2011/65/EU

.126

RoHS - 2

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

.220

.100

µ”

200

µ”

FIG. 4

Sleeve (Pin)

Contact (Clip)

µ”

200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 47 | INTERCONNECTS

FIG. 4

499 XX 2_ _ 10 003000
