YFT-20-05-H-10-SB-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> YFT-20-05-H-10-SB-K-TR

YFT-20-05-H-10-SB-K-TR: DescriptionFLEX YZ .050 C.L. TERMINAL ASSEM; CategoryThe connector The connector; File Size347KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

YFT-20-05-H-10-SB-K-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	YFT-20-05-H-10-SB-K-TR	-	-	View	Buy Now

YFT-20-05-H-10-SB-K-TR Overview

FLEX YZ .050 C.L. TERMINAL ASSEM

YFT-20-05-H-10-SB-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	200

Preview

Download Datasheet

View All

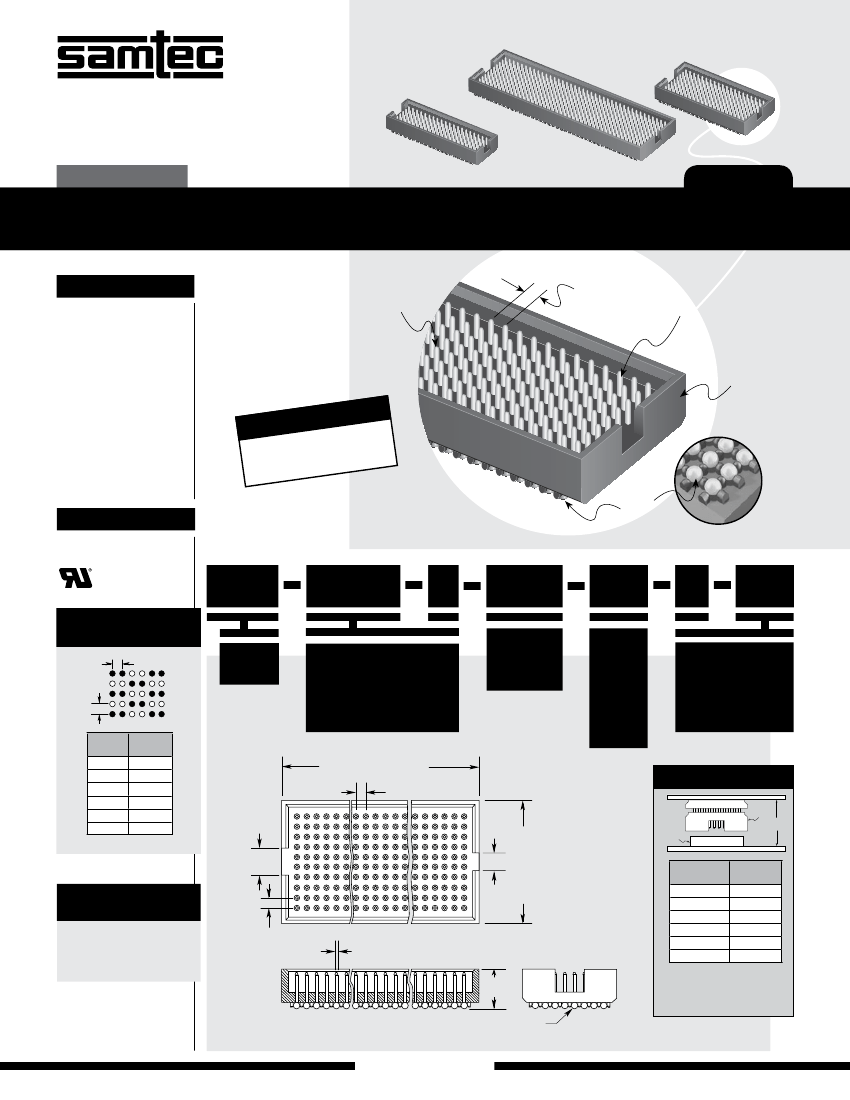

F-218 SUPPLEMENT

YFT–20–05–H–08–SB

(1.27 mm) .050"

YFT–20–05–H–05–SB

YFT–40–05–H–10–SB

YFT SERIES

LOW-PROFILE OPEN-PIN-FIELD TERMINAL

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?YFT

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Brass

Operating Temp Range:

-55 °C to +125 °C

Plating:

Au over 50 µ" (1.27 µm) Ni

Working Voltage:

275 VAC when mated with YFS

Mated Cycles:

200 with YFS

RoHS Compliant:

Lead-Free Solderable:

Mates with:

YFS

Five, eight

or ten rows

(1.27 mm)

.050"

pitch

Up to

500 pins

Low-profile

(5.00 mm) .197"

mated height

0 year m

Passed 2 gas testing.

flowing

c.com?Y

ww.samte

Go to: w

ESULTS

TEST R

ixed

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

Tin-Lead

Solder Balls

TYPE

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

DIFFERENTIAL

APPLICATION

(1.27) .050

(1.27)

.050

= Header

YFT

= –05, –08,

and –10 row

– 20

= 30 µ"

(0.76 µm)

Gold on post

–H

=Five Row

– 05

– 08

– 10

=Polyimide Film Pick

& Place Pad

–K

–30, –40, –50

= –10 row only

ARRAY

50x10

40x10

30x10

20x10

20x8

20x5

PAIR

COUNT

125

100

=Eight Row

=Tape & Reel

– TR

=Ten Row

(No. of pins/row x (1.27) .050)

+ (2.54) .100

(1.27) .050

500

YFT/YFW

MATED

HEIGHT

YFS

STACK HEIGHTS

(3.94)

.155

ALSO AVAILABLE

(MOQ Required)

• 30, 40 & 50 positions

in 5 & 8 rows

• 3 & 6 rows

Contact Samtec.

(1.27)

.050

491

No. of

rows

(2.67) (1.27)

.105 .050

(3.05)

.120

(0.41)

.016

DIA

(4.50)

.177

HEADER/

STACKER

YFT-05

YFW-07*

YFW-09*

YFW-12*

YFW-19*

YFW-25*

MATED

HEIGHT

(5.00) .197

(7.00) .276

(9.00) .354

(12.00) .472

(19.00) .748

(25.00) .984

Processing conditions

will affect mated height.

* See YFW Series for

specifications

(0.76)

.030

DIA

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

YFT-20-05-H-10-SB-K-TR Related Products

	YFT-20-05-H-10-SB-K-TR	YFT-20-05-H-05-SB	YFT-20-05-H-08-SB-K	YFT-30-05-H-05-SB	YFT-20-05-H-05-SB-K-TR	YFT-20-05-H-05-SB-K	YFT-40-05-H-05-SB-K
Description	FLEX YZ .050 C.L. TERMINAL ASSEM	Board Stacking Connector, 100 Contact(s), 5 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	conn header 160pos 1.27mm gold	FLEX YZ .050 C.L. TERMINAL ASSEM	Board Connector, 100 Contact(s), 5 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	FLEX YZ .050 C.L. TERMINAL ASSY	FLEX YZ .050 C.L. TERMINAL ASSEM
Connector type	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	Male pin array	BOARD STACKING CONNECTOR	Male pin array	Male pin array
Installation type	BOARD	BOARD	BOARD	surface mount	BOARD	surface mount	surface mount
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	-
Reach Compliance Code	compliant	not_compliant	compli	-	not_compliant	-	-
Factory Lead Time	2 weeks	4 weeks	3 weeks	-	5 weeks	-	-
Contact to complete cooperation	GOLD	GOLD (30) OVER NICKEL (50)	GOLD	-	GOLD	-	-
Contact completed and terminated	Gold (Au)	Tin/Lead (Sn/Pb)	Gold (Au)	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	-
Contact point gender	MALE	MALE	MALE	-	MALE	-	-
Contact material	BRASS	BRASS	BRASS	-	BRASS	-	-
DIN compliance	NO	NO	NO	-	NO	-	-
Filter function	NO	NO	NO	-	NO	-	-
IEC compliance	NO	NO	NO	-	NO	-	-
JESD-609 code	e4	e0	e4	-	e0	-	-
MIL compliance	NO	NO	NO	-	NO	-	-
Mixed contacts	NO	NO	NO	-	NO	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	-	-
Number of rows loaded	10	5	8	-	5	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	-	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	-	-
Total number of contacts	200	100	160	-	100	-	-
