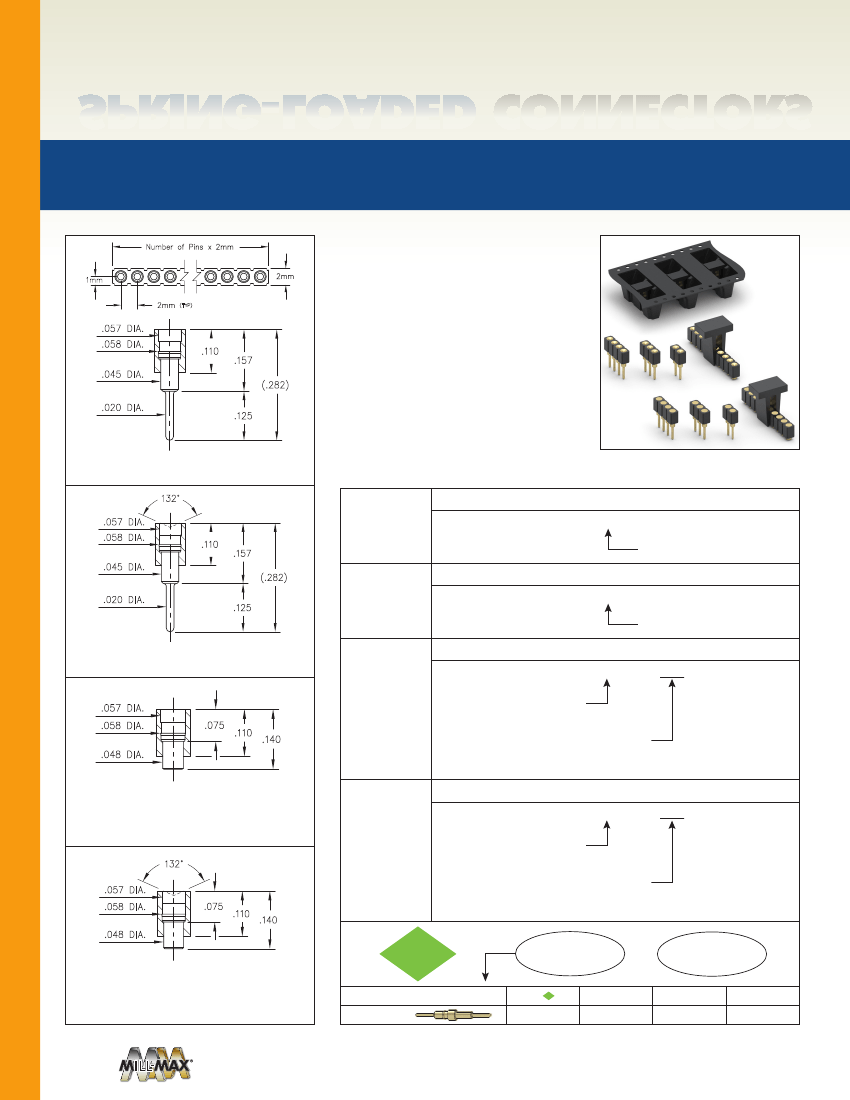

SERIES 830 • 2mm GRID FLAT & CONCAVE FACE TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 830 2mm Spring Target Connectors,

supplied in single row strips

• Target connectors provide an excellent gold-

plated conductive path back to the board-

mounted spring pin connector. Available in

both through-hole and SMT terminations

with the choice of either flat or concave face

contact surfaces. Concave face targets provide

additional surface area for mating with our

standard .032” diameter plungers

• Target connectors use MM #1949, #1950, #1951,

and #1952 pins. See page 223.1 for details

• Insulators are high temperature thermoplastic

.057 DIA.

.058 DIA.

.045 DIA.

.020 DIA.

.110

.157

(.282)

.125

FIG. 1

132°

.057 DIA.

.058 DIA.

.045 DIA.

.020 DIA.

.110

.157

(.282)

.125

ORDERING INFORMATION

Series 830...003

Flat face / Solder Tails

830-10-0_ _-10-003000

Specify number of pins

01-20

FIG. 1

Series 830...004

Concave face / Solder Tails

830-10-0_ _-10-004000

01-20

FIG. 2

Specify number of pins

FIG. 2

.057 DIA.

.058 DIA.

.048 DIA.

.075

.110

.140

Series 830...30-003

Specify number or pins

02-10

Flat face / Surface Mount

830-10-0_ _-30-003XXX

FIG. 3

PAGE 22.1 | SPRING-LOADED CONNECTORS

Tube packaged =

000

Tape & reel packaged =

191

400 parts per 13” reel

Coplanarity .005”. For Pin counts >10 positions, consult

Technical Support.

Series 830...30-004

Specify number or pins

02-10

Concave face / Surface Mount

FIG. 3

132°

.057 DIA.

.058 DIA.

.048 DIA.

.075

.110

.140

830-10-0_ _-30-004XXX

FIG. 4

Tube packaged =

000

Tape & reel packaged =

191

400 parts per 13” reel

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

μ”

Coplanarity .005”. For Pin counts >10 positions, consult

Technical Support.

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating
