BAS70T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> BAS70T

BAS70T: DescriptionRectifier Diode, Schottky, 1 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN; Categorydiode Rectifier diode; File Size239KB，2 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

BAS70T Overview

Rectifier Diode, Schottky, 1 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN

BAS70T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Parts packaging code	SOT
package instruction	ULTRA SMALL, SOT-523, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Features

•

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAS70T

BAS70-04T

BAS70-05T

BAS70-06T

150mWatt, 70Volt

Schottky Barrier Diode

Ultra-Small Surface Mount Package

Low turn on Voltage

Fast Switching

PN Junction Guard Ring for Transient andESD Protection

MCC

Part Number

BAS70T

BAS70-04T

BAS70-05T

BAS70-06T

Device

Marking

Configuration

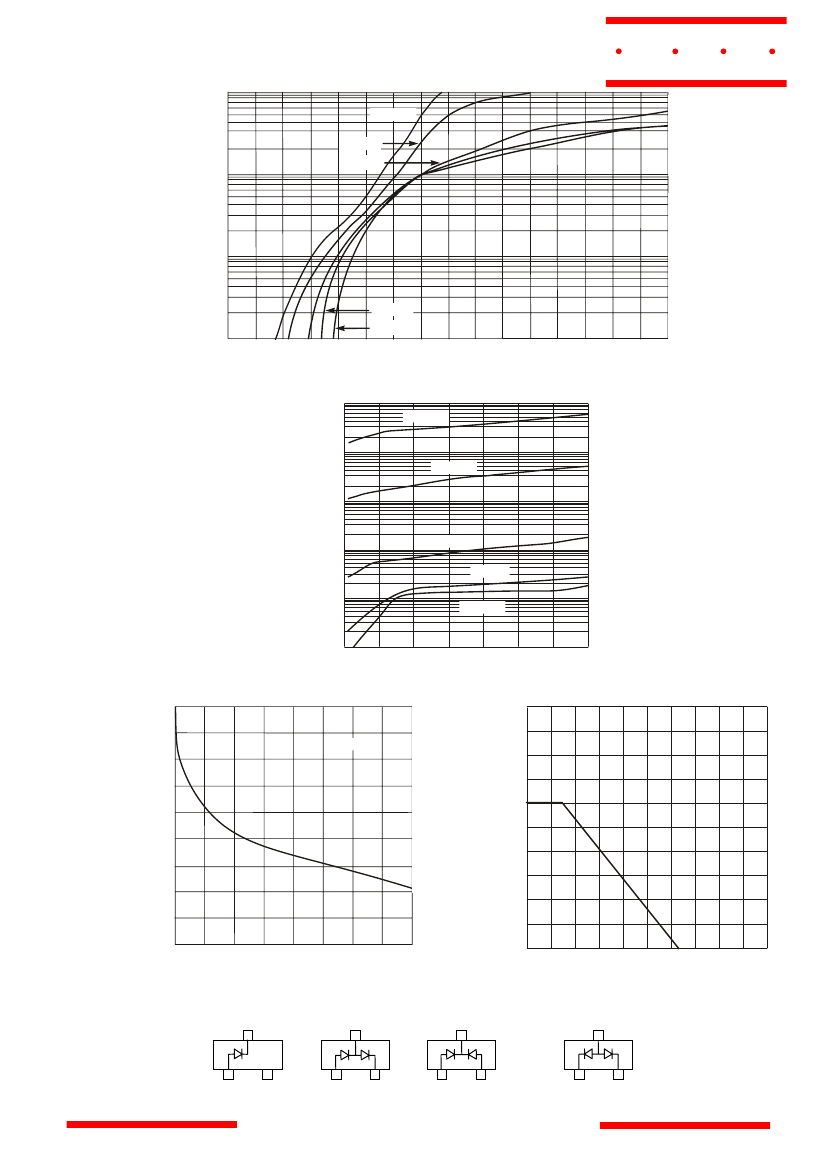

Figure 1

Figure 2

Figure 3

Figure 4

Type

Single

Dual

SOT-523

Maximum Ratings

DC Blocking Voltage

Forward Continuous Current

Non-Repetitive Peak Forward Current t<1s

Total Power Dissipation @ T

= 25°C

Storage Temperature Range

Junction Temperature

FSM

stg

70V

70mA

100mA

150mW

-55°C to 150°C

Electrical Characteristics @ 25°C Unless Otherwise Specified

Ratings

Forward Voltage

Reverse Current

Reverse Breakdown

Voltage

Total Capacitance

Reverse Recovery

Time

Symbol

(BR)

Max.

410mV

1000mV

100nA

>70V

2pF

5nS

Notes

=1mA

=15mA

= 50V

=10uA

Measured at

1.0MHz, V

=0V

= 10mA ;

Irr=0.1*I

= 100Ω

DIM

DIMENSIONS

INCHES

MIN

MAX

.059

.067

.030

.033

.057

.069

.020 Nominal

.035

.043

.000

.004

.028

.031

.004

.008

.010

.014

MIN

MAX

1.50

1.70

0.75

0.85

1.45

1.75

0.50Nominal

0.90

1.10

.000

.100

.70

0.80

.100

.200

.25

.35

NOTE

www.mccsemi.com

Revision: 1

2005/08/29

BAS70T Related Products

	BAS70T	BAS70-04T	BAS70-06T	BAS70-05T
Description	Rectifier Diode, Schottky, 1 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, ULTRA SMALL, SOT-523, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOT	SOT	SOT	SOT
package instruction	ULTRA SMALL, SOT-523, 3 PIN	ULTRA SMALL, SOT-523, 3 PIN	ULTRA SMALL, SOT-523, 3 PIN	ULTRA SMALL, SOT-523, 3 PIN
Contacts	3	3	3	3
Reach Compliance Code	compliant	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0	e0
Humidity sensitivity level	1	1	1	1
Number of components	1	2	2	2
Number of terminals	3	3	3	3
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	30	30
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	-	Micro Commercial Components (MCC)
Base Number Matches	1	1	1	-
