CPN351815C.A: DescriptionSENS PROX CAP M18 PNP NO 2M; CategoryThe sensor; File Size228KB，3 Pages; ManufacturerCrouzet; Environmental Compliance

Download Datasheet Parametric Compare View All

CPN351815C.A Overview

SENS PROX CAP M18 PNP NO 2M

CPN351815C.A Parametric

Parameter Name	Attribute value
sensor type	capacitive
Sensing distance	0.079" ~ 0.591"（2mm ~ 15mm）
Output type	PNP-NO, 3-wire
response frequency	-
shield	No shielding
Material - Body	plastic
Voltage - Power	10 V ~ 30 V
Terminal type	Cable leads
Operating temperature	-20°C ~ 70°C
Intrusion protection	IP65
indicator light	LED
Package/casing	Cylindrical, threaded - M18

Preview

Download Datasheet

View All

Capacitive Proximity Sensors

M18 Capacitive Proximity Sensors

Standard Length

NAMUR

3 Wire DC

ABS Material

PTFE Material

NAMUR

3 Wire DC

CPN72185C

CPN32188C

CPN33188C

CPN34188C

CPN22188C

CPN23188C

CPN24188C

CPN32188M12

CPN33188M12

CPN34188M12

CPN252188M12

CPN23188M12

CPN24188M12

CPN32188C.A

CPN33188C.A

CPN34188C.A

CPN22188C.A

CPN23188C.A

CPN24188C.A

CPN32188C.F

CPN33188C.F

CPN34188C.F

CPN22188C.F

CPN23188C.F

CPN24188C.F

(Wiring Schematic)

(3)

PNP – Normally Open

PNP – Normally Closed

PNP – Selectable

NPN – Normally Open

NPN – Normally Closed

NPN – Selectable

(1)

(4)

(2)

(5)

2 Wire DC

2 Wire AC

Normally Open

Normally Closed

Normally Open

Normally Closed

Mating cables / connectors

Form

Nominal Sensing Distance (Sn)

Housing Material

Termination Type

Min / Max Supply Voltage

Max. Load Current (Ir)

Max ripple factor (Vr)

Voltage Drop (Ud)

Power Consumption (Io)

Switching Frequency (Hz)

Repeatability

Hysteresis

Short Circuit Protection

Output LED

Operating Temperature

IP Rating

-

M18 Shielded

1 to 5mm

ABS

2.0 Meter Cable

-

M18 Shielded

1 to 8mm

Nickel Plated Brass

2.0 Meter Cable

-

M18 Shielded

1 to 8mm

Nickel Plated Brass

2.0 Meter Cable

10 to 30Vdc

200mA

≤ 10%

≤ 3V @ 200mA

≤ 15mA

-

M18 Shielded

1 to 8mm

ABS

2.0 Meter Cable

-

M18 Shielded

1 to 8mm

Teflon – PTFE

M12 Connector

100 Hz

< 10% nominal sensing distance

2 to15% Sn

Yes

-20 to +70 C

IP65 (with connector mounted)

100 Hz

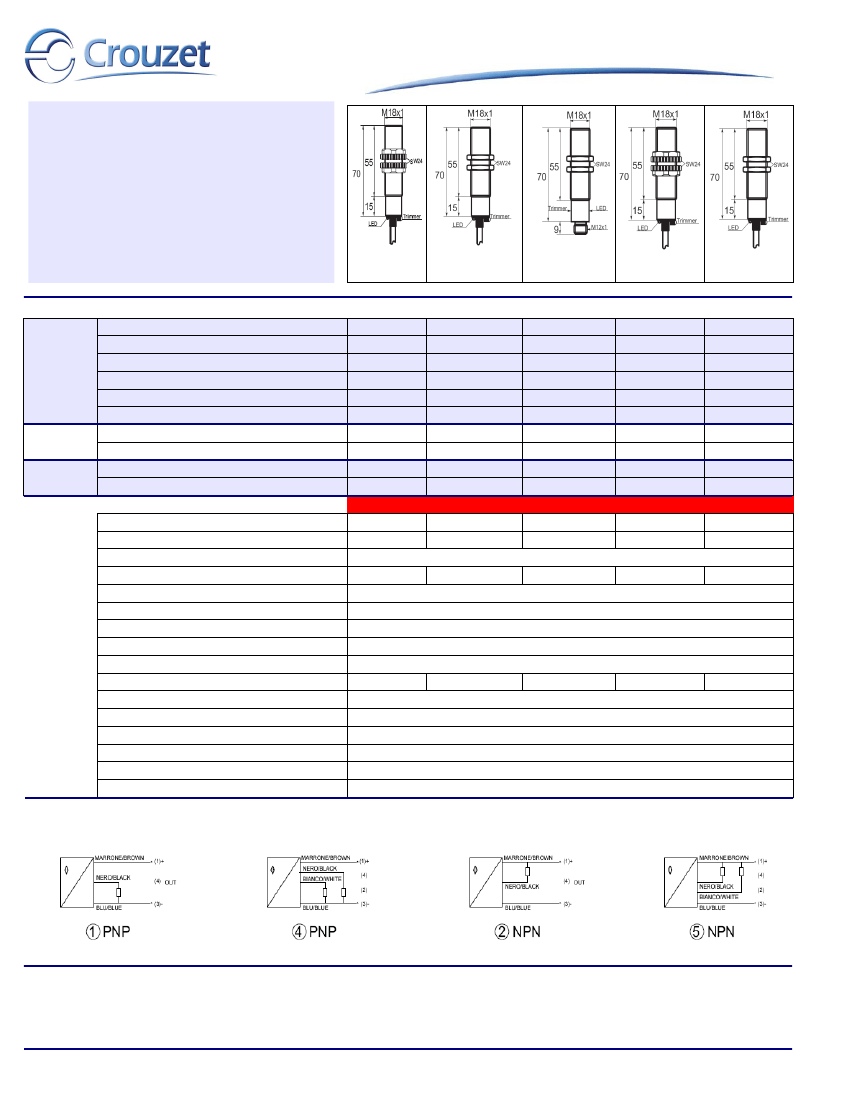

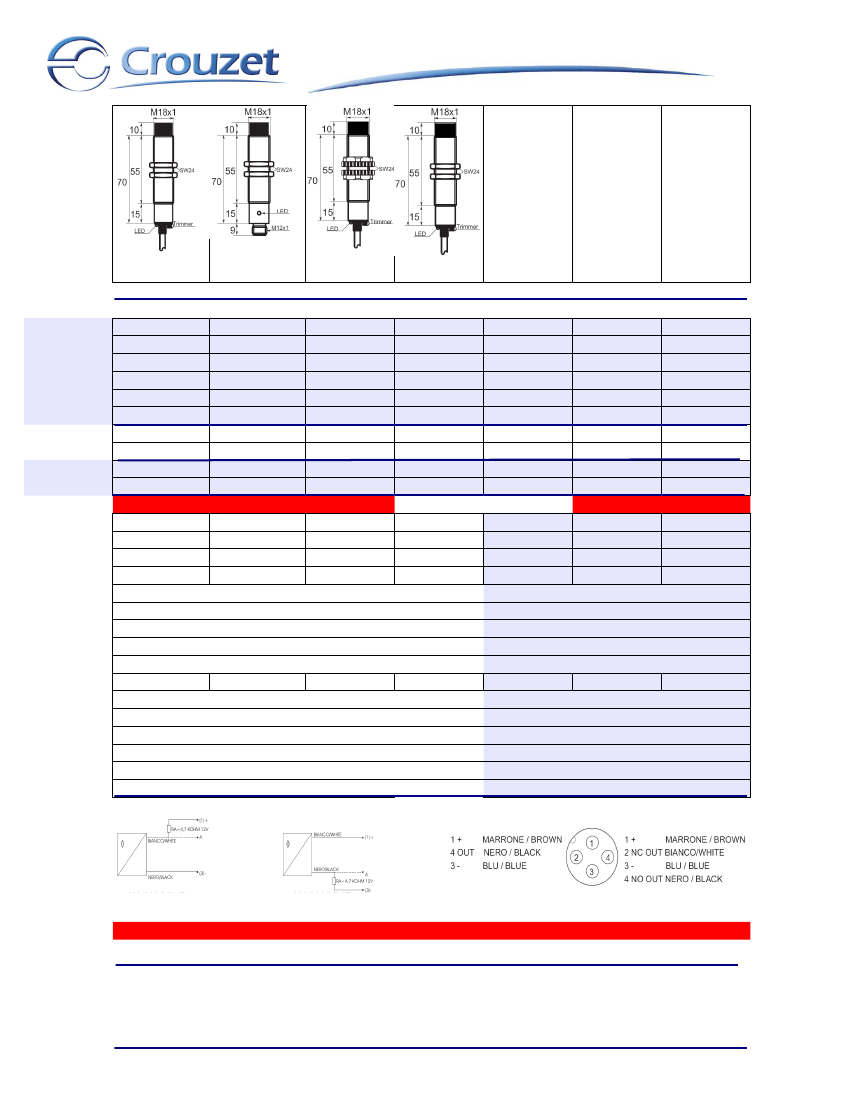

Wiring Diagram

For Technical Assistance and / or Customer Service, call 800/677-5311,

www.crouzet-usa.com
