1/1,000 sec.
The advantage of the fastest response in the
industry
High speed in response to the
needs of the times. Achieves 1 ms
response time, the fastest in the
industry.
file:///G|/DP5/DP5-forweb.htm (1 of 20) [6/11/2001 11:14:04 AM]
DP5-01.htm
In response to the needs of the times and amid the
continuing quest for faster and more efficient production
lines comes the DP5/DPH series, a digital pressure sensor
with a detachable head. The response time of 1 ms makes
this the fastest sensor in the industry. In addition to the fast
response time, the detachable head represents a major
breakthough for ease of operation and maintenance.
Independent Use of Sensor
Head Possible
Data can be controlled by
taking the analog voltage output
(1 to 5V) from the sensor head
and sending it to a digital panel
meter.

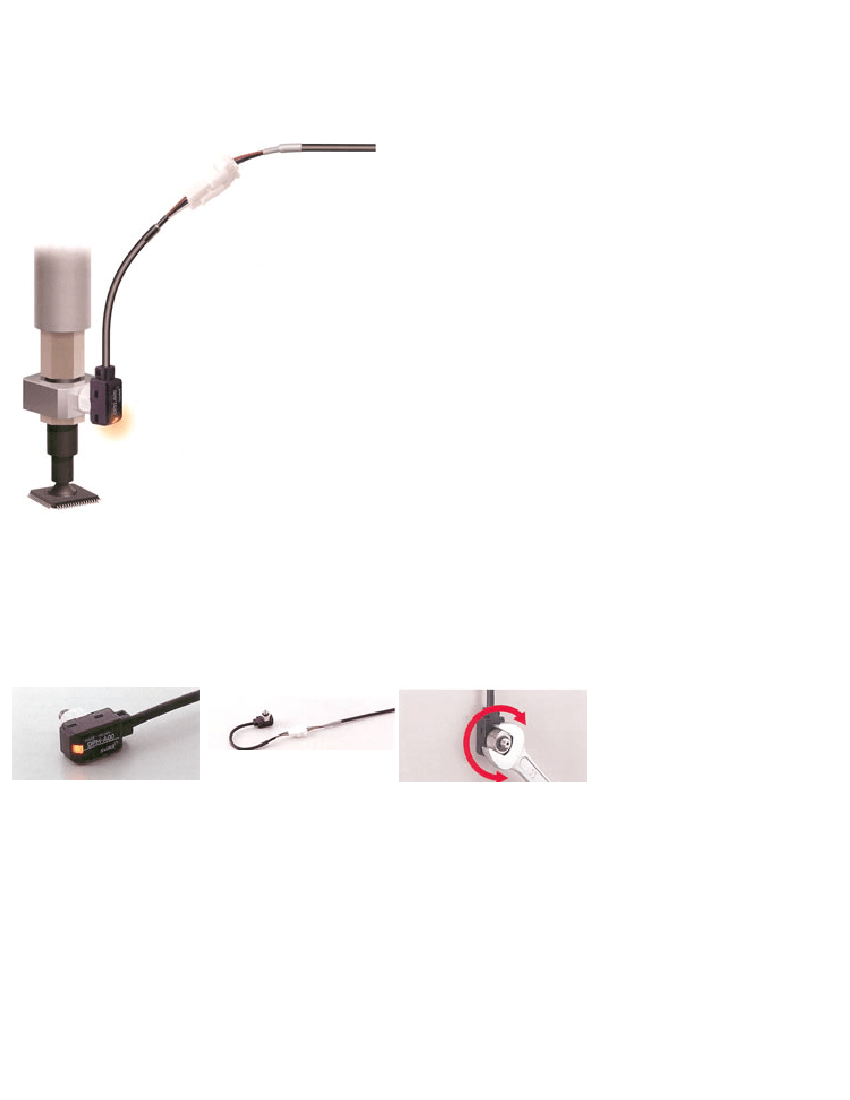

Extremely Small, Extremely Light Head (6g)
Sensor Head with Operation
Indicator
The sensor head is also
equipped with an operation
indicator. Output ON/OFF can
be checked at the sensor head
and operation can be checked
at the suction head. (Linked to
Comparative Output 1)
Convenient Intermediate
Cable
An
intermediate cable with
connectors for connecting the
sensor head and the controller
makes operation and
maintenance easier.
Easy Mounting, Mobile
Pressure Port
The head's pressure port can
be rotated independently
(freeturning) from the sensor
head. In addition to being easy
to mount, the cable can be
positioned in any direction.
q
Standard or flexible
intermediate cables are
available in 2m, 3m and
5m sizes.
Use the flexible
intermediate cable when
the sensor
head is attached to
moving sections.
q
file:///G|/DP5/DP5-forweb.htm (2 of 20) [6/11/2001 11:14:04 AM]
DP5-01.htm
Super fast
1 ms
Vacuum pressure type
(0 to -101.3kPa)
q
q
Mounting the detachable head close to the
detecting section minimizes piping and enables
a response time of 1 ms, the fastest in the
industry, as well as greatly decreasing tact
time delay. In addition, the ultra-small and
light-weight design of the head means it can be
easily mounted on moving sections.
A Total of 10 Head Variations to Meet all Production Demands
Positive pressure type
(0 to 1.000MPa)
q
Compound pressure type
(-100.0 to 100.0kPa)
q
M5 male thread
R (PT) 1/8 male
thread/
M5 female
thread
NPT 1/8 male
thread/
10-32UNF
female thread
10-32UNF male
thread
M5 female
thread
R (PT) 1/8 male
thread/
M5 female
thread
NPT 1/8 male
thread/
10-32UNF
female thread
M5 female
thread
R (PT) 1/8 male
thread/
M5 female
thread
NPT 1/8 male
thread/
10-32UNF
female thread
q
q
q
q
q
q
Both NPN and PNP outputs are available so that this sensor can
be used anywhere in the world. This sensor conforms to the CE
marking EMC Directive and has obtained UL recognition.
Detachable head means layout
freedom.
Use it any way you want.
Light-weight, Compact Design
The controller inherits its light-weight compact design from
the popular compact digital pressure sensor, the DP4
series. The control panel setup is inexpensive and requires
minimal space.

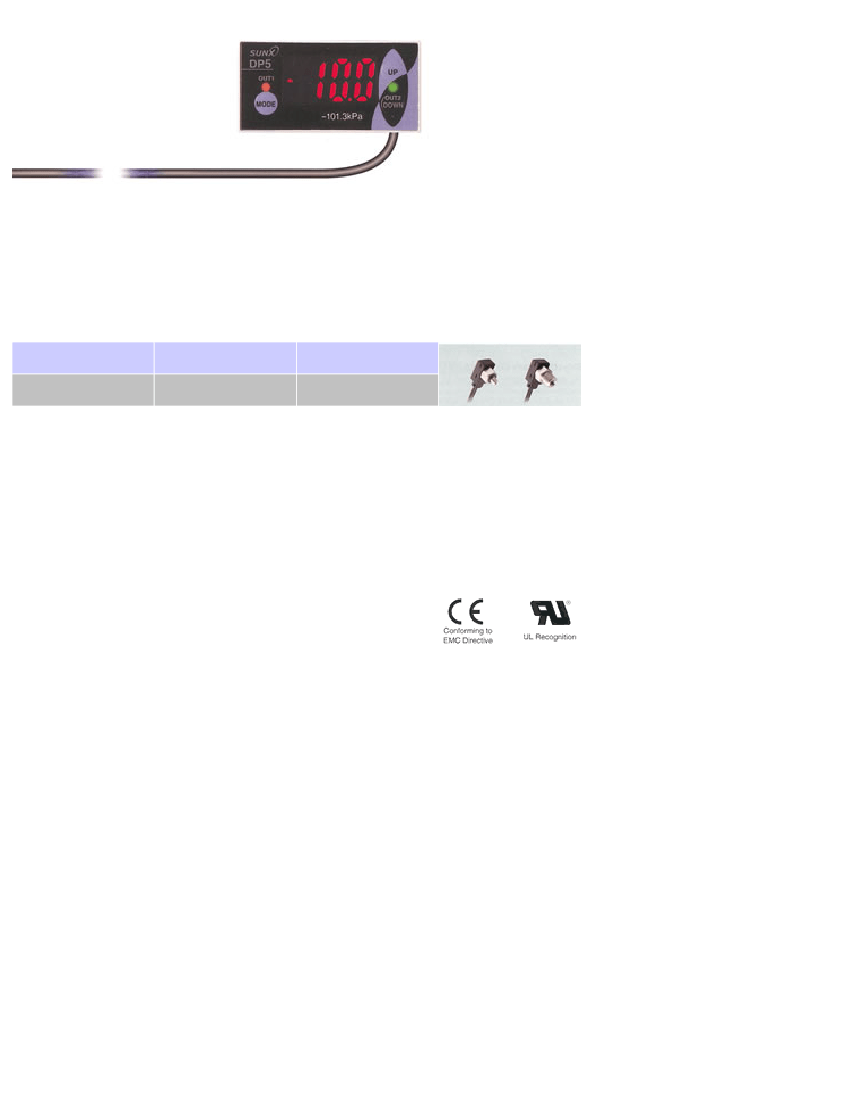

User-friendly Two-color Digital Display
The user-friendly two-color digital display changes color
when output changes (ON/OFF), making it easy to check
operation status at a glance. The display color can be
linked to Comparative Output 1 or to Comparative Output
2.
Two Independent Outputs Plus Analog Voltage Output
In addition to two independent outputs (ON/OFF), an
analog voltage output (1 to 5V) is also available. The
different outputs allow you to create solutions for a wide
variety of applications.
file:///G|/DP5/DP5-forweb.htm (3 of 20) [6/11/2001 11:14:04 AM]
DP5-01.htm
Two Operation Indicators
There are two operation indicators that light respectively
when Comparative Output 1 or Comparative Output 2 is
ON. These are convenient for frequent operation checks.
Sensor Head Auto-recognition
The sensor head's auto-recognition function means that
you don't have to manually set the head type at the
controller, saving you valuable time.
Handy Attachments for Flexible
Controller Mounting
Panel Mounting Bracket is Supplied
A panel mounting bracket is enclosed that allows simple
mounting of the controller onto the panel surface. This
makes for a more cost-effective system.
DIN Rail Mounting Bracket Is Available
The controller can even be mounted on a 35mm width DIN
rail by using the optional DIN rail mounting bracket
(MS-DP2).
It can be fitted in a narrow space inside your
equipment because it can be mounted from four different
directions.
Can be Used with Panel
Thicknesses from 1 to 6mm
Since the panel thicknesses can
be from 1 to 6mm, the controller
can be mounted on thick,
resin-made panels.

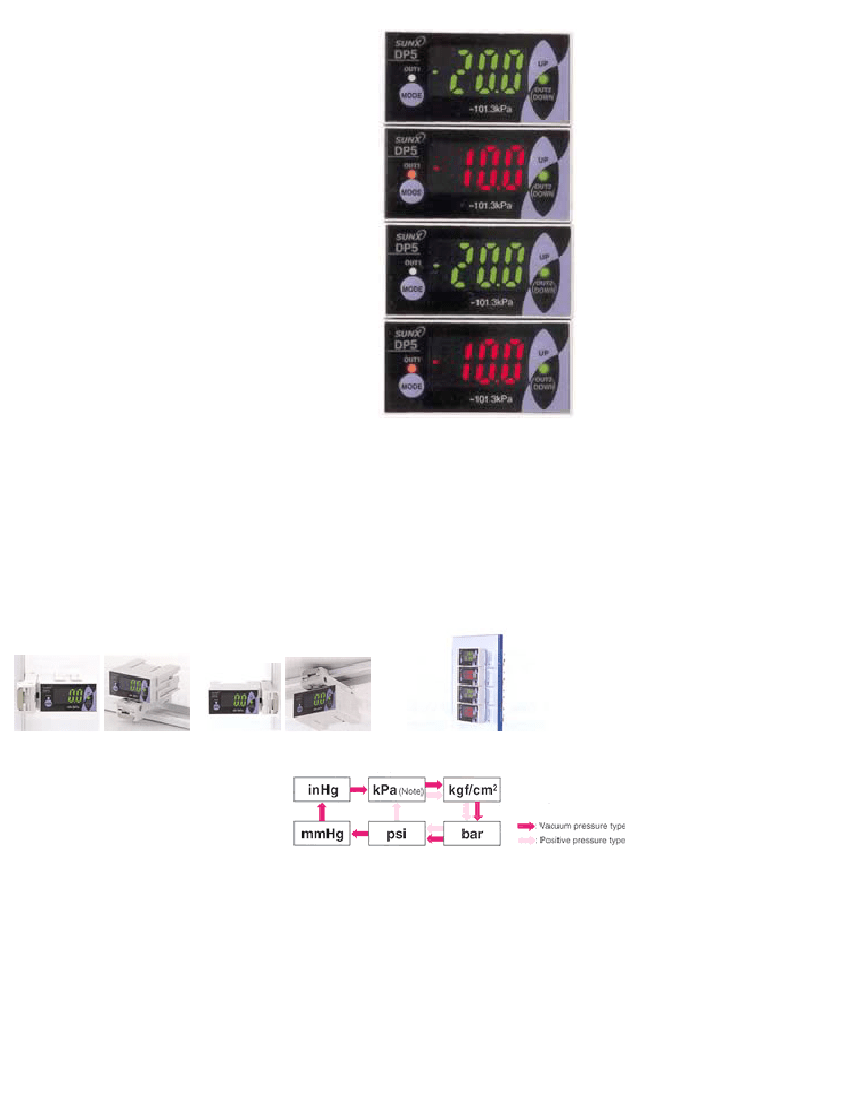

Select from Six Pressure Units
Select the pressure unit from six different
systems to suit your requirements. The
selectable pressure units differ with the
sensor type. When the pressure unit is
changed, the measured pressure value and
the set values are automatically adjusted.
Note: 'MPa' when combining with DPH-A02,
DPH-A12 or DPH-A22 positive pressure sensor
head.
Full Range of Functions in a
Compact Body
Gives You a Wide Variety of
Control Options
file:///G|/DP5/DP5-forweb.htm (4 of 20) [6/11/2001 11:14:04 AM]
DP5-01.htm
The only sensor in the industry with a leak
test mode. Four output modes give you
complete control.

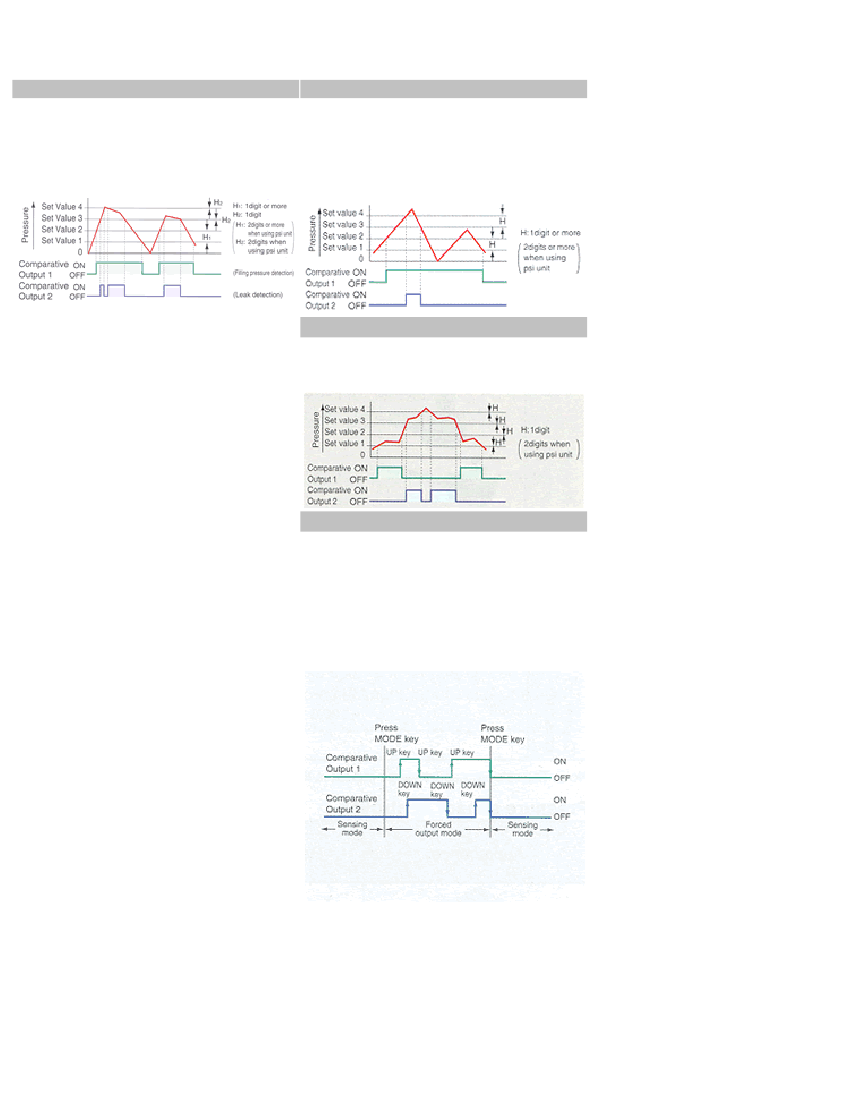

Leak Test Mode
It is suitable for a leak test since Comparative
Output 1 can be set to the hysteresis mode
and Comparative Output 2 can be set to the
window comparator mode. Using it along with
the autoreference/remote zero-adjustment
functions ensures a reliable leak test.
Hysteresis mode
The hysteresis of the comparative outputs can
be set arbitrarily by the set values for the
ON/OFF control.
Window comparator mode
The comparative output can be turned ON or
OFF by a pressure which is within the set
pressure range.
Forced output mode
The comparative outputs are forcibly
maintained at OFF level in the sensing mode,
irrespective of the set values. This is
convenient for displaying the pressure value
without using the comparative outputs.
Since the comparative outputs can be forcibly
switched ON or OFF with key operation
without actually applying pressure this mode is
suitable for an operation or a start-up check.
file:///G|/DP5/DP5-forweb.htm (5 of 20) [6/11/2001 11:14:04 AM]
