MAQ4123/MAQ4124/MAQ4125
Automotive AEC-Q100 Qualified Dual
3A Peak Low-Side MOSFET Driver
Bipolar/CMOS/DMOS Process
General Description
The MAQ4123/MAQ4124/MAQ4125 are a family of dual
3A buffer/MOSFET drivers intended for driving power
MOSFETs, IGBTs and other heavy loads (capacitive,
resistive or inductive) which require low-impedance, high
peak currents and fast switching times. They are available
in
inverting,
non-inverting
and
complementary
configurations.
The MAQ4123/MAQ4124/MAQ4125 operate from a 4.5V
to 20V supply, feature an output resistance of 2.3Ω, sink or
source 3A of peak current, and switch an 1800pF
capacitive load in 10ns with typical propagation delay
times of 50ns.
The MAQ4123/MAQ4124/MAQ4125 feature TTL or CMOS
compatible inputs with 400mV of hysteresis to provide
noise immunity. The inputs can withstand negative voltage
swings of 5V and are latch-up protected to withstand
200mA of reverse current.
The MAQ4123/MAQ4124/MAQ4125 are rated for the
−40°C
to +125°C operating temperature range, have been
AEC-Q100 qualified for automotive applications, and are
available in the ePad SOIC-8 package for improved power
dissipation and thermal performance required by
automotive applications.
Data sheets and support documentation can be found on
Micrel’s web site at:
www.micrel.com.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Automotive AEC-Q100 Qualified
High
±3A
peak output current
Wide 4.5V to 20V supply voltage range
Low 2.3Ω output resistance
Matched rise and fall times
Fast 10ns rise/fall times with 1800pF capacitive load
Low propagation delay time of 50ns (typical)
TTL/CMOS logic inputs independent of supply voltage
Latch-up protected to 200mA reverse current
Logic input withstands swing to
−5V
Low equivalent 6pF input capacitance
Output voltage swings within 25mV of ground or VS
Low supply current
−
2.0mA with logic-1 input (maximum over
temperature)
−
300μA with logic-0 input (maximum over
temperature)
‘426/7/8-, ‘1426/7/8-, ‘4426/7/8 industry standard pin
out
Inverting, non-inverting, and differential configurations
−40°C
to +125°C temperature range
Exposed backside pad (ePad) packaging for improved
power dissipation
•
•
•
•
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •
http://www.micrel.com
July 2011
M9999-072511-A
Micrel, Inc.
MAQ4123/MAQ4124/MAQ4125
Ordering Information
Part Number
MAQ4123YME
MAQ4124YME
MAQ4125YME
Configuration
Dual Inverting
Dual Non-Inverting
Inverting
+
Non-Inverting
Junction Temperature Range
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
Lead Finish
Pb-Free
Pb-Free
Pb-Free
Package
ePad 8-Pin SOIC
ePad 8-Pin SOIC
ePad 8-Pin SOIC
Pin Configuration
ePad SOIC-8 (ME)
ePad SOIC (ME)
ePad SOIC-8 (ME)
Pin Description
Pin Number
1
2
3
4
5
6
7
8
ePad
Pin Name
NC
INA
GND
INB
OUTB
VS
OUTA
NC
EP
Pin Function
Not connected (may be left floating).
Input. Control input for the OUTA driver.
Ground. Return for both output drive sections and ground reference for both input signals.
Input. Control input for the OUTB driver.
Output Drive. OUTB high-current drive pin.
Supply.
+4.5V
to
+20V.
Provides power to both driver outputs and internal control circuitry.
Output Drive. OUTA high-current driver pin.
Not connected (may be left floating).
Exposed Pad (ePad). Must make a full connection to the GND plane to maximize thermal
performance of the package.
July 2011
2
M9999-072511-A
Micrel, Inc.
MAQ4123/MAQ4124/MAQ4125
Absolute Maximum Ratings
(1)
Supply Voltage (V
S
)..................................................... +24V
Input Voltage (V
IN
) .......................... V
S
+ 0.3V to GND – 5V
Maximum Junction Temperature (T
J
)......................... 150°C
Storage Temperature (Ts)........................... –65°C to 150°C
Lead Temperature (soldering, 10s)............................ 260°C
ESD HBM Rating
(3)
......................................................... 2kV
ESD MM Rating
(3)
.........................................................200V
Operating Ratings
(2)
Supply Voltage (V
S
)....................................... +4.5V to +20V
Junction Temperature (T
J
) ........................ –40°C to +125°C
Package Thermal Resistance
ePad SOIC-8 (θ
JA
) .............................................41°C/W
ePad SOIC-8(θ
JC
)…………………...…………14.7°C/W
Electrical Characteristics
(4)
4.5V
≤
V
S
≤
20V; T
A
=
+25°C,
bold
values indicate –40°C
≤
T
J
≤
+125°C, unless noted. Input voltage slew rate
>2.5V/µs.
Symbol
Input
V
IH
V
IL
I
IN
Output
V
OH
V
OL
High Output Voltage
Low Output Voltage
Output Resistance HI State
R
O
Output Resistance LO State
I
PK
I
Peak Output Current
Latch-Up Protection
Withstand Reverse Current
I
OUT
= 100μA
I
OUT
= –100μA
I
OUT
= 10mA, V
S
= 20V
I
OUT
= 10mA, V
S
= 20V
I
OUT
= 10mA, V
S
= 20V
I
OUT
= 10mA, V
S
= 20V
3
>200
35
60
35
60
75
100
75
100
1.5
2.0
0.25
0.30
2.2
2.3
V
S
– 0.025
0.025
5
8
5
8
V
V
Ω
Ω
A
mA
Logic 1 Input Voltage
Logic 0 Input Voltage
Input Current
0V
≤
V
IN
≤
V
S
–1
–10
2.4
1.6
1.45
0.8
1
10
V
V
μA
Parameter
Condition
Min.
Typ.
Max.
Units
Switching Time
t
R
t
F
t
D1
t
D2
Rise Time
Fall Time
Delay Time
Delay Time

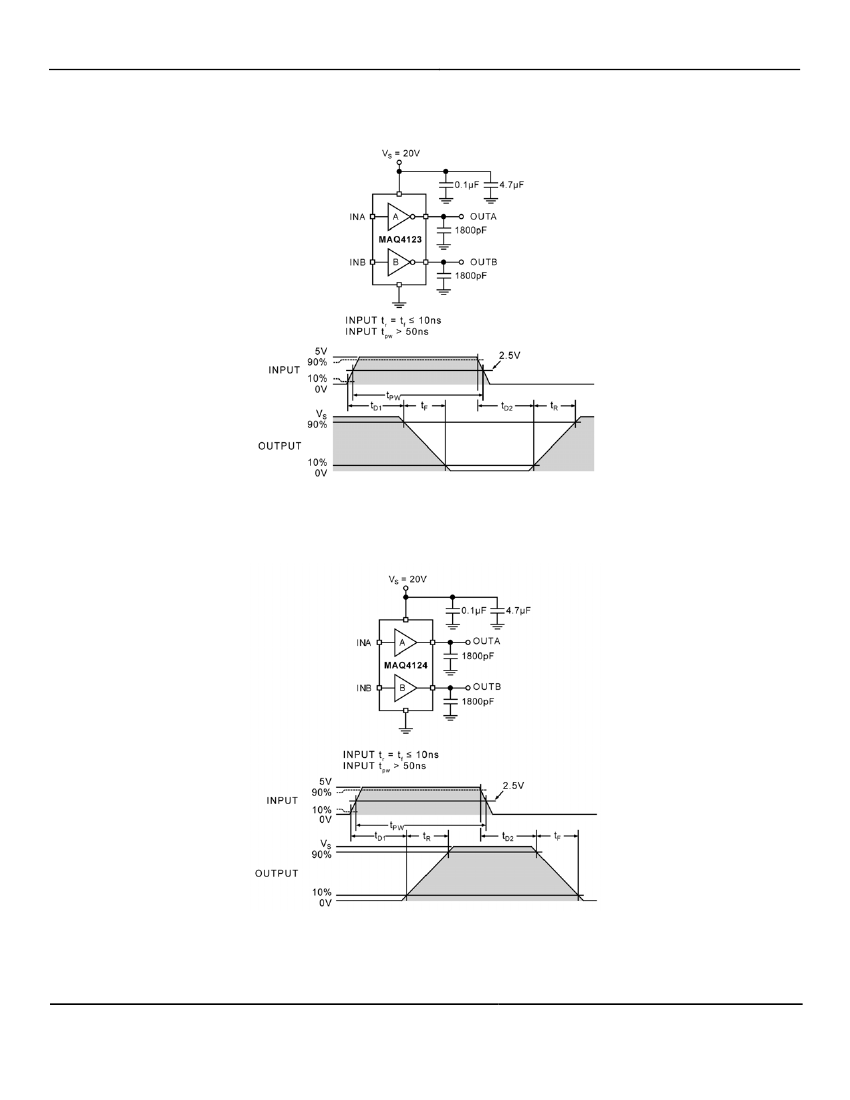

Test figure 1, C
L
= 1800pF, V
S
= 20V
Test figure 1, C
L
= 1800pF, V
S
= 20V
Test figure 1, C
L
= 1800pF, V
S
= 20V
Test figure 1, C
L
= 1800pF, V
S
= 20V
11
11
40
60
ns
ns
ns
ns
Power Supply
I
S
I
S
Notes:
1.
2.
3.
4.
Exceeding the absolute maximum rating may damage the device.
The device is not guaranteed to function outside its operating rating.
Devices are ESD sensitive. Handling precautions recommended. Human body model, 1.5k in series with 100pF.
Specification for packaged product only.
Power Supply Current
Power Supply Current
V
IN
= 3.0V (both inputs)
V
IN
= 0.0V (both inputs)
0.75
0.05
mA
mA
July 2011
4
M9999-072511-A
