ICD26S13E4PA00LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> ICD26S13E4PA00LF

Preview

ICD26S13E4PA00LF: DescriptionCONN DSUB HD RCPT 26POS R/A SLDR; CategoryThe connector; File Size147KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

ICD26S13E4PA00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICD26S13E4PA00LF	-	-	View	Buy Now

ICD26S13E4PA00LF Overview

CONN DSUB HD RCPT 26POS R/A SLDR

ICD26S13E4PA00LF Parametric

Parameter Name	Attribute value
Connector style	D-Sub, high density
Connector type	socket, female socket
Number of pins	26
Number of rows	3
Housing size, connector layout	2 (DA, A) high density
Contact type	Signal
Installation type	Through hole, right angle
Flange characteristics	Body/housing (unthreaded)
Termination	welding
characteristic	-
Housing material, plating	Steel, tinned
Contact plating	gold
Contact plating thickness	flash
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	3A
Operating temperature	-55°C ~ 125°C
Rated voltage	300V
color	black
Contact shape	-
Shell material	polyester
Wire gauge	-
Contact material	copper alloy
Braking device interval	0.350"（8.89mm）

Preview

Download Datasheet

View All

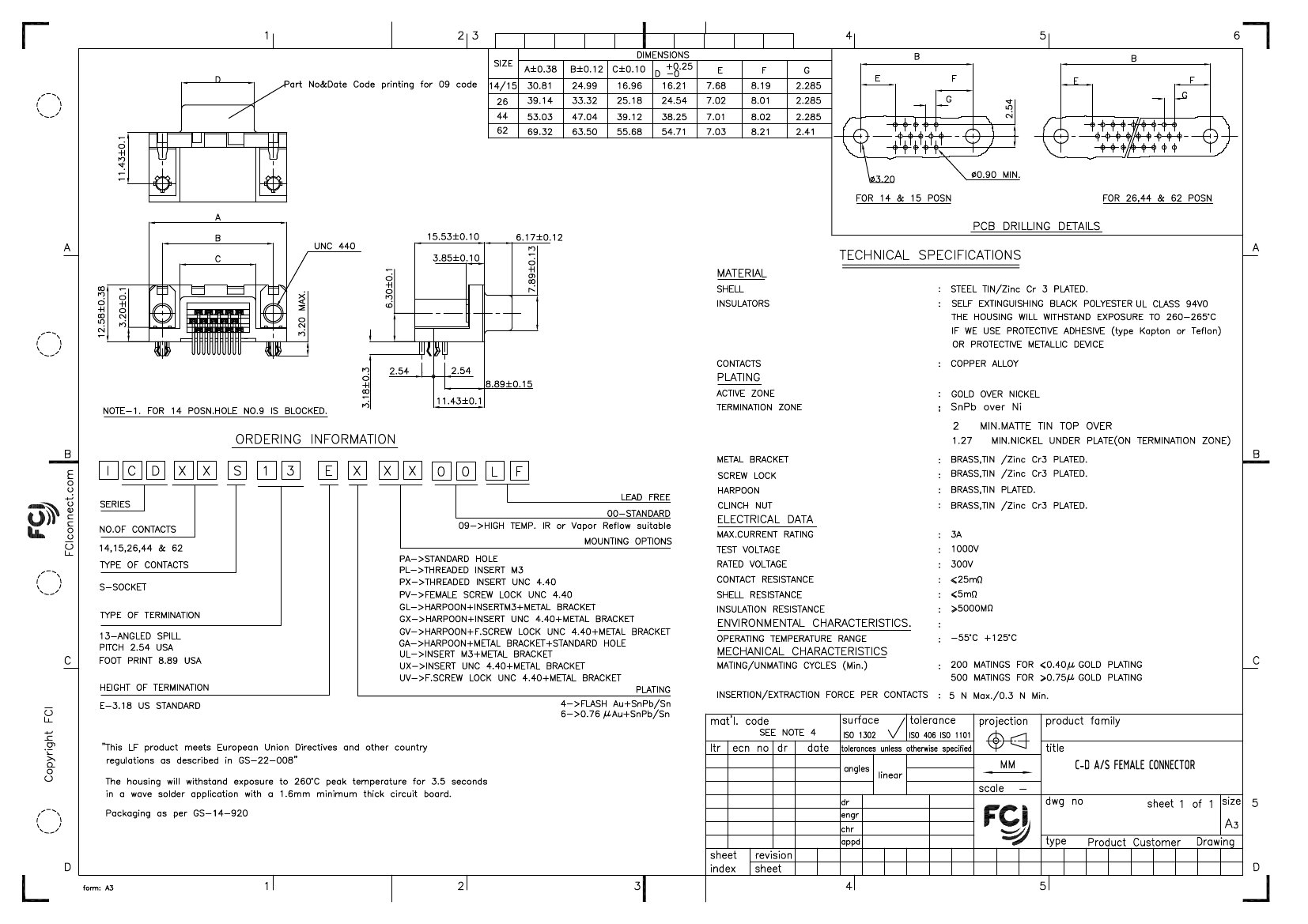

FOR LEAD FREE PLATING

:

µ

COMPACT D

C

I06-0074

GVJ

2006/06/08

.00±0.1

0°±1°

GEORGE.V.JOSEPH

Elias C Thomas

GEORGE.V.JOSEPH

K_V_SIVADAS

C

1

.000±.00X

2004/10/12

2006/06/23

C-CD-0019

6

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.
