3D7005-30 datasheet, PDF - EEWORLD Datasheet

3D7005-30: Description300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit; Categorylogic logic; File Size158KB，4 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

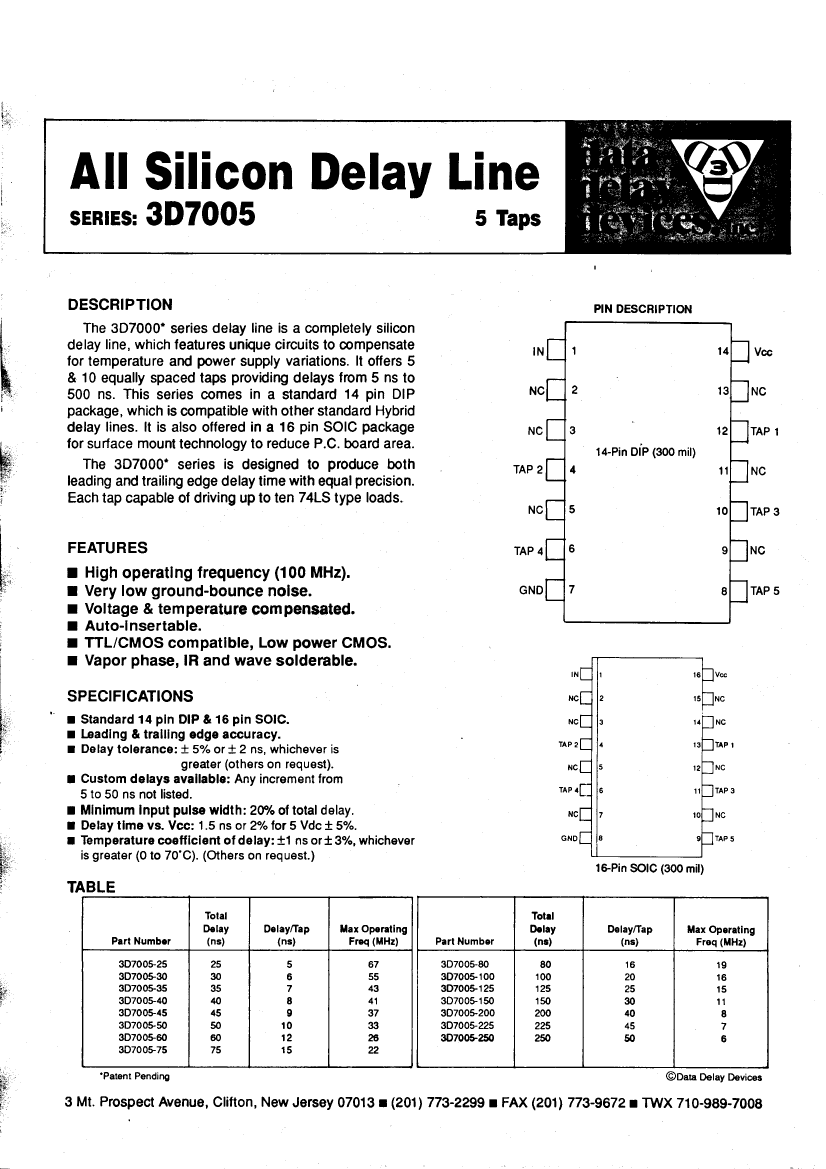

3D7005-30 Overview

300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit

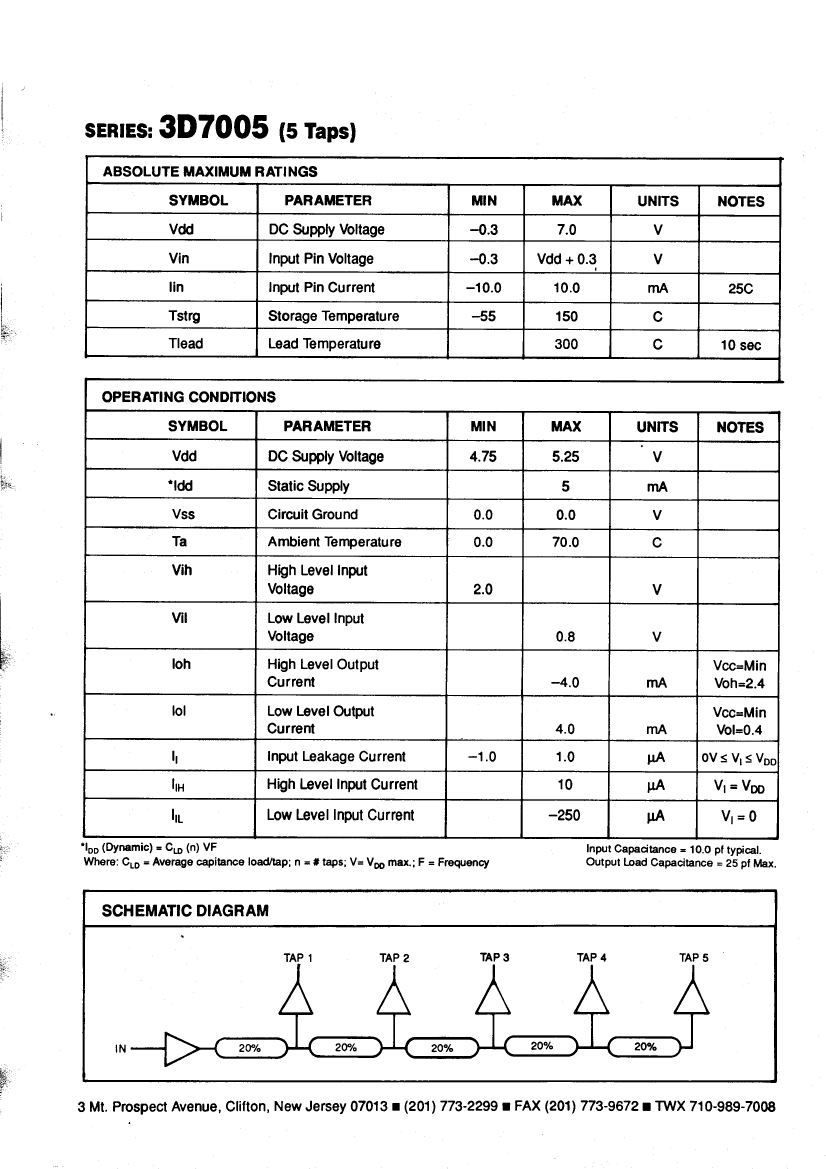

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to

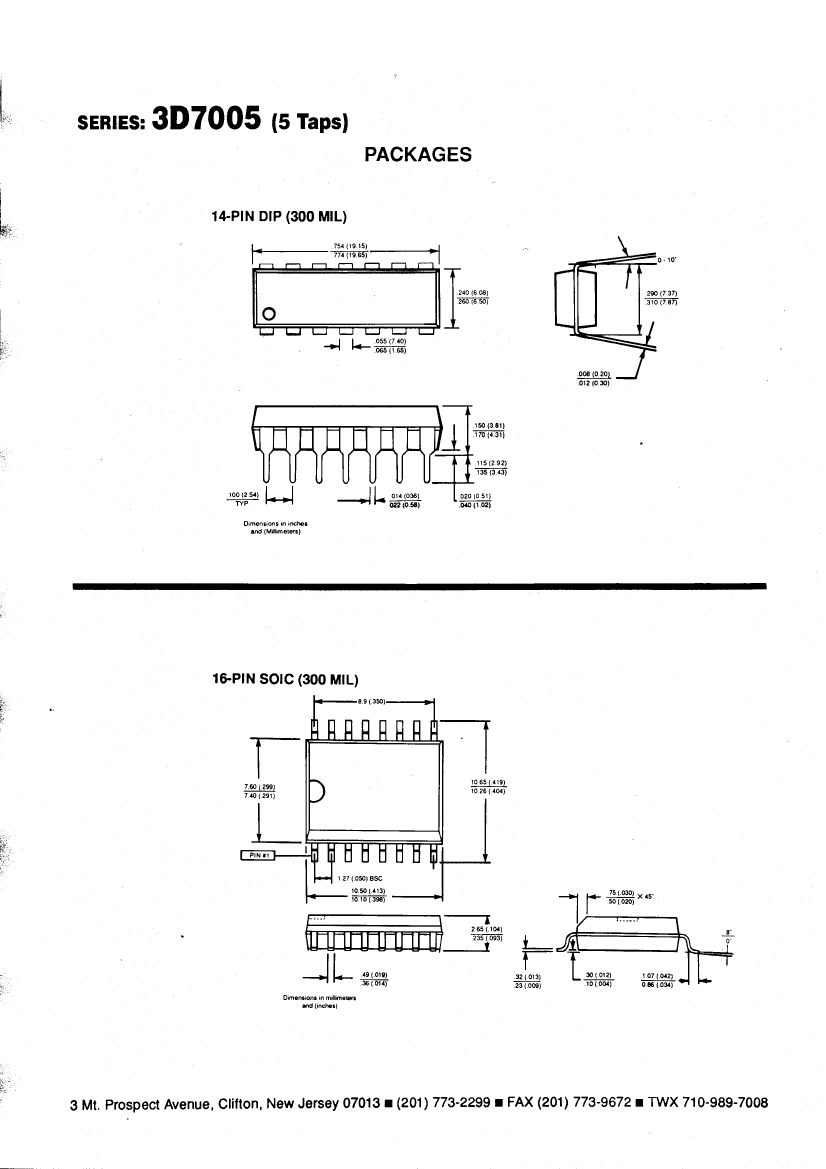

Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compli
Other features	MAX FAN OUT OF 10 74LS LOAD PER OUTPUT; MAX RISE TIME CAPTURED
series	3D

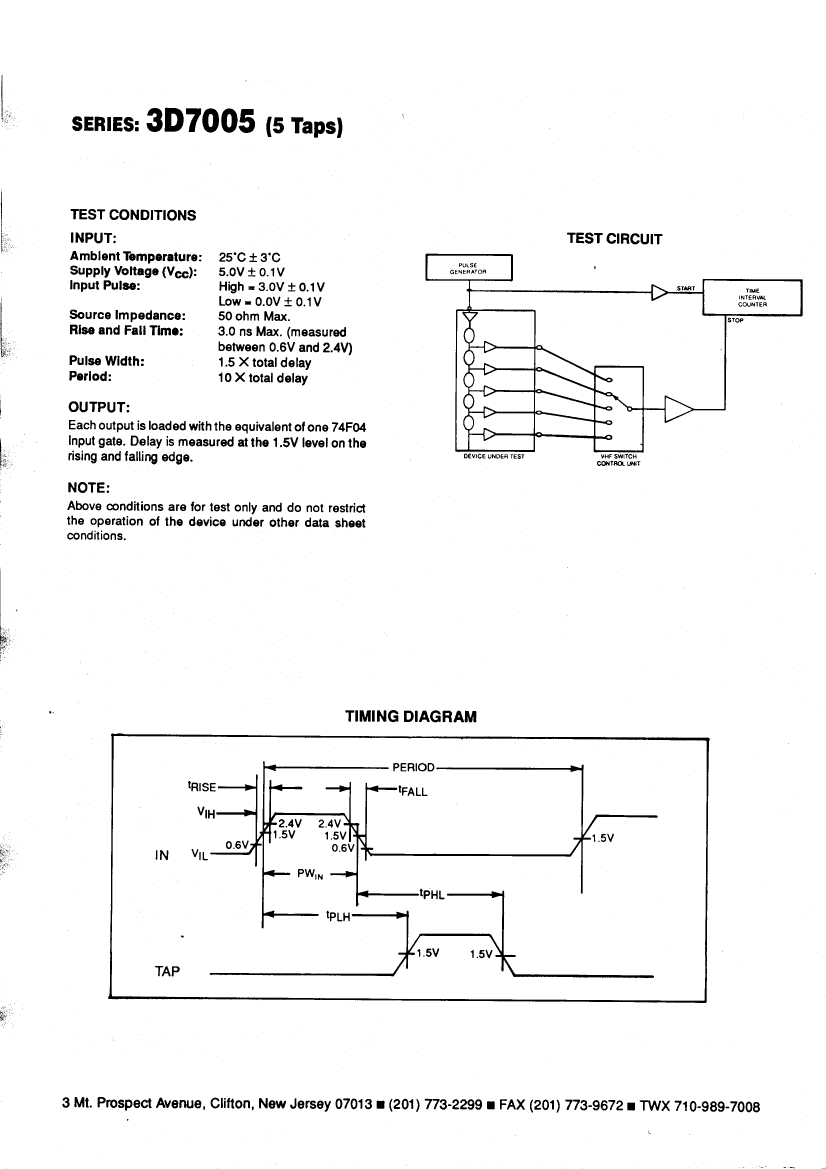

Input frequency maximum value (fmax)	55 MHz
JESD-30 code	R-PDIP-T14
length	19.4 mm
Load capacitance (CL)	25 pF
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	5 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	4.31 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	30 ns
width	7.62 mm
Base Number Matches	1
