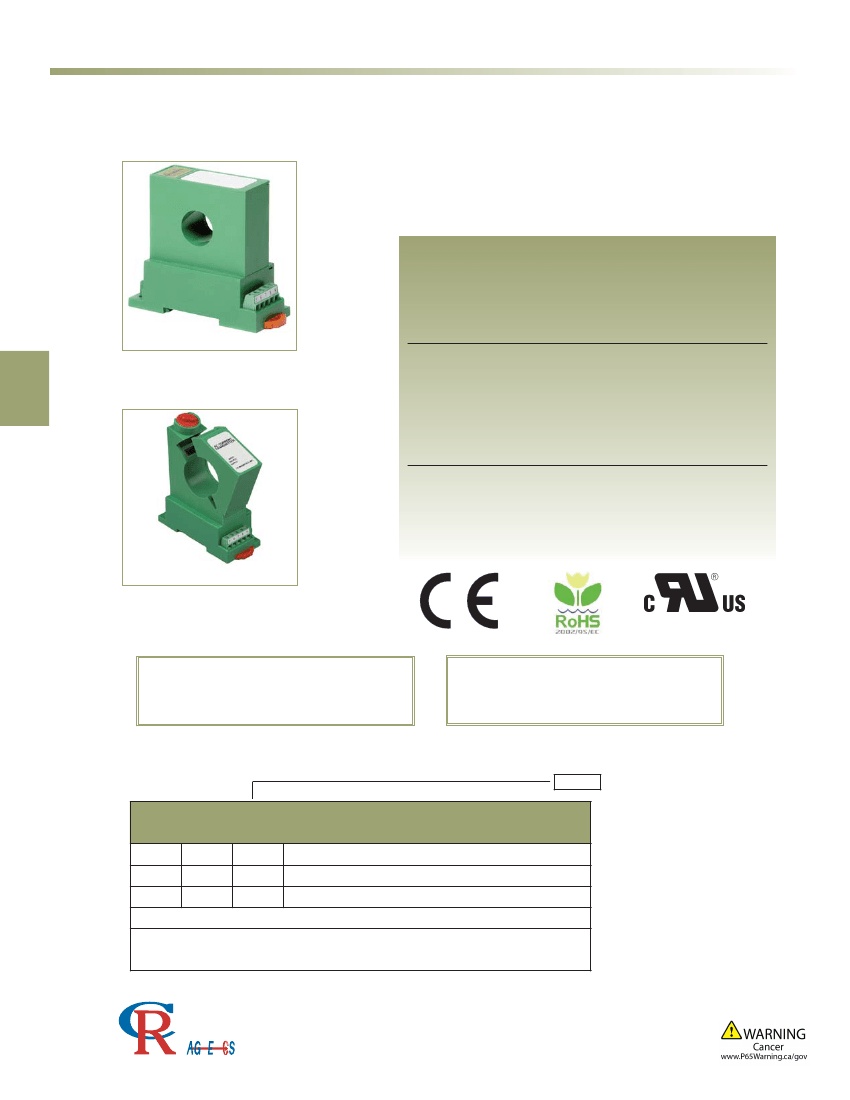

DC Current Transducer
DIN RAIL / PANEL MOUNT, RMS
The
CR5200
Series, DC Current Transducers are designed to
provide a DC signal which is proportional to a DC sensed
current. These devices are designed for direct current only,
targeting them towards general and daily applications. The
ranges 2 to 10 Amp utilize an advanced Magnetic Modulator
technology and the ranges 20 amps and above utilize Hall
Effect technology.
Applications
Battery chargers and systems
DC motor drives
Power supply management
Mobile applications
CR5210
CR5211
CR5220
C
Transducers
Single Element - .79” Window
0.1 to 600 ADC Input Range
Features
Closed loop sensing for accuracy
35mm DIN rail or panel mount
Available with ±5 VDC, ±10 VDC or 4 - 20 mADC outputs
Non-contact DC current sensing
Connection diagram printed on case
Regulatory Agencies
Constructed to meet UL 61010B-1
Constructed to meet CAN/CSA-C22.2, No. 61010-1-2004
Meets requirement of IEC 61010-1 and BS EN 61010-1
CR5210S
CR5211S
CR5220S
Single Element - 1.2” Window
20 to 600 ADC Input Range
E199795
Contact Factory for Custom
±5 VDC, ±10 VDC
or 4 - 20 mADC
Output Options
All single phase current transducers are available in split
core design. Simply put an “S” at the end of the prefix*
I.E. CR5210S-30
Add suffix for input range
PART NUMBERS
CR5210(S)
CR5211(S)
CR5220(S)
-
-
-
Single Element with ± 5 VDC output (split core design)
Single Element with ± 10 VDC output (split core design)
Single Element with 4 - 20 mADC output (split core design)
NOTE: DC Split Core Transducers Available in 20 Amps and Higher
NOTE:
CR5200 Series is available with 12V Power Supply. Use same application as 24V Power Supply.
Example Part Number: CR5210-300-12V
2
5
10
20
30
50
75
100
150
300
-
-
-
-
-
-
-
-
-
-
0-2 ADC
0-5 ADC
0-10 ADC
0-20 ADC
0-30 ADC
0-50 ADC
0-75 ADC
0-100 ADC
0-150 ADC
0-300 ADC
Ranges available up to and
including 600 ADC
The Professional
Energy Monitoring
Company
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
46
E-mail: sales@crmagnetics.com
DC Current Transducer
DIN RAIL / PANEL MOUNT, RMS
SPECIFICATIONS
Basic Accuracy:........................ 1.0 %
Linearity:................................... 10% to 100% FS
Thermal Drift:............................ 500 PPM/°C
Operating Temperature:............ 0°C to +50°C
Installation Category:................ CAT II
Isolation Voltage:.......................
3500KVRMS/1mA/1Sec
Vibration Tested To:................... IEC 60068-2-6,1995
Pollution Degree:..................... 2
Response Time: ..................... 250 ms
Altitude:................................... 2000 meter max.
Insulation Voltage:................... 2500 VDC
Supply Voltage:....................... 24 VDC ±10%
Frequency Range:.................. DC Only
Cleaning:................................ Water-dampened cloth
MTBF:......................... Greater than 100 K hours
Output Load:............... 4-20 mADC - 0 to 300
Ω
0-5 VDC - 2K
Ω
or Greater
Relative Humidity:..... 5% to 95%, Non-Condensing
Supply Current:
CR5210:.................... Typical 35mA
Max 40mA
CR5210S:.................. Typical 30mA
Max 35mA
CR5220:.................... Typical 60mA
Max 100mA
CR5220S:.................. Typical 40mA
Max 50mA
Torque Specs.:........... 3.0 inch lbs. (0.4Nm)
Weight:....................... 0.5 lbs.
C
Transducers
+
1
2
3
4
9
8
7
6
5
[26.6]
1.05
+
OUTPUT
-
+
-
SUPPLY
[3.3]
.13
Optional
Mounting
[73.1]
2.88
[83.3]
3.28
DIN RAIL
MOUNTING
CLIP
[41.8]
1.65
[20.1]
.79
-
CR5210
CR5211
[76.6]
3.02
5 VDC Output
10 VDC Output
[5.6]
.22
TYP
[88.7]
3.49
[25]
.98
[50.7]
2.00
+
1
2
3
4
+
9
8
7
6
5
-
OUTPUT
+
-
SUPPLY
-
CR5220
4 - 20 mADC Output
[28.3]
1.12
[36.6]
1.44
OUTLINE DRAWING
CONNECTION DIAGRAM
NOTE: The building installation must have a switch or circuit-breaker that is in close proximity and within easy reach of the operator. The switch or circuit
breaker shall be marked as the disconnecting device for the equipment.
The Professional
Energy Monitoring
Company
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
47
E-mail: sales@crmagnetics.com
