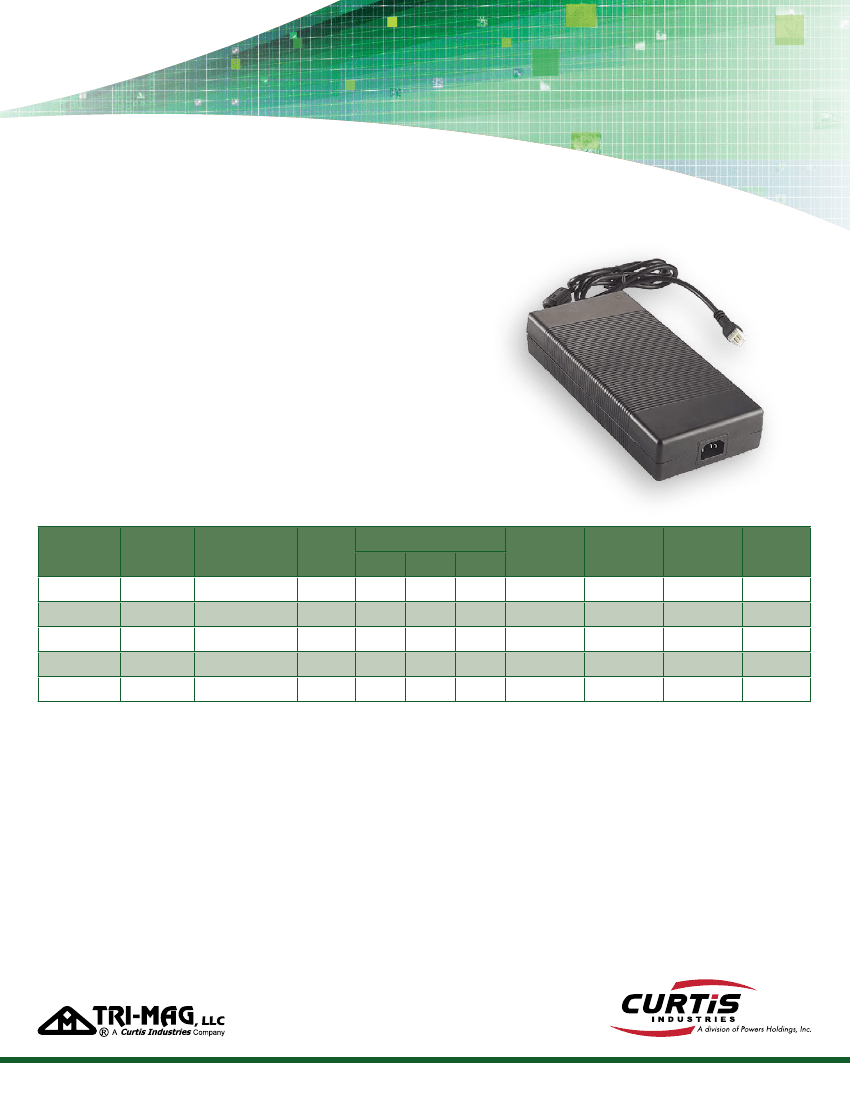

L6R300D Series
300W Desktop Power Supply
•
•
•
•
•
•
DOE Level VI Efficiency Rating
Universal Input: 90 ~ 264Vac, 47/63 Hz
UL/cUL Safety Approved
Corded Output Connection
IEC 60320 C6 and C14 AC input connectors
Light Weight and Compact
Model No.
1
Application
ITE
ITE
ITE
ITE
ITE
Output
Connector
6-Pin rectangular
6-Pin rectangular
6-Pin rectangular
6-Pin rectangular
6-Pin rectangular
Output
Voltage
+12.0V
+19.0V
+24.0V
+48.0V
+56.0V
Output Current (A)
Min
0
0
0
0
0
Rated
24.00
15.78
12.50
6.25
5.36
Peak
—
—
—
—
—
Voltage
Accuracy
±5%
±5%
±5%
±5%
±5%
Ripple
Noise
< ± 2%
< ± 2%
< ± 2%
< ± 2%
< ± 2%
Line
Reg.
± 1%
± 1%
± 1%
± 1%
± 1%
Load
Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
L6R300D-120
L6R300D-190
L6R300D-240
L6R300D-480
L6R300D-560
1. Add “C6” or “C14” for the required AC input connector configuration.
•
•
•
•
•
The output voltage is verified to specs at 60 percent rated load condition.
The
line regulation
is defined by changing ± 10 percent of input voltage from the nominal line at rated load.
The
load regulation
is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.
The
ripple and noise
is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load
and nominal line.
The
efficiency
is measured at rated load and nominal line.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
GREEN POW ER
Power
Supplies
Power
Supplies
L6R300D Series
Innovative, reliable, and inexpensive. This
economical DOE Level VI compliant power supply/
charger is available in a variety of voltage levels,
12.0 to 56.0Vdc (per the model number table) to
match your needs. Rated up to 300W when powering
either stationary or charging portable devices.
Specifications
Input
Input Voltage
Input Frequency
No Load Input Power
Input Current
Inrush Current
Leakage Current
Input Connection
•
•
•
•
•
•
•
90 Vac ~ 264 Vac
47 Hz to 63 Hz
< 0.5W
3.9A Max.
60A Max. / 230Vac
3.5mA Max.
IEC 60320 C6 or C14
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
•
•
•
•
0°C to 40°C
20 to 80% RH, Non-Condensing
-20°C to +80°C
10 to 90%, Non-Condensing
EMC & Safety
Safety Approvals
EMC Approvals
• UL/cUL: UL60950-1
• CE: IEC 60950-1
• FCC
Output
Output Voltage Range
Output Current Range
Minimum Load
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
12.0 to 56.0Vdc
24.0 to 5.36A
No min. load required.
± 1% at rated load across input
voltage range
± 5% (typical)
2% Vp-p Max. @ full load
Auto recovery
Auto recovery
Auto recovery
Warranty
Warranty Period
• 1 year
Dimensions and Notes
Dimensions in mm
Tolerance
Size
Weight
Connectors
• ± 0.2mm
• L 254 x W 116 x H 47 (mm)
L 10.00” x W 4.57” x H 1.85”
• Approx. 1600g (3.52 lb.) (Ref.)
• AC input; IEC 60320 C6 or
C14 connector
• DC output; 6-pin (2x3) rectangular output
connector or per customer specification.
• L6R300D-120: 1000 ±30 mm (39.4 ±1.2”)
All other P/Ns: 1200 ±30 mm (47.2 ±1.2”)
General
Dielectric Withstand
Efficiency
MTBF
•
•
•
3,000Vac Primary to Secondary
Level VI, ErP Stage 2, CoC Tier 2 compliant
300,000 hrs. @ 25ºC per Telcordia SR-332
Output Cord length

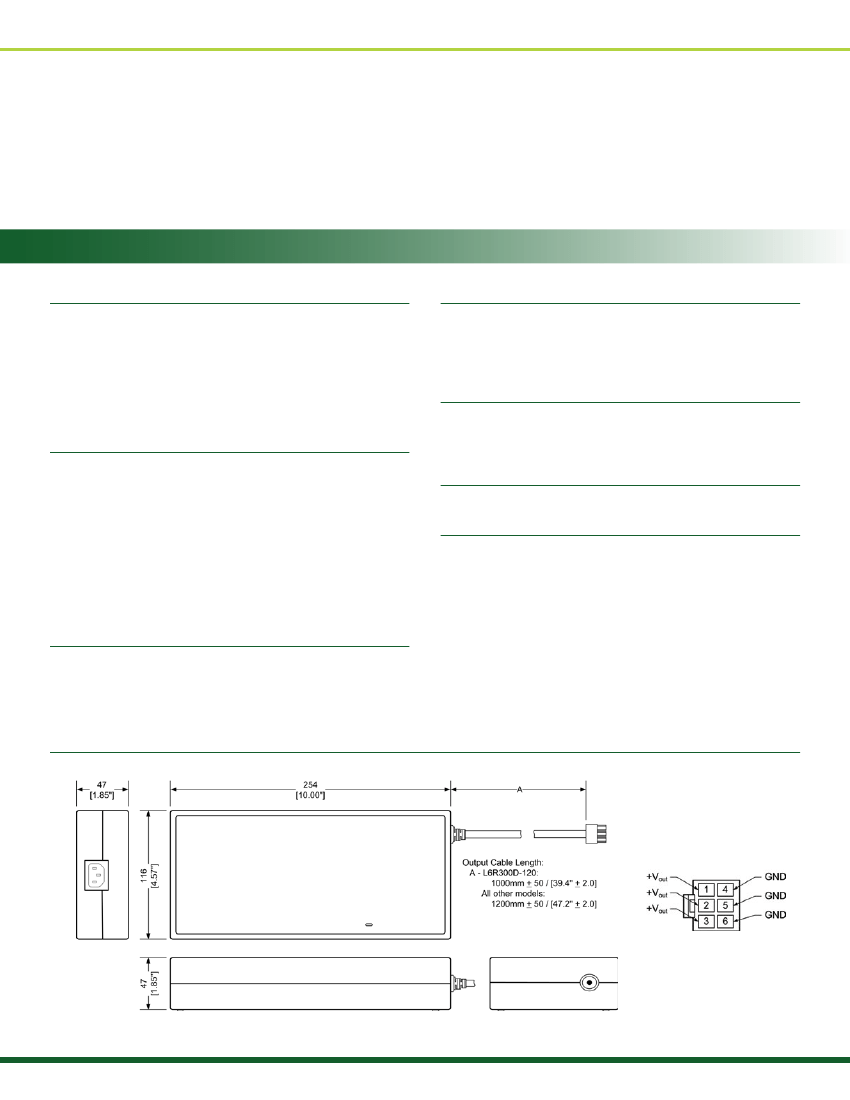

Mechanical Drawing
2017-10
