BCS-129-L-D-TE-011 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BCS-129-L-D-TE-011

BCS-129-L-D-TE-011: DescriptionBOX CONNECTOR SOCKET STRIP; CategoryThe connector The connector; File Size616KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BCS-129-L-D-TE-011 Overview

BOX CONNECTOR SOCKET STRIP

BCS-129-L-D-TE-011 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	11TH PIN POLARIZED
body width	0.2 inch
subject depth	0.29 inch
body length	2.9 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	375VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	57
UL Flammability Code	94V-0
Evacuation force-minimum value	.834 N

Preview

Download Datasheet

View All

F-219

BCS–108–L–D–HE

BCS–110–L–S–DE

10 YEAR MFG

WITH 30 µ" GOLD

BCS–110–L–S–HE

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

BCS–115–L–D–TE

BCS–112–L–D–PE

(2.54 mm) .100"

BCS SERIES

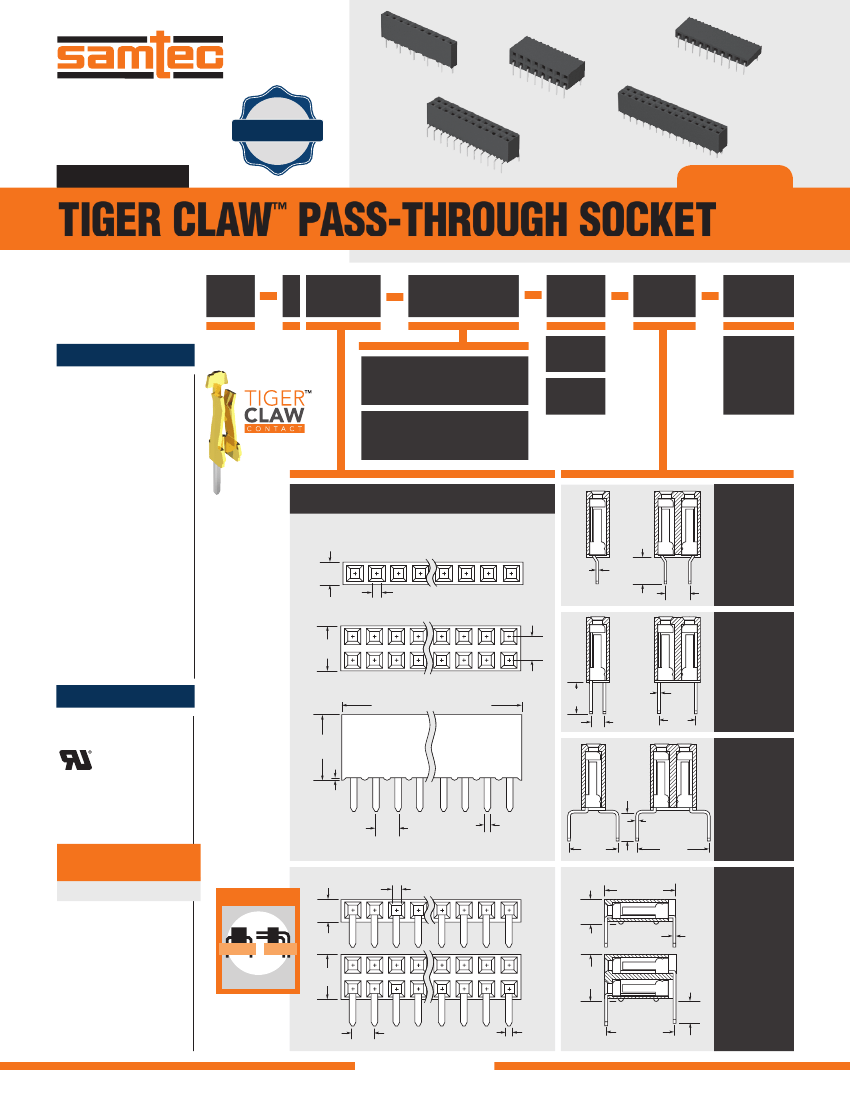

TIGER CLAW PASS-THROUGH SOCKET

™

Mates with:

TSW, MTSW, HTSW,

HMTSW, TSS, ZSS,

DW, EW, ZW, HW, TSM,

MTLW, PHT

BCS

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

ENTRY

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?BCS

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (BCS/TSW):

4.6 A per pin

(2 pins powered)

Voltage Rating:

475 VAC

(-TE/-DE/-PE mated with TSM)

450 VAC

(-HE mated with TSW)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(4.34 mm) .171" to

(7.24 mm) .285" from top,

(5.64 mm) .222" plus

board thickness minimum

from bottom.

–HE is (4.34 mm) .171"

to (6.35 mm) .250"

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

= Gold flash on contact,

Matte Tin on tail

–F

–L

= Single

–S

–D

–“XXX”

= Polarized

Position

(–BE not

available)

= Double

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

01 thru 50

–TE

(2.54)

.100

(0.89) .035 SQ TYP

(0.25)

.010

(3.05)

.120

(2.54)

.100

= Top

Entry

(5.08)

.200

(2.54)

.100

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(7.37)

.290

(2.54) .100 x No. of Positions

(3.05)

.120

(0.25)

.010

(1.78)

.070

(4.06)

.160

= Top Entry

(For Bottom

Entry specify

–DE–BE)

Cannot be

used with plated

through-holes

–DE

FILE NO. E111594

(0.48)

.019

(2.54)

.100

(0.51)

.020

(5.08)

.200

(3.25)

.128

(0.25)

.010

(7.62)

.300

= Pass-

through

Entry

(For Bottom

Entry specify

–PE–BE)

–PE

ALSO AVAILABLE

(MOQ Required)

• Other platings

APPLICATIONS

BCS

TSW

(0.89) .035 SQ TYP

(2.79)

.110

(3.18)

.125

(8.13) .320

(0.25)

.010

(5.33)

.210

(5.72)

.225

(3.18)

.125

(7.87) .310

HORIZONTAL

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

= Horizontal

Entry

–HE

(2.54)

.100

(0.51)

.020

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
