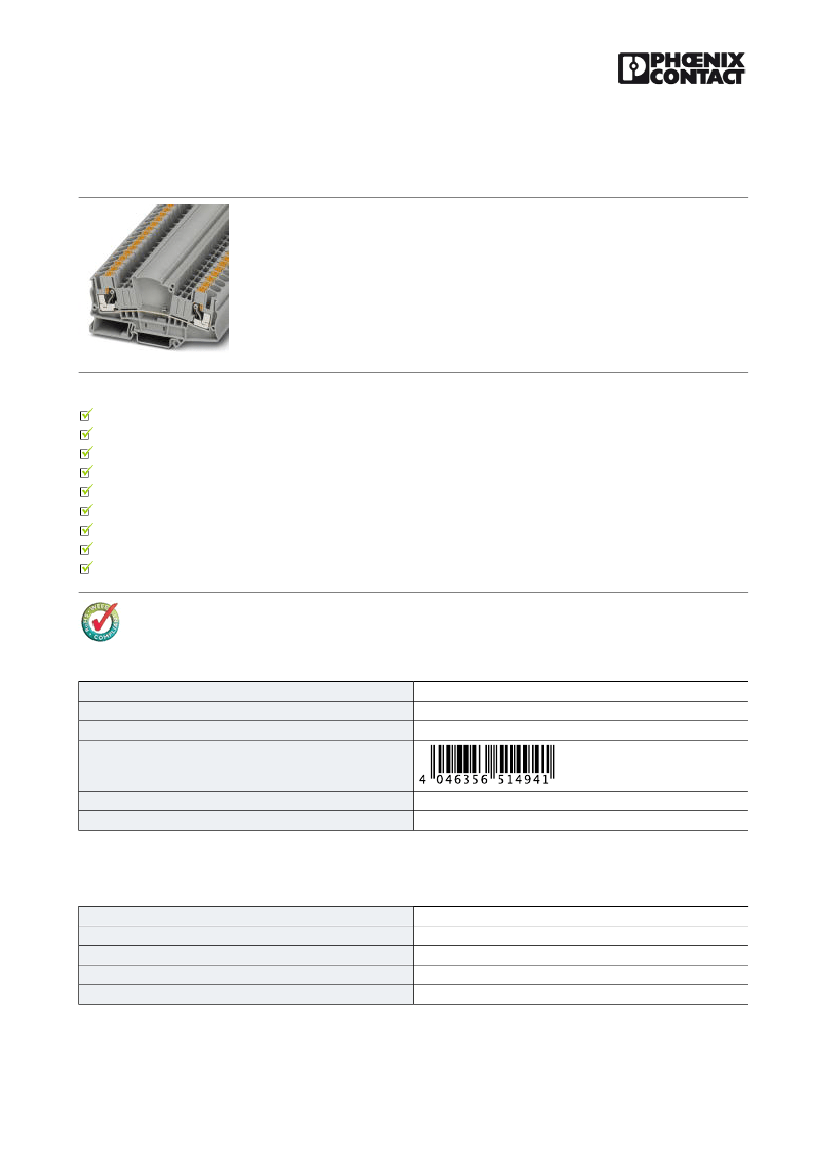

Feed-through terminal block - PTMED 6 - 3212183
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.5 mm² -10
mm² , AWG: 20 - 10, Width: 8.2 mm, Color: gray
Why buy this product
Feed-through terminal blocks of the same shape are available
Clear selection thanks to printed switching symbols
Clear
Easy operation
Compact design
Six function shafts
Flexible and comprehensive accessories
Reliably snapped into the end positions
Contact made via screw terminal points
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
POLAND
0
50
Page 117 (CL1-2011)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
2
gray
PA
V0
Dimensions
17.01.2013 Page 1 / 24
https://www.phoenixcontact.com/us/produkte/3212183
Feed-through terminal block - PTMED 6 - 3212183
Technical data
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.2 mm
100.8 mm
49.6 mm
57.1 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Power frequency withstand voltage setpoint
30 A
6 kV
3
III
I
IEC 60947-7-1
41 A
500 V
ja
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
7.3 kV
Test passed
1.89 kV
Checking the mechanical stability of terminal points (5 x conductor
Test passed
connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Bending test conductor cross section/weight
Bending test conductor cross section/weight
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Tight fit on carrier
Setpoint
Result of tight fit test
Requirements, voltage drop
Result of voltage drop test
Temperature-rise test
Conductor cross section short circuit testing
10 rpm
135
0.5 mm² / 0.3 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Test passed
0.5 mm²
20 N
6 mm²
80 N
10 mm²
90 N
Test passed
NS 35
5N
Test passed
≤ 3.2 mV
Test passed
Test passed
6 mm²
17.01.2013 Page 2 / 24
2
https://www.phoenixcontact.com/us/produkte/3212183
Feed-through terminal block - PTMED 6 - 3212183
Technical data
Technical data
Short-time current
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Ageing test for screwless modular terminal block temperature
cycles
Result of aging test
Proof of thermal characteristics (needle flame) effective duration
Result of thermal test
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
0.72 kA
10 mm²
1.2 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, on vehicle body
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0.8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
130 °C
-60 °C
2 2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
0.5 mm²
10 mm²
20
8
0.5 mm²
6 mm²
20
10
0.5 mm²
6 mm²
0.5 mm²
6 mm²
17.01.2013 Page 3 / 24
https://www.phoenixcontact.com/us/produkte/3212183
Feed-through terminal block - PTMED 6 - 3212183
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
0.5 mm²
1.5 mm²
Push-in connection
12 mm
A5
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000902
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121410
39121410
39121410
30211811
39121410
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141120
27141120
27141120
27141120
27141120
27141120
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
17.01.2013 Page 4 / 24
https://www.phoenixcontact.com/us/produkte/3212183
Feed-through terminal block - PTMED 6 - 3212183
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
20-8
30 A
600 V
B
20-8
30 A
300 V
C
20-8
30 A
300 V
D
20-8
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
20-8
30 A
600 V
B
20-8
30 A
300 V
C
20-8
30 A
300 V
D
20-8
5A
600 V
GOST
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
20-8
30 A
300 V
C
20-8
30 A
300 V
D
20-8
5A
600 V
cULus Recognized
Accessories
Accessories
Assembly
End cover - D-DTME 6 - 3034426
Cover, width: 2.2 mm, color: gray
17.01.2013 Page 5 / 24
