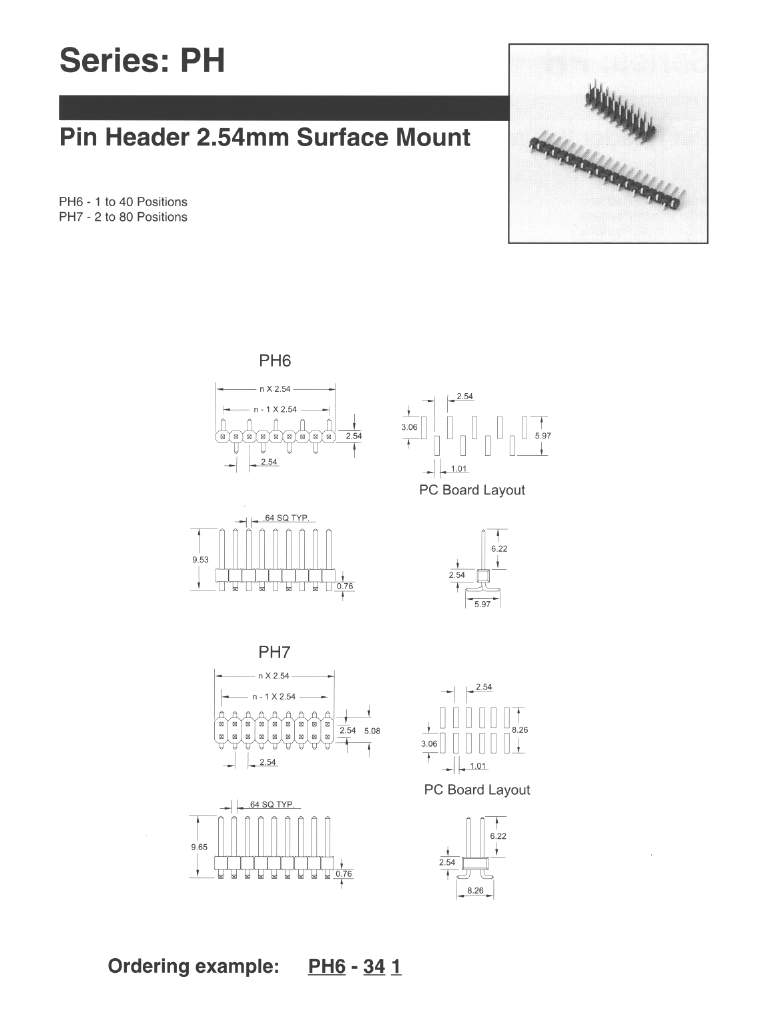

CONN HEADER 7POS .100 SINGLE SMD
| Parameter Name | Attribute value |
| Connector type | Needle hub, separate |
| Contact type | Male pin |
| Spacing - Mating | 0.100"（2.54mm） |
| Number of pins | 7 |
| Number of rows | 1 |
| Line spacing - patching | - |
| Number of pins loaded | all |
| style | Board to Board or Cable |
| shield | Uncovered |
| Installation type | surface mount |
| Termination | welding |
| Fastening type | push-pull |
| Contact Length - Mating | 0.245"（6.22mm） |
| Contact length - terminal | - |
| Overall contact length | - |
| Insulation height | 0.100"（2.54mm） |
| Contact shape | Square |
| Contact surface treatment - mating | gold |
| Contact Surface Treatment Thickness - Mating | flash memory |
| Contact Surface Preparation - Column | - |
| Contact material | Phosphor bronze |
| Insulation Materials | Polybutylene terephthalate (PBT), glass fiber reinforced |
| characteristic | - |
| Operating temperature | -40°C ~ 105°C |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | - |
| Rated current | 3A |
| Rated voltage | - |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | - |
| application | - |
| PH6-071 | PH6-041 | PH7-261 | |
|---|---|---|---|
| Description | CONN HEADER 7POS .100 SINGLE SMD | CONN HEADER 4POS .100 SINGLE SMD | CONN HEADER DUAL 26POS RA |
| Connector type | Needle hub, separate | Needle hub, separate | Needle hub, separate |
| Contact type | Male pin | Male pin | Male pin |
| Spacing - Mating | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） |
| Number of pins | 7 | 4 | 26 |
| Number of rows | 1 | 1 | 2 |
| Number of pins loaded | all | all | all |
| style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| shield | Uncovered | Uncovered | Uncovered |
| Installation type | surface mount | surface mount | surface mount |
| Termination | welding | welding | welding |
| Fastening type | push-pull | push-pull | push-pull |
| Contact Length - Mating | 0.245"（6.22mm） | 0.245"（6.22mm） | 0.346"（8.80mm） |
| Insulation height | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） |
| Contact shape | Square | Square | Square |
| Contact surface treatment - mating | gold | gold | gold |
| Contact Surface Treatment Thickness - Mating | flash memory | flash memory | flash memory |
| Contact material | Phosphor bronze | Phosphor bronze | copper alloy |
| Insulation Materials | Polybutylene terephthalate (PBT), glass fiber reinforced | Polybutylene terephthalate (PBT), glass fiber reinforced | Polyamide (PA6T), nylon 6T, glass fiber reinforced |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 105°C |
| Material flammability rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Rated current | 3A | 3A | 3A |
