5600F7LC

Description
LED T1 NM YELLOW 583RA ASSY
CategoryLED optoelectronic/LED
File Size81KB,2 Pages
ManufacturerVisual Communications Company - VCC
Environmental Compliance
Download Datasheet Parametric Compare View All

5600F7LC Online Shopping

Suppliers Part Number Price MOQ In stock
5600F7LC - - View Buy Now

5600F7LC Overview

LED T1 NM YELLOW 583RA ASSY

5600F7LC Parametric

Parameter NameAttribute value
coloryellow
Wavelength - Peak583nm
Configurationsingle
current7mA
millicandela level1.8mcd
perspective-
Lens typescattering, colored
Lens style/sizeRound, with dome, 3mm (T-1)
Rated voltage1.9V
Installation typeThrough hole, right angle
TM

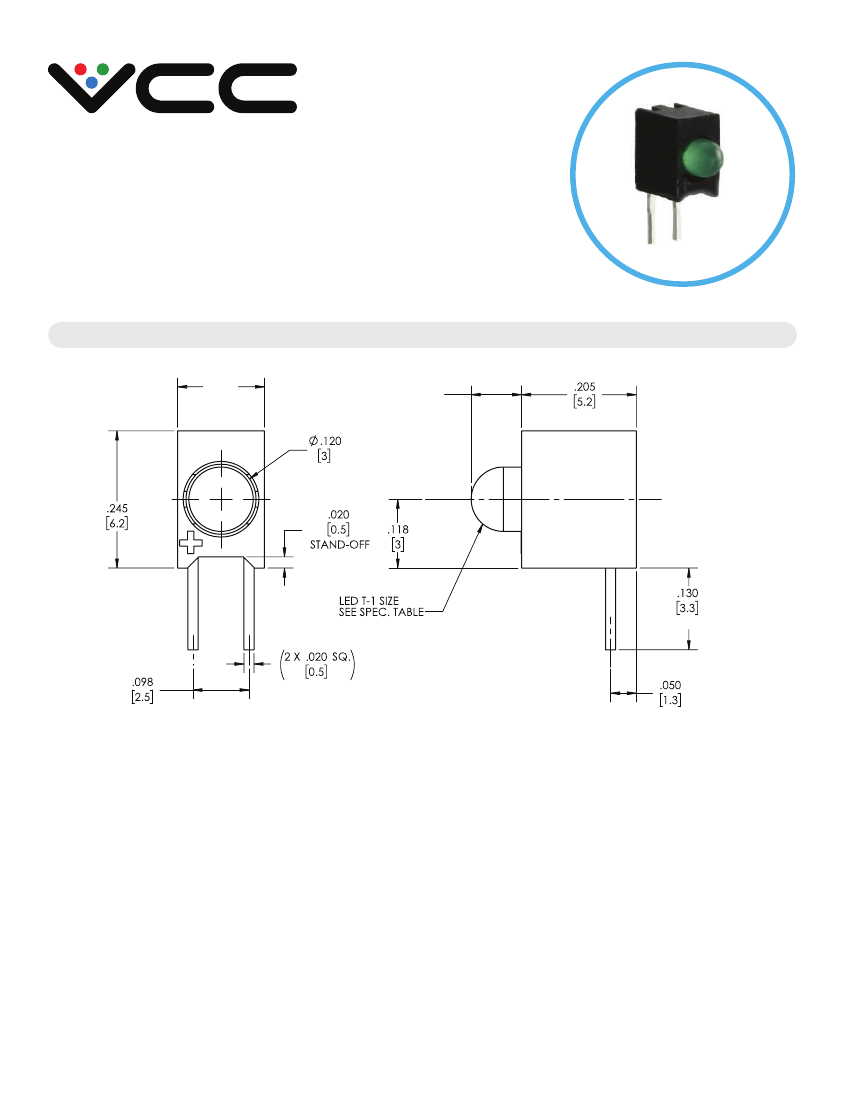

5600 Series 3mm (T-1) LED
Through Hole Right Angle
Circuit Board Indicator
Dimensions and Features
0.155
[3.9]
0.120
[3.0]
Max.
MIN.
Dimensions in inches [mm]
Features
•Small T-1 size lamp preassembled into plastic block.
•Height and spacing alignment, saves assembly cost.
•Super Brite and High Brite LEDs.
• High light output - diffused lens.
•High contrast ratio.
•Low current - only 2 mA.
•Built -in resistor chip operates off 5 volt supply without external resistor.
•Standoffs prevent flux entrapment.
Housing: Black Polyester,UL94V-0
Note: Alternate LEDs are also available in this package as a standard variation.
your first call for illuminated components
www.vcclite.com
1.800.522.5546
07/17 Rev 1
1

5600F7LC Related Products

5600F7LC 5600F5LC 5600F1 5600F7 5602F5-5V 5602F1-5V 5600F5 5600F1LC
Description LED T1 NM YELLOW 583RA ASSY LED T1 NM GREEN 565RA ASSY LED RED T1 RIGHT ANGLE PCB LED YELLOW T1 RIGHT ANGLE PCB LED GREEN T1 RIGHT ANGLE 5V PCB LED RED T1 RIGHT ANGLE 5V PCB LED GREEN T1 RIGHT ANGLE PCB LED T1 RED 650NM RA ASSY
color yellow green red yellow green red green red
Wavelength - Peak 583nm 565nm 650nm 585nm 565nm 655nm 562nm 635nm
Configuration single single single single single single single single
current 7mA 7mA 10mA 10mA 10mA 10mA 10mA 7mA
millicandela level 1.8mcd 2.1mcd 10mcd 6.3mcd 8mcd 8mcd 16mcd 2.5mcd
Lens type scattering, colored scattering, colored scattering, colored scattering, colored scattering, colored scattering, colored scattering, colored scattering, colored
Lens style/size Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1) Round, with dome, 3mm (T-1)
Rated voltage 1.9V 1.8V 2V 2.1V 5V 5V 2.2V 1.8V
Installation type Through hole, right angle Through hole, right angle Through hole, right angle Through hole, right angle Through hole, right angle Through hole, right angle Through hole, right angle Through hole, right angle
