047101.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 047101.5

047101.5: DescriptionAxial Lead and Cartridge Fuses - Subminiature; CategoryCircuit protection Circuit protection; File Size45KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

047101.5 Overview

Axial Lead and Cartridge Fuses - Subminiature

047101.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Littelfuse
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 50A
Fusing characteristics	TIME LAG
body height	7.11 mm
Body length or diameter	2.41 mm
Circuit protection type	ELECTRIC FUSE
Fuse type	Supplemental
Fuse size	PICO
Joule integral nominal	1 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	2.41mm x 7.11mm
Pre-discharge rating	1.61 A2/s
Rated breaking capacity	50 A
Rated current	1.5 A
Rated voltage	125 V
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	CSA; METI; UL
surface mount	NO
Terminal shape	PIN WIRE
Disconnect time or delay	14400 s

Preview

Download Datasheet

View All

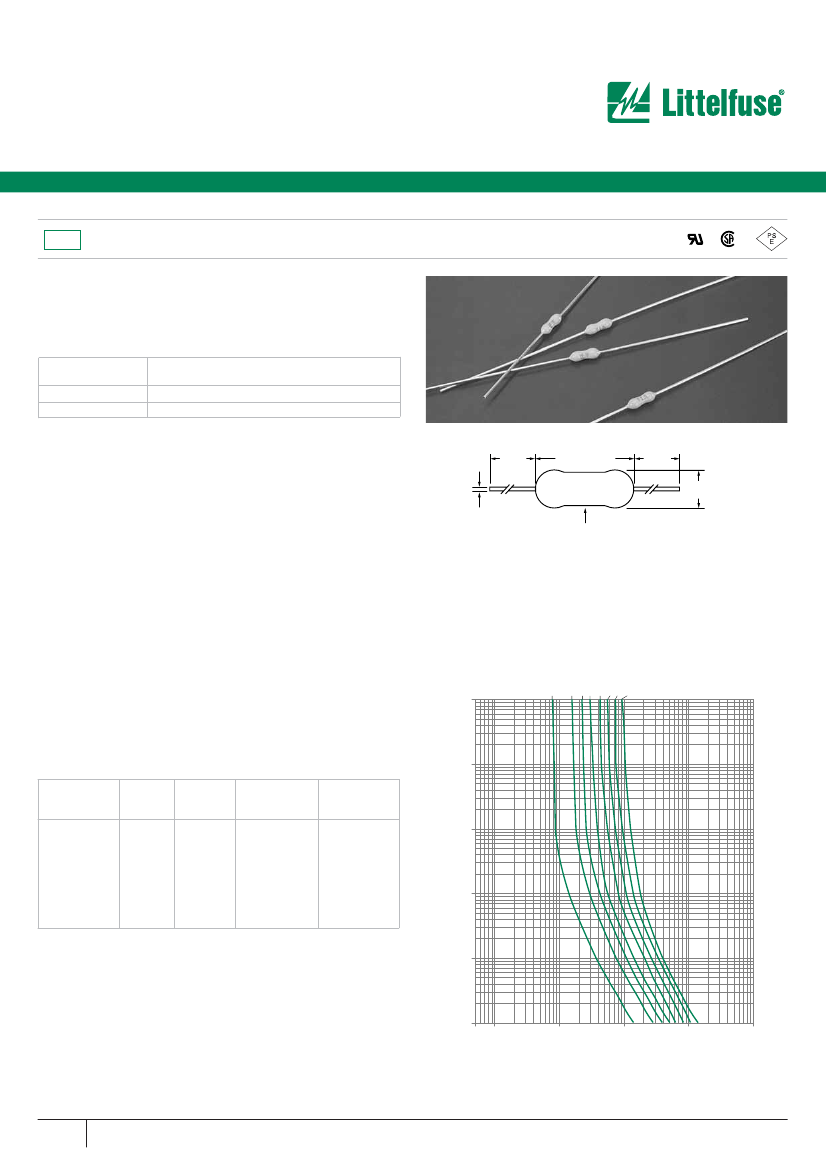

Axial Lead and Cartridge Fuses

Subminiature

RoHS

PICO

Time Lag Fuse 471 Series

• The PICO

II time-lag fuse is designed for applications that require

moderate inrush withstand.

• For additional inrush withstand, consult the 473 Series.

•

RoHS Compliant

version now available, use ordering suffix ‘L’

(see example on data sheet).

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

200%

Opening

Time

4 hours,

Minimum

120 seconds,

Max.

AGENCY APPROVALS:

Recognized under the Components

Program of Underwriters Laboratories and Certified by CSA.

Approved by METI from 1 through 5 amperes.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

INTERRUPTING RATINGS:

50 amperes at 125 VAC and VDC.

38.1

(1.5")

7.11 (.280")

REF.

38.1

(1.5")

2.41 (.095")

DIA. REF.

0.64 (.025")

DIA.

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature:

–55°C to 125°C.

Shock:

MIL-STD-202, Method 213, Test Condition I

(100 G’s peak for 6 milliseconds).

Vibration:

MIL-STD-202, Method 201 (10–55 Hz);

Method 204, Test Condition C (55–2000 Hz at 10 G’s Peak).

Moisture Resistance:

MIL-STD-202, Method 106.

EPOXY COATING

PACKAGING SPECIFICATIONS:

Tape and Reel per EIA-296;

T1: 2.062" (52.4mm) taped spacing; 5,000 per reel.

Options:

For

RoHS Compliant

devices add the letter ‘L’ to end of

packaging suffix. Example: 0471001.NRT1L (RoHS Compliant 1A,

5,000 per reel).

PHYSICAL SPECIFICATIONS:

Materials:

Encapsulated, Epoxy-Coated Body; Solder Coated

Copper Wire Leads. RoHS Compliant Product: Pure Tin coated copper

wire leads.

Flammability Rating:

UL 94V0

Average Time Current Curves

1 1/2A

2 1/2A

100

CURRENT IN AMPERES

1/2A

Soldering Parameters:

Wave Solder — 260°C, 10 seconds maximum.

Solderability:

MIL-STD-202, Method 208.

Lead Pull Force:

MIL-STD-202, Method 211, Test Condition A (will

withstand a 7 lb. axial pull test).

100

ORDERING INFORMATION:

Catalog

Number

0471.500

0471

001.

0471

01.5

0471

002.

0471

02.5

0471

003.

0471

004.

0471

005.

Ampere

Rating

1/2

Voltage

Rating

125

Nominal

Resistance

Cold Ohms

0.189

0.085

0.054

0.039

0.030

0.023

0.012

0.008

Nominal

Melting I

Sec.

0.159

0.722

1.610

2.500

4.390

6.960

10.600

15.400

TIME IN SECONDS

0.1

0.01

0.001

0.05 0.1

1000

390

w w w. l i t t e l f u s e . c o m
