The Bel Power Solutions 350DNC40-12 Series is a 4 kW DC/DC
converter that converts HVDC voltages in hybrid and electric vehicles
to LVDC voltages suitable to power low voltage (12/24 VDC)
accessories.
Liquid or convection cooled DC/DC converter operates at input
voltages from 240 to 430 VDC and delivers power range up to 4000 W
/ 3300 W (liquid / convection cooled model).
Features include very high efficiency, high reliability, low output
voltage noise, and excellent dynamic response to load/input changes.
Input voltage range: 240-430 VDC (300-450 VDC)
Typical efficiency up to 93 %
Up to 4 kW power (max. 16 kW)
Full galvanic isolation between input and output
Liquid or convection cooling
CAN bus serial interface
Adjustable output voltage
Over temperature, output overvoltage and overcurrent protection,
input and output reverse polarity protection
Protection degree IP65 and IP67
E-mark compliant
Hybrid and electric vehicles
Medium through heavy duty, on and off highway vehicles
2
350DNC40-12 Series
DESCRIPTION
Liquid cooled model
Liquid cooled model
Convection cooled model
Mating connectors kit – Signal connector housing and pins, HV connector assembled with 3 m cable
Mating connectors kit - housing and pins
MODEL
350DNC40-12-8G
350DNC40-12-8S103G
350DNC40-12-CG
350DNC40-CON-KIT-8G
350DNC40-CON-KIT-9G
PARAMETER
Input Voltage
Input Current
Efficiency
Input Line Interruption
Input Capacitance
Inrush current
DESCRIPTION / CONDITION
350DNC40-12-8G / 350DNC40-12-CG
350DNC40-12-8S103G
350DNC40-12-8G / 350DNC40-12-CG
350DNC40-12-8S103G
@ Vin = 350 VDC, Vo = 14.4 V, Ionom = 278 A
Converter shutdown
350DNC40-12-8G / 350DNC40-12-CG
350DNC40-12-8S103G
MIN
240
300
NOM
350
MAX
430
450
19
16
240
300
UNIT
VDC
ADC
%
VDC
μF
92
30
External pre-charging circuit required
PARAMETER
Output Voltage
Output Current
Output Power
Line Regulation
Output Voltage Set Point
Thermal Drift
Periodic and Random Deviation
DESCRIPTION / CONDITION
Vo trimmed via CAN
BUS, 10 bit res
350DNC40-12-8G / 350DNC40-12-CG
350DNC40-12-8S103G
Liquid cooled model
Convection cooled model
Liquid cooled model
Convection cooled model
MIN
9
NOM
14.4
13.0
278
229
MAX
16
UNIT
VDC
ADC
4000
3300
- 0.1
14.35
-0.05
14.4
+ 0.1
14.45
+0.05
280 *
300 *
W
VDC
VDC
%/°C
mVp-p
Vinmin - Vinmax, @ 139 A, T_coolant = 70°C
@ 139A, T_coolant = 25°C
Transient Response
Turn-on Overshoot
Redundant Parallel Operation
Remote Sense
Turn-On Delay
Turn-Off Timing
Capacitive Load
@ 14.4 VDC / Nominal load (Differential Mode 20 MHz)
CAN high / low (Differential Mode 20 MHz)
Load step 1: 10 to 50 % and back
Load step 2: 50 to 100 % and back
Voltage over/under shoot:
Response time within 1 % of VoSET:
Vonom, <100 ms
Up to 4 converters operating in parallel
Cable Drop (V) @ Maximum Load
Rise time (Cext = 0
μF)
Power-on-delay (From applying DC input voltage to Vo = 90 %)
Power-on-time from PS_WAKE UP (From PS_WAKE UP ON to
Vo = 90% of nom)
PS_WAKEUP delay; (monotonic Vo fall)
@ 14.4 VDC
-1000
5
+1000
1000
mV
μs
%
16
0.5
200
1
3
0
0
100
7200
kW
V
ms
s
s
ms
μF
* With external capacitors 47
μF
(Electrolytic cap) & 1μF (X7R Ceramic cap) connected to measuring point
tech.support@psbel.com
350DNC40-12 Series
PARAMETER
Output Over-Current
Protection
Output Over-Voltage
Protection
Output Under-Voltage
Protection
Over-Temperature
Protection
Input and Output Reverse
Polarity Protection
Input Fuse Protection
Input Low Line Protection
Input Overvoltage
Protection
3
DESCRIPTION / CONDITION
Constant current
Latch type, max. OV duration 1ms
Max. UV duration 1s, than hiccup
Converter shutdown
Protective elements connected in series
DC Input: internal primary fuse
Turn ON threshold
Turn OFF threshold
Recovery: Vin re-cycling or
PS_WAKEUP
Liquid cooled model
Convection cooled model
Liquid cooled model
Convection cooled model
MIN
NOM
285
235
MAX
UNIT
A
17
6
80
50
18
8
V
V
°C
25
250
235
435
455
255
240
260
245
450
465
A
VDC
V
350DNC40-12-8G / 350DNC40-12-CG
350DNC40-12-8S103G
PARAMETER
CAN BUS SAE J1939
Remote sense signals
Address bits
PS_WAKEUP
HVIL function
CAN_SPEED
DESCRIPTION / CONDITION
250 kBit/s or 500 kBit/s available
Sense positive (+ SENSE)
Sense negative (- SENSE)
Internally pulled up to LOGIC HIGH (3.3 V, 100 kohm)
Logic input signal
HVIL pins shorted internally
CAN speed selection
Internally pulled up to LOGIC HIGH (3.3 V, 100 kohm)
CRITERION
0.5 V compensation
Adr. 0
Adr. 1
+12 V
Part of HV connector
Logic Low – 250kBit/s
Logic High – 500kBit/s
PARAMETER
Safety certification
Insulation
Radiated Emission
Electrostatic Discharge
Radiated Electromagnetic
Field
Electrical Fast Transient
RF Conducted Immunity
RF Disturbances Immunity
DESCRIPTION / CONDITION
Report number: E13*10R00*10R05*13824*00
Basic: 3000 VDC
Basic: 3000 VDC
UN ECE R10 4th Edition
IEC 61000-4-2
IEC 61000-4-3 (10 V/m),
SAE J1113/21(100 V/m)
IEC 61000-4-4, Level 2 (+/-2 kV, 2.5 kHz)
ISO 7637-2; ISO 7637-3, ISO 16750-2
Level 3 (10 V, 0.15…80 MHz, AM 80%, 1kHz)
SAE J1113-41
ISO11452-4 (1-400 MHz, 60 mA)
CRITERION
E-mark**
Input-to-Protective Earth
Input-to-Output
ESA level
Performance Criterion B
Performance Criterion B
Class B
Performance Criterion B
Performance Criterion A
Class A
Class B
** Excluding 350DNC40-12-8S103G model.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00668_AB
© 2017 Bel Power Solutions & Protection
4

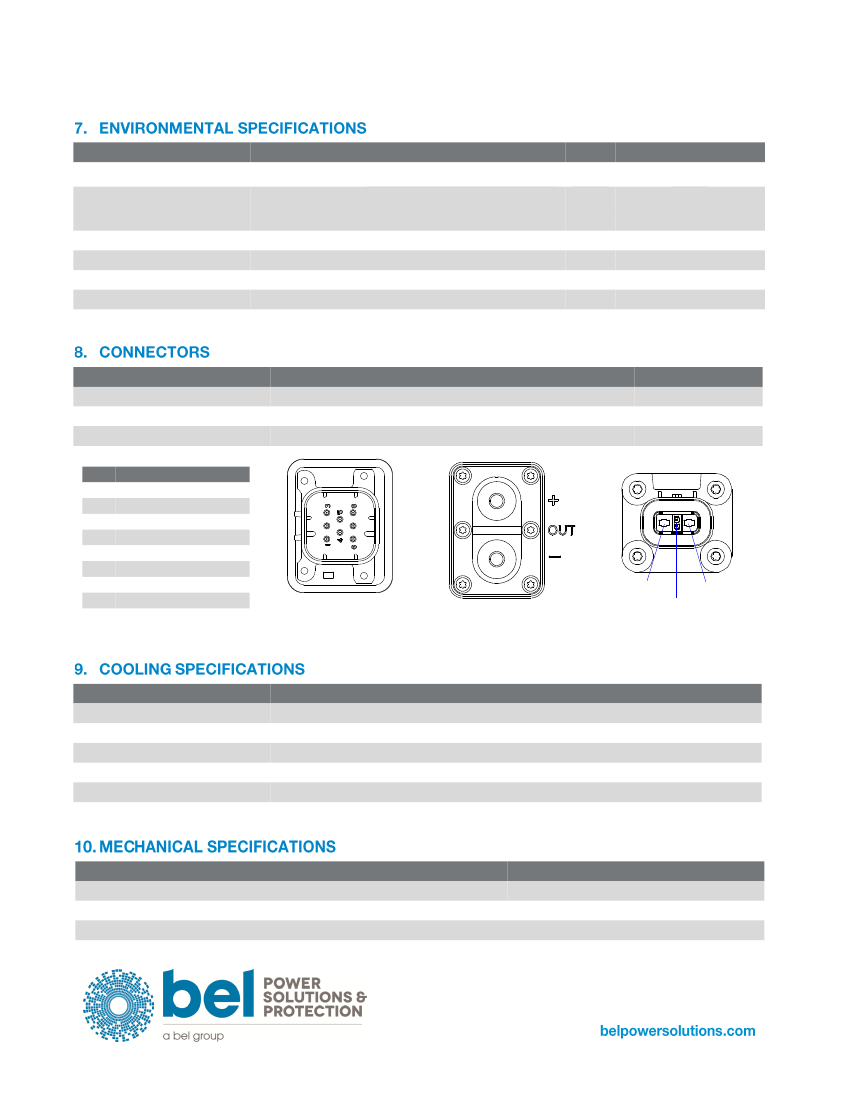

350DNC40-12 Series
DESCRIPTION / CONDITION
Operating: 62 kPa absolute pressure
Non-Operating:18.6 kPa absolute pressure
T_coolant with no derating
Liquid cooled:
T_amb @ full load, with no power dating
Convection cooled:
T_amb with no power derating
PARAMETER
Altitude
Operating Temperature
Storage Temperature
Humidity
Shock
Vibration
MIN
NOM
MAX
3600
12200
+70
+85
+45
+95
UNIT
m
°C
°C
-40
-40
-40
-40
SAE J1455
SAE J1455
SAE J1455, MIL-STD-202G
PARAMETER
Input Connector (IN)
Output Connector (OUT)
CAN BUS and Signal Interface (CTRL)
DESCRIPTION / CONDITION
High voltage connecter with HVIL function
Male dual terminal thread M8
Panel mounted
MANUFACTURER
TYCO
MPN
2103124-1, KEY A
TYCO
776276-1
PIN
1
2
3
4
5
6
7
8
SIGNAL DESCRIPTION
PS_WAKEUP
ADR0
ADR1
CAN_SPEED
CAN_H
CAN_L
+SENSE
-SENSE
+
Signal Connector
Output Connector
-
HVIL SHUNT
Input Connector
Signal Connector Pin Description
PARAMETER
Maximum Inlet Coolant Temperature
Coolant Medium/Mixture
Min. Coolant Flow
Max. coolant pressure
Max. pressure drop
DESCRIPTION / CONDITION
+70°C
50/50 Propylene or Ethylene Glycol/Water
0.0208l/s (0.33GPM)
20psi
1psi
PARAMETER
Dimensions (W x H x D)
Weight
Enclosure
LIQUID COOLED MODEL
270 x 113 x 341.5 mm
11 kg
IP65 and IP67
CONVECTION COOLED MODEL
350 x 187 x 341.5 mm
22 kg
tech.support@psbel.com
350DNC40-12 Series
5
TYCO
P/N 776276-1
GORE VENT
TYCO
P/N 2103124-1
30
M8x16mm DPT.
MAX. TORQUE 20Nm
10
O
33
50 ±0.5
2x MALE STUD CONNECTOR
THREAD 1-14UNS WITH O-RING
4x ELASTOMER DAMPERS

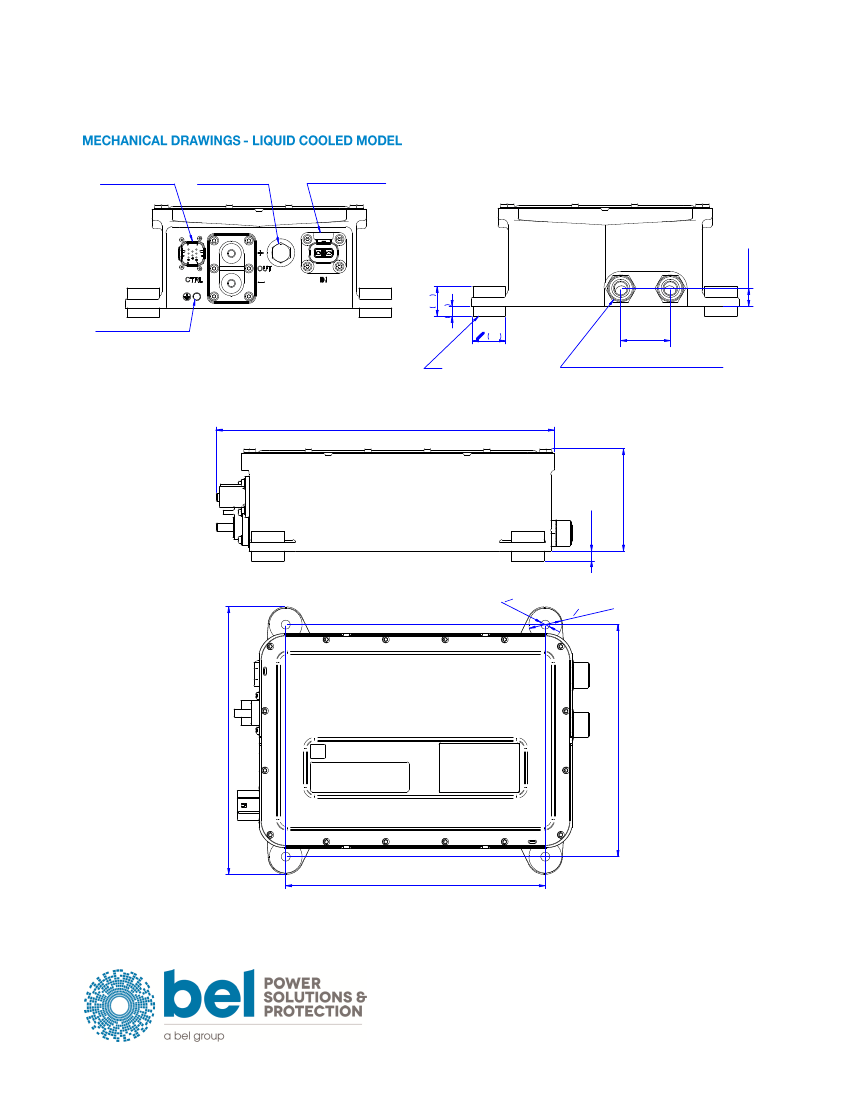

Front View
341.5 ±2
Rear View
Side View
4x 9
O
10 ±0.5
±0
O
33
.5
262 ±0.5
Top View
234 ±0.5
270 ±2
103.3 ±2
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00668_AB
© 2017 Bel Power Solutions & Protection
18 ±0.5
