CSX-750FCF40000000T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CSX-750FCF40000000T

CSX-750FCF40000000T: DescriptionOSC XO 40.000MHZ CMOS TTL SMD; CategoryPassive components oscillator; File Size180KB，2 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric View All

CSX-750FCF40000000T Overview

OSC XO 40.000MHZ CMOS TTL SMD

CSX-750FCF40000000T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CITIZEN
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	CSX-750F
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	75 MHz
Minimum operating frequency	40 MHz
Nominal operating frequency	40 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.6mm
power supply	5 V
Certification status	Not Qualified
longest rise time	6 ns
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

CRYSTAL CLOCK OSCILLATORS

RoHS compliant

(SMD

・

Ceramic Package)

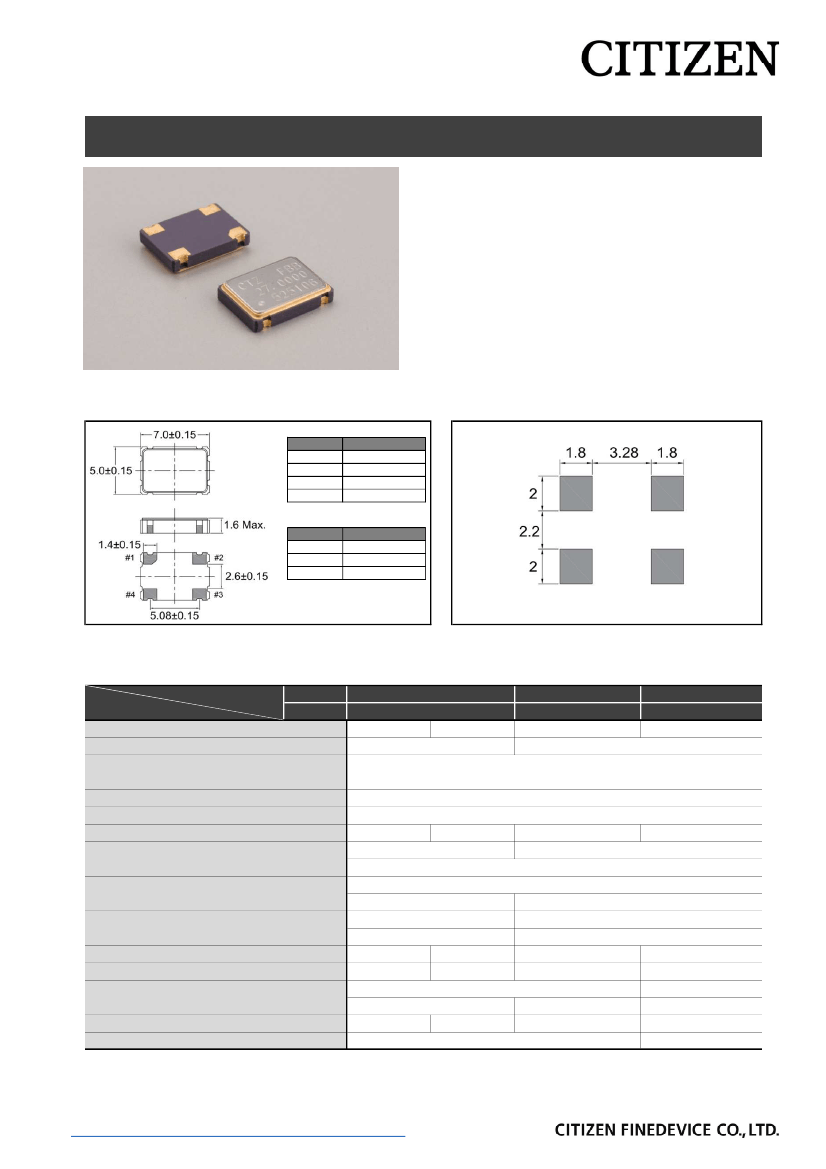

CSX-750F

■

FEATURES

1,000pcs/reel

● Frequency range : 1.0 ½ 80.0MH½

● External dimensions (mm)

　 L : 7.0 x W : 5.0 x H : 1.6

● Applications

　　Consumer products

■

DIMENSION

[mm]

Pin Assignment

Terminal

Connection

OE or Stand By

GND

OUTPUT

Vdd

Function

#1 Input

High

Open

Low

■

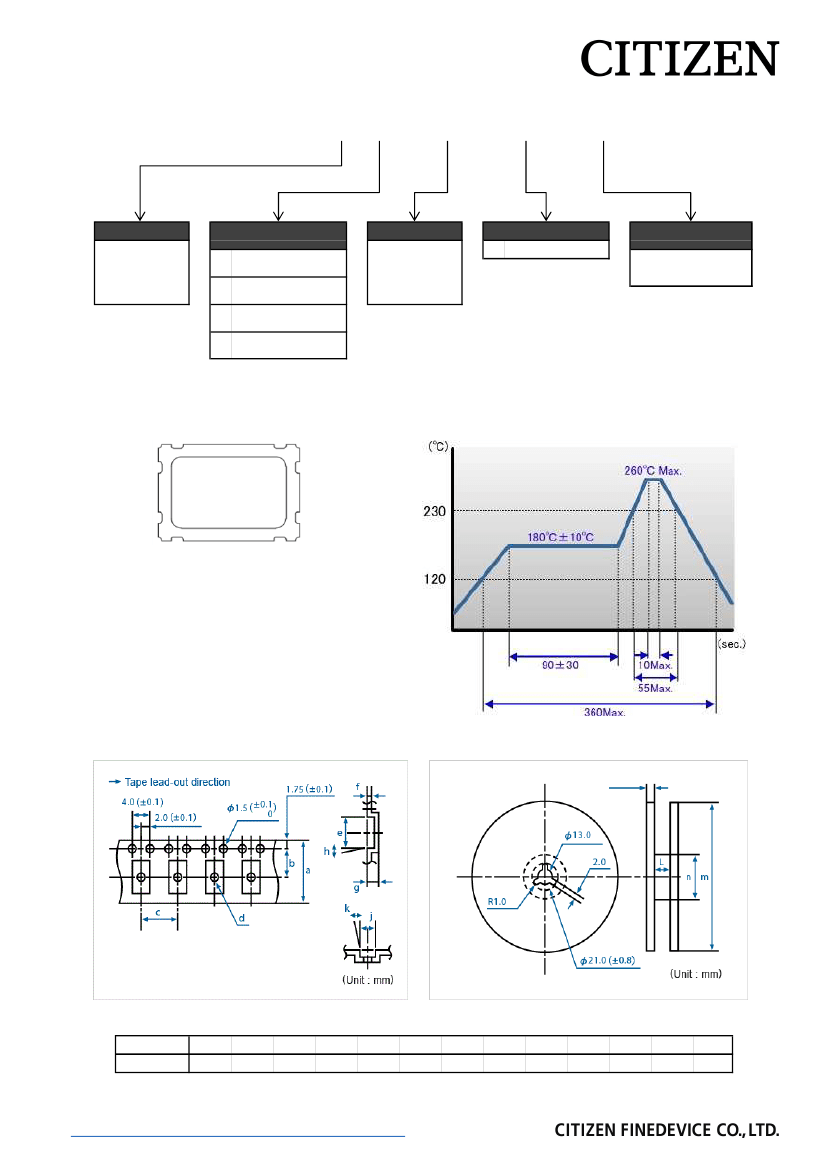

SOLDER PAD LAYOUT

[mm]

#3 Output Condition

Oscillation out

Oscillation stop

■

STANDARD SPECIFICATIONS

Model

Item

Frequency Range

Supply Voltage

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Current consumption

TTL level (1.4V)

Duty

CMOS level (1/2 Vdd)

Output Voltage

TTL

Output Load

CMOS

Rise and Fall Time

Start-up time

Input Voltage

Disable current

Stand-by current

0.8V Max.

10mA Max.

20mA Max.

－

0.4V Max.

5mA Max.

0.3Vdd Max.

－

10μA Max.

50pF Max.

8 nsec Max.

4 msec Max.

6 nsec Max.

10 msec Max.

2.0V Min.

8 nsec Max.

4 msec Max.

30pF Max.

6 nsec Max.

10 msec Max.

0.7Vdd Min.

0.4V Max.

10TTL Max.

0.1Vdd Max.

－

45½55%

0.9Vdd Min.

25mA Max.

45mA Max.

(＊)

E：±50ppm（-40℃ ½ +85℃), F：±100ppm（-40℃ ½ +85℃)

-20℃ ½ +70℃ / （-40℃ ½ +85℃)

-55℃ ½ +125℃

15mA Max.

－

25mA Max.

*Model is determined by selection of OE/ST functions, frequency stability, and supply voltage.

CSX-750FC (＊)

CSX-750FB (＊)

＊

STAND-BY

CSX-750FJ (＊)

＊

1.8432½39.999MH½ 40.000½75.000MH½

1.8432½39.999MH½

40.000½80.000MH½

Vdd：5.0V±0.5V

Vdd：3.3V±0.3V

B：±50ppm（-20℃ ½ +70℃), C：±100ppm（-20℃ ½ +70℃)

40½60%

http://cfd.citizen.co.jp/english/prod-tech/product/cvo_top.html
