GRPB372VWQP-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> GRPB372VWQP-RC

GRPB372VWQP-RC: DescriptionCONN HEADER .050" 74POS; CategoryThe connector; File Size253KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

GRPB372VWQP-RC Overview

CONN HEADER .050" 74POS

GRPB372VWQP-RC Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.050"（1.27mm）
Number of pins	74
Number of rows	2
Line spacing - patching	0.050"（1.27mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.118"（3.00mm）
Contact length - terminal	-
Overall contact length	-
Insulation height	0.039"（1.00mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact Surface Preparation - Column	gold
Contact material	brass
Insulation Materials	Polyamide (PA9T), Nylon 9T
characteristic	board guide
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	-
Rated current	1A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	flash memory
application	-

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

1451

1660

1871

DESCRIPTION

INIIAL RELEASE

ADD TOLERANCE TO TABLE

UPDATE DRAWING VIEWS, TEXT & TOLERANCE

BLOCK

DATE

08/13/07

04/15/08

12/08/08

RAH

ASK

.084 2.14

.118 3.00

.039 1.00

.091 2.30

.050 1.27

.016 0.40

02-20, 0.20mm MAX.

21-50, 0.30mm MAX.

NOTES:

1. INSULATOR MATERIAL: NYLON 9T.

*PROCESSING TEMPERATURE = 260° C FOR 10 SEC.

2. CONTACT MATERIAL: BRASS.

3. PLATING: GOLD FLASH OVERALL.

4. OPERATING TEMPERATURE: -40°C TO +105° C.

5. INSULATION RESISTANCE: 5000 MEGA OHM MIN.

6. CONTACT RESISTANCE: 20 MILLI OHM MAX.

7. DIELECTRIC WITHSTANDING: AC 500V.

8. UL FLAMMABILITY RATING: 94V-0.

9. CURRENT RATING: 1 AMP.

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

.050 1.27

.028±.002 0.70±0.05

RECOMMENDED PCB HOLE LAYOUT

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR:

.XX= .012 [.30]

.XXX= .008 [.20]

.XXXX= ..004 [.10]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

12/08/08

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

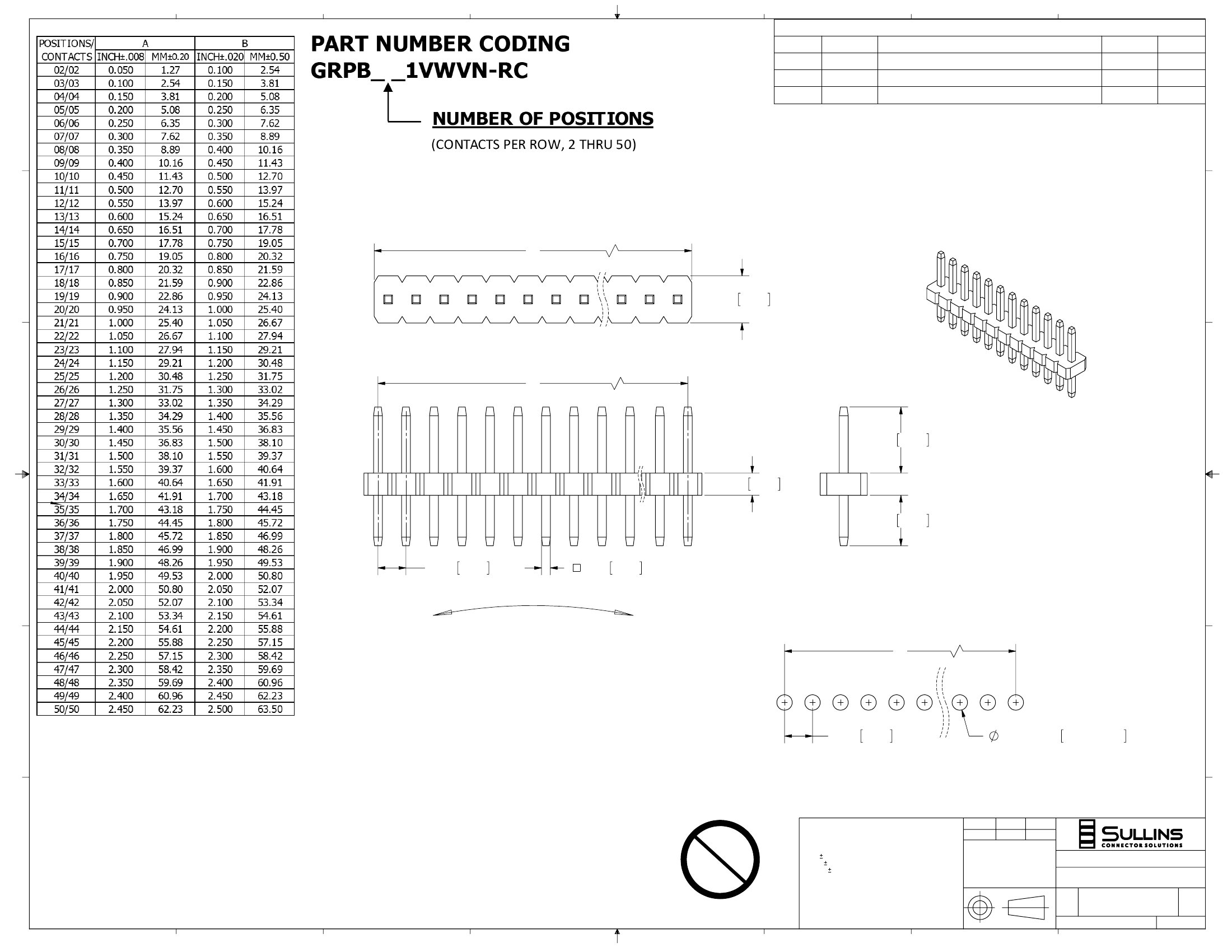

.050" SINGLE ROW MALE HEADER, ST

GRPB_ _1VWVN-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 8:1

REV

10957

SHEET 1 OF 1

FILE NAME: Z:\COMPONENTS\Taiwan\10957, GRPB_ _1VWVN-RC PRINT: 2/2/2009
