MTGEZW-01-0000-0N00G035H datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> MTGEZW-01-0000-0N00G035H

MTGEZW-01-0000-0N00G035H: DescriptionLED EASYWHT WARM WHT 3500K 2SMD; CategoryLED optoelectronic/LED; File Size1MB，18 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

MTGEZW-01-0000-0N00G035H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTGEZW-01-0000-0N00G035H	-	-	View	Buy Now

MTGEZW-01-0000-0N00G035H Overview

LED EASYWHT WARM WHT 3500K 2SMD

MTGEZW-01-0000-0N00G035H Parametric

Parameter Name	Attribute value
color	white, warm color
CCT（K）	3500K 2nd order MacAdam ellipse
Flux, current at 85°C - Test	540 lm（520 lm ~ 560 lm）
Flux, current at 25°C - Test	-
Current - Test	185mA
Voltage - Forward (Vf) (Typical)	36V
Lumens/Watt at different test currents	81 lm/W
CRI (high color rendering index)	77
Current - maximum	700 mA
perspective	120°
Installation type	surface mount
Package/casing	3535 (9090 exposed pad)
Supplier device packaging	SMD
size/dimensions	0.350" long x 0.350" wide (8.90mm x 8.90mm)
Height - Installation (maximum)	0.201"（5.10mm）
Package thermal resistance	1.5°C/W

Preview

Download Datasheet

View All

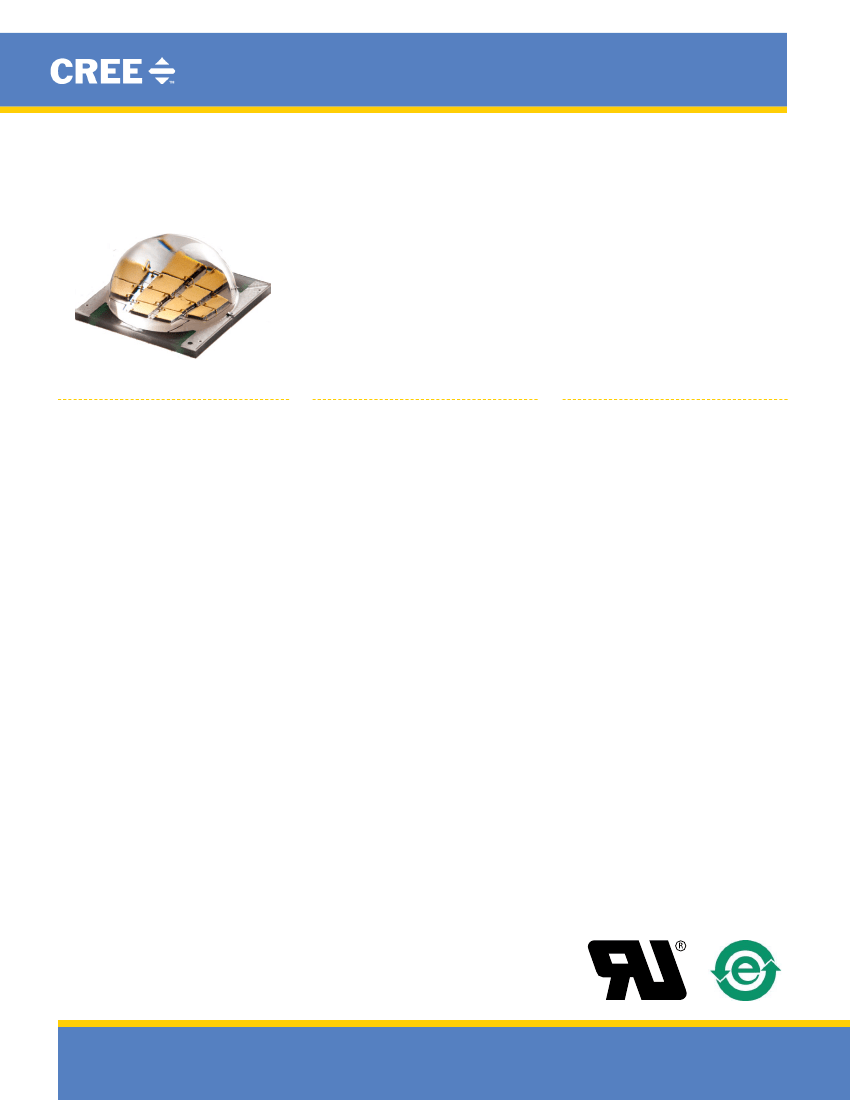

CLD-DS36 Rev 9G

Product family data sheet

Cree

XLamp

MT-G EasyWhite

LEDs

ProDuCT DEsCriPTion

The XLamp

MT-G easyWhite

LeD

maximizes lumen density, eliminates

chromaticity

binning

and

enables

luminaire and bulb manufacturers to

deliver consistent color and high‑efficacy

light output in a new, compact, multi-die

package. XLamp MT-G easyWhite LeDs

can reduce LeD-to-LeD color variation

to within a 2-step MacAdam ellipse,

94% smaller than the total area of the

corresponding ANSI C78.377 color region.

The XLamp MT-G easyWhite LeD is the

perfect choice for lighting applications

where high luminous flux output is

required from a single, small point source.

example

applications

include:

LeD

retrofit bulbs, commercial/retail display

spotlights, and other indoor general

illumination applications.

FEATurEs

•

Cree easyWhite color temperatures

from 2700 K to 5000 K CCT

Wide range of operating power - up

to 25 W

85 °C binning and characterization

Two voltage options: 6 V, 36 V

Low effective thermal resistance:

1.5 °C/W

High lumen density

Wide viewing angle: 120°

80‑minimum CRI at 2700 K and

3000 K CCT

85‑ and 90‑minimum CRI available in

2700 K and 3000 K CCT

electrically neutral thermal path

RoHS and ReACh compliant

UL recognized component

(e349212)

TAbLE oF ConTEnTs

Characteristics ....................................... 2

Flux Characteristics, easyWhite

Order

Codes and Bins ‑ 6 V

.............................. 3

Flux Characteristics, easyWhite

Order

Codes and Bins ‑ 36 V

............................

Relative Spectral Power Distribution .... 7

Relative Luminous Flux vs. Junction

Temperature ........................................... 7

electrical Characteristics ....................... 8

Relative Luminous Flux vs. Current....... 9

Typical Spatial Distribution.................. 10

Performance Groups – Brightness ..... 10

Performance Groups – Chromaticity.. 11

Cree easyWhite

Color Temperatures

Plotted on the 1931 CIe Curve ............ 12

Bin and Order Code Formats ............... 12

Reflow Soldering Characteristics

........ 13

Notes .................................................... 14

Mechanical Dimensions ...................... 16

Tape and Reel ....................................... 17

Packaging ............................................. 18

APPLiCATions

•

MR, PAR and other directional retrofit

bulbs

Commercial/residential directional

lighting

General illumination

WWW.CREE.Com/XLAmp

•

, XLamp

and

EasyWhite

are registered trademarks and the Cree logo is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
