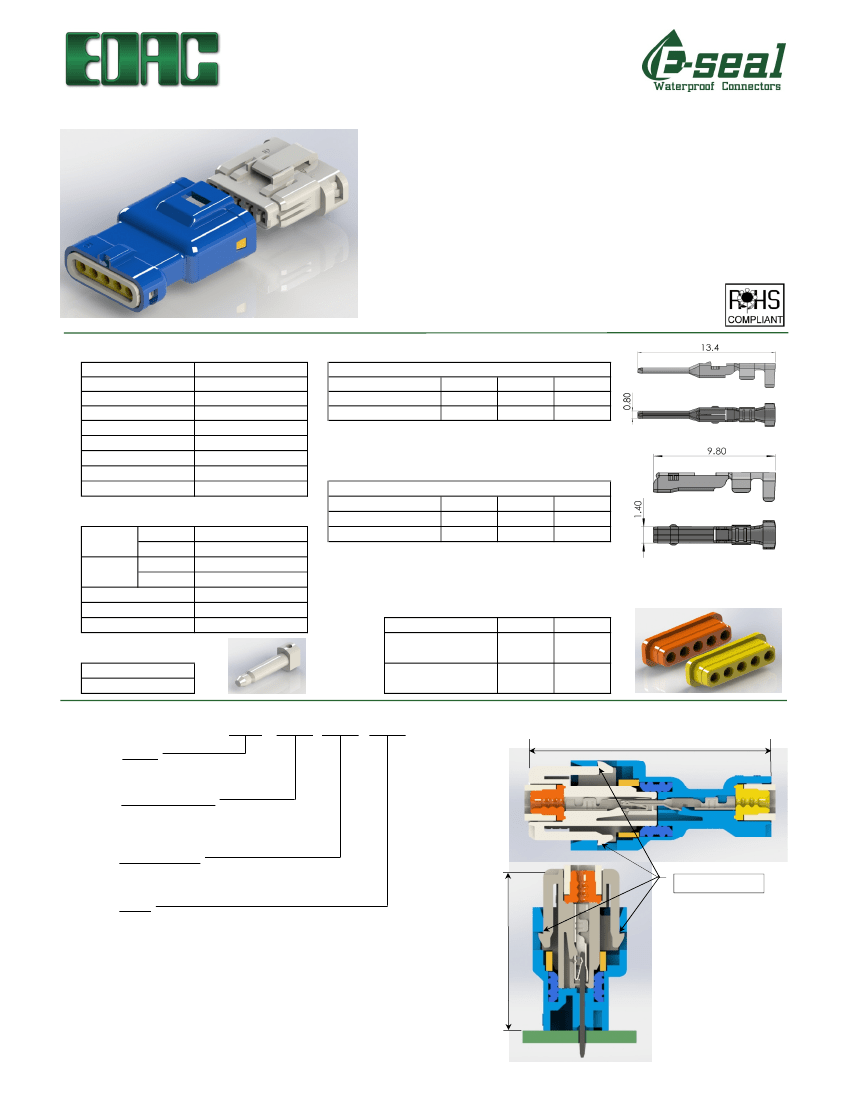

SERIES 560
Wire to Wire / Wire to Board 2.5mm Pitch
•
•
•
•
•
•
•
•
•
Specifications:
No. of Positions
Pitch
Rated Voltage
Rated Current
Withstanding Voltage
Contact Resistance
Insulation Resistance
Temperature Range
PCB Thickness
2, 3, 5P
2.5mm
250V
3A max
1000V AC (rms)
15 mΩ
max
1000 MΩ min./DC500V
2.5mm Pitch, Rated Current: 3A max
Fully Waterproof with Double Latch Solution
Available in Wire-to-Wire and Wire-to-Board Options
Seals Preassembled into Housing; No External Sealing
Required available in 2, 3, or 5 Positions
True Crimp and Poke Solution
Waterproofing Cap available to cover holes of wire seal
Internal Polarization to Prevent Mismating
Available with wire already installed
Waterproof Grade IP67 Certified
Crimp Contact:
Part No
565-290-731
565-290-711
Male Contact (Pin)
Ins. Dia.
AWG#
Max. Ø1.7
20-22
Max. Ø1.6
22-28
Pcs/Reel
8,000
8,000
**Crimp Contacts are also available in strips of 60pcs.
Contact EDAC for more information.
Female Contact (Socket)
Part No
AWG#
Ins. Dia.
565-290-741
20-22
Max. Ø1.7
565-290-721
22-28
Max. Ø1.6
-40°C to +105°C
1.6mm
Materials:
Crimp &
Housing
Poke
Contact
PCB
Housing
Header
Contact
Contact Plating
Wire & Housing Seals
Waterproofing Cap
PBT, UL 94V-0
Phosphor Bronze
PBT with Glass, UL 94V-0
Pcs/Reel
8,000
10,000
Brass
Tin Plating
Silicone Rubber
PBT, UL 94V-0
**Wire seals, housing seals and retainers are already
pre-assembled in the connector.
Rear Gasket (Wire Seal):
Applicable Contact
565-290-711
565-290-721
565-290-731
565-290-741
Wire O.D.
Ø1.00 to
Ø1.30
Ø1.30 to
Ø1.70
Color
Yellow
Orange
Waterproofing Cap:
Part No.
565-200-100
Ordering Code:
560-002-000-110

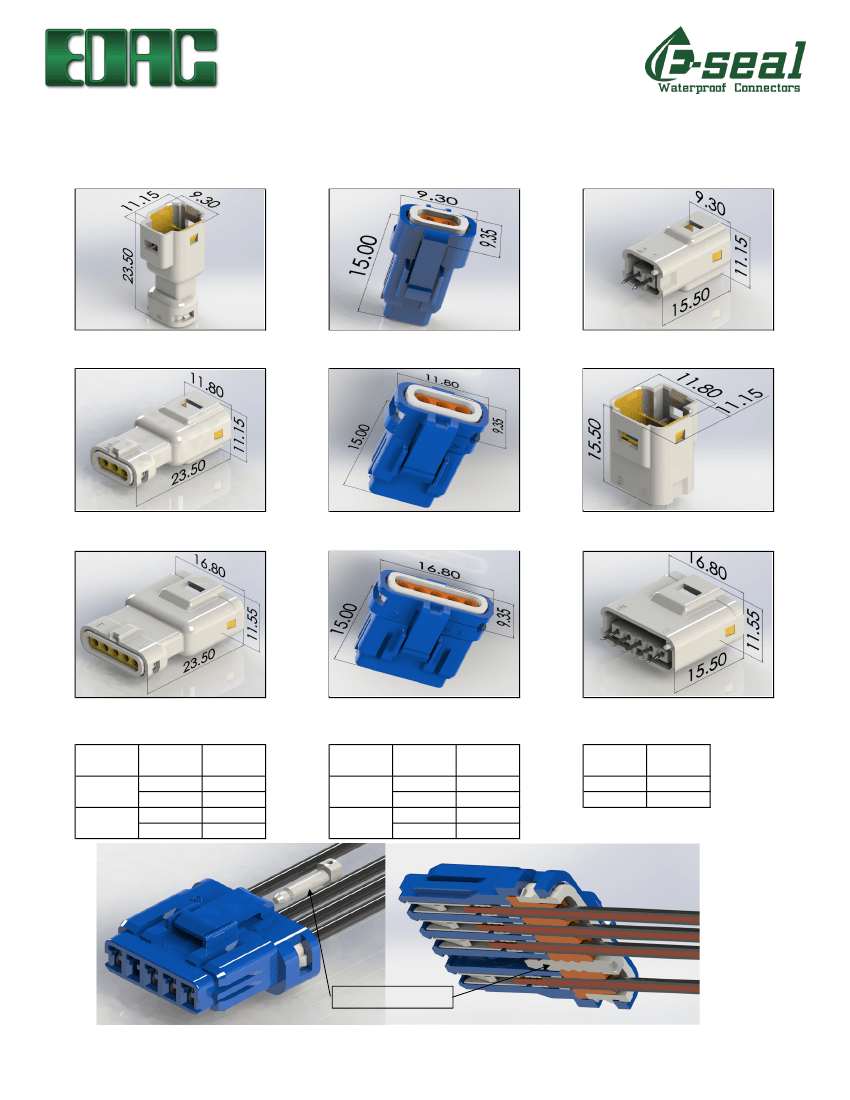

Assembly Layout
28.40
SERIES:
560, WIRE TO WIRE
WIRE TO BOARD
NO. OF CONTACTS:
002 - 2 CONTACTS
003 - 3 CONTACTS
005 - 5 CONTACTS
CONTACT CODE:
000 - NO CONTACTS (ONLY FOR CRIMP CONTACTS)
420 - BOARD MOUNT CONTACTS
STYLE:
101 - WHITE MALE HOUSING (ONLY FOR BOARD MOUNT CONTACTS)
301 - BLUE MALE HOUSING (ONLY FOR BOARD MOUNT CONTACTS)
110 - WHITE MALE HOUSING FOR WIRE INSULATION Ø1.00 TO Ø1.30
310 - BLUE MALE HOUSING FOR WIRE INSULATION Ø1.00 TO Ø1.30
111 - WHITE MALE HOUSING FOR WIRE INSULATION Ø1.30 TO Ø1.70
311 - BLUE MALE HOUSING FOR WIRE INSULATION Ø1.30 TO Ø1.70
210 - WHITE FEMALE HOUSING FOR WIRE INSULATION Ø1.00 TO Ø1.30
410 - BLUE FEMALE HOUSING FOR WIRE INSULATION Ø1.00 TO Ø1.30
211 - WHITE FEMALE HOUSING FOR WIRE INSULATION Ø1.30 TO Ø1.70
411 - BLUE FEMALE HOUSING FOR WIRE INSULATION Ø1.30 TO Ø1.70
Double Latch
www.edac.net
Page 2
