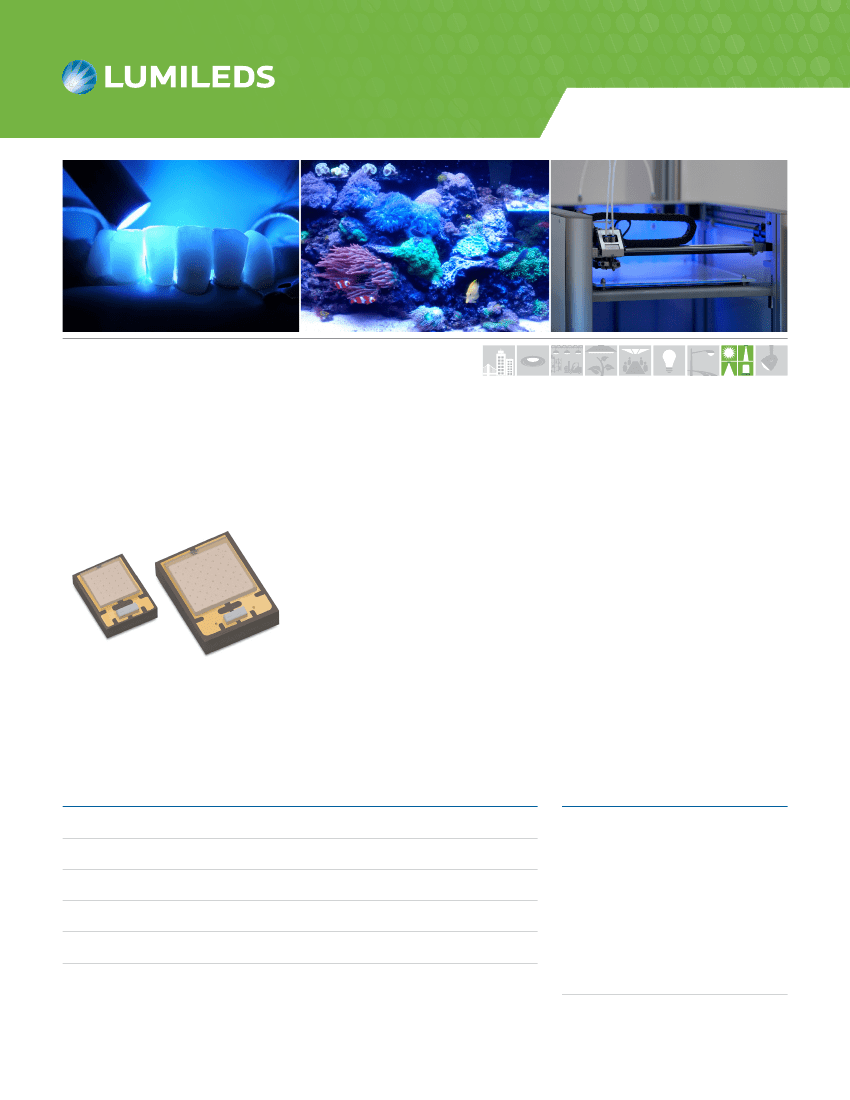

luXEon uV u line
Highest power density, superior efficiency, powered
by leading Chip Scale Package (CSP) technology
At a micro package size compared to other ultraviolet and violet LEDs,
LUXEON UV U Line LEDs are SMT devices that can be assembled in
tight arrays with spacing of only 200 microns, which enables high power
density (W/cm²) systems for superior efficiency and design freedom. These
products are undomed for precise optical control and include a portfolio of
1mm² and 2mm² die sizes covering ultraviolet and violet light. The superior
power density, excellent robustness of CSP technology and real world
efficacy enable leading performance and efficient solution development in
a wide variety of UV specialty lighting applications.
FEaturEs and BEnEFIts
Offering ultraviolet in 380-400nm and violet (400–420nm) for a range of options
Small 2.2 to 3.6mm² SMT footprint enables highest W/cm
2
power density,
design freedom
1A per mm
2
die size maximum drive current allows more power per LED
Up to 50%+ efficiency reduces heat output
AlN package R
th
as low as 1.8 K/W for better thermal management
PrImary aPPlIcatIons
Specialty Lighting
– Analytical Instrumentation
– Curing
– Medical
– Security
– UV Photoreaction
PB178 LUXEON UV U Line Product Brief ©2018 Lumileds Holding B.V. All rights reserved.
LUXEON UV U1 product performance at 500mA and 1000mA, T
j
=25°C.
PEaK
WaVElEngth
[1]
415 ±5nm
405 ±5nm
tyPIcal radIomEtrIc PoWEr
[2]
(mW)
500ma
725
675
725
625
675
425
475
1000ma
1378
1283
1378
1188
1283
808
903
Part numBEr
LHUV-0415-A070
LHUV-0405-A065
LHUV-0405-A070
LHUV-0395-A060
LHUV-0395-A065
LHUV-0385-A040
LHUV-0385-A045
395 ±5nm
385 ±5nm
Notes:
1. Lumileds maintains a tolerance of ±2nm for peak wavelength measurements.
2. Lumileds maintains a tolerance of ±10% for radiometric power measurements.
LUXEON UV U2 product performance at 1000mA and 2000mA, T
j
=25°C.
PEaK
WaVElEngth
[1]
410–420nm
400–410nm
390–400nm
380–390nm
tyPIcal radIomEtrIc PoWEr
[2]
(mW)
1000ma
1450
1300
1300
700
900
2000ma
2610
2340
2340
1260
1620
Part numBEr
L1F3-U410200014000
L1F3-U400200012000
L1F3-U390200012000
L1F3-U380200006000
L1F3-U380200008000
Notes:
1. Lumileds maintains a tolerance of ±2nm for peak wavelength measurements.
2. Lumileds maintains a tolerance of ±10% for radiometric power measurements

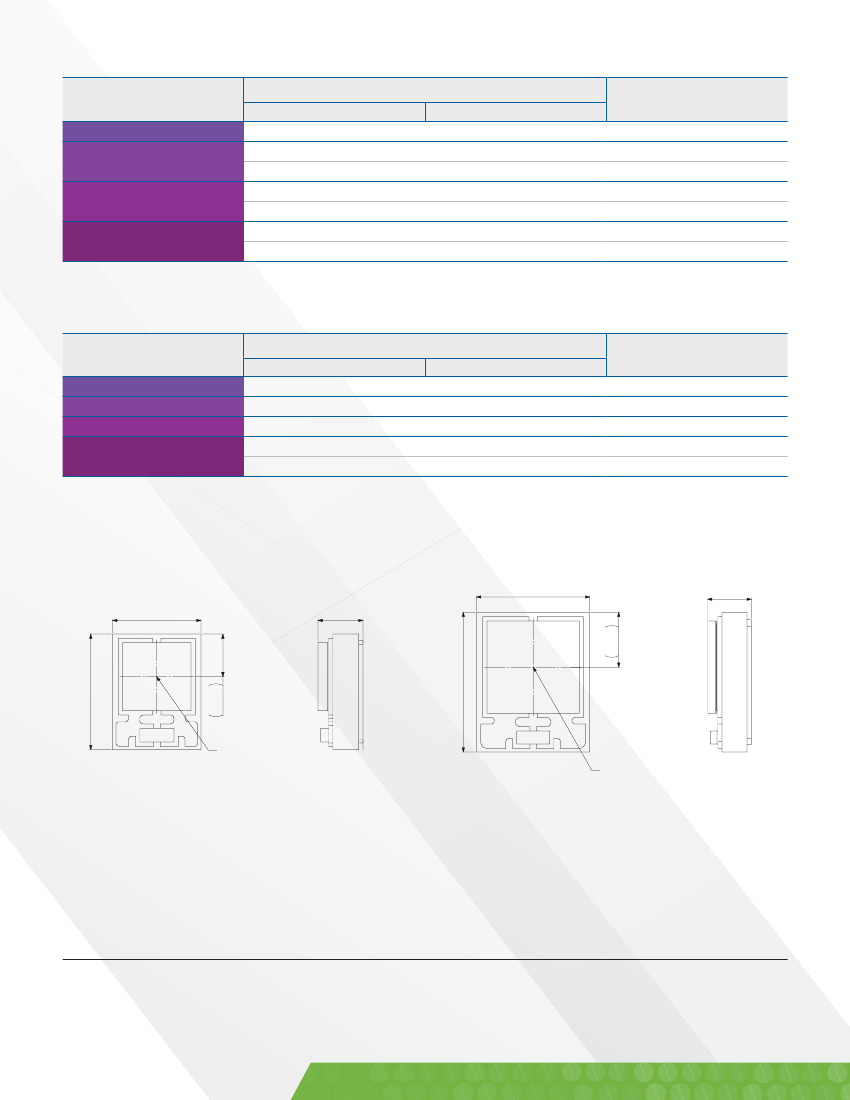

Mechanical Dimensions.
1.72 ±0.10*
0.66 ±0.10*
0.830
1.30 ±0.10*
0.66 ±0.10*
1.70 ±0.10*
0.625
TOP VIEW
Theoretical
Optical
Center
LUXEON UV U1
2.12 ±0.10*
SIDE VIEW
TOP VIEW
Theoretical
Optical
Center
LUXEON UV U2
SIDE VIEW
Notes:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
©2018 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds
Holding B.V. in the United States and other countries.
lumileds.com
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any other damages,
direct, indirect or consequential, resulting from the use of the provided information and data. Although Lumileds
Holding B.V. and/or its affiliates have attempted to provide the most accurate information and data, the materials
and services information and data are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates warrants
or guarantees the contents and correctness of the provided information and data. Lumileds Holding B.V. and its
affiliates reserve the right to make changes without notice. You as user agree to this disclaimer and user agree-
ment with the download or use of the provided materials, information and data. A listing of Lumileds product/
patent coverage may be accessed at
lumileds.com/patents.
PB178 LUXEON UV U Line
Product Brief 20180402
