Data Sheet No. PD60172 Rev.G
IR2181
(
4
)(S) & (PbF)
HIGH AND LOW SIDE DRIVER
Features
•
Floating channel designed for bootstrap operation
•
•
•
•
•
•
•
•
Fully operational to +600V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout for both channels
3.3V and 5V input logic compatible
Matched propagation delay for both channels
Logic and power ground +/- 5V offset.
Lower di/dt gate driver for better noise immunity
Output source/sink current capability 1.4A/1.8A
Also available LEAD-FREE (PbF)
Packages
8-Lead PDIP
IR2181
14-Lead PDIP
IR21814
8-Lead SOIC
IR2181S
14-Lead SOIC
IR21814S
IR2181/IR2183/IR2184 Feature Comparison
Description
Part
The IR2181(4)(S) are high voltage,
2181
COM
high speed power MOSFET and IGBT
HIN/LIN
no
none
180/220 ns
21814
VSS/COM
drivers with independent high and low
2183
Internal 500ns
COM
HIN/LIN
yes
180/220 ns
side referenced output channels. Pro-
21834
Program 0.4 ~ 5 us
VSS/COM
2184
Internal 500ns
COM
prietary HVIC and latch immune
IN/SD
yes
680/270 ns
21844
Program 0.4 ~ 5 us
VSS/COM
CMOS technologies enable rugge-
dized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to
3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-
conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side
configuration which operates up to 600 volts.
Input
logic
Cross-
conduction
prevention
logic
Dead-Time
Ground Pins
Ton/Toff

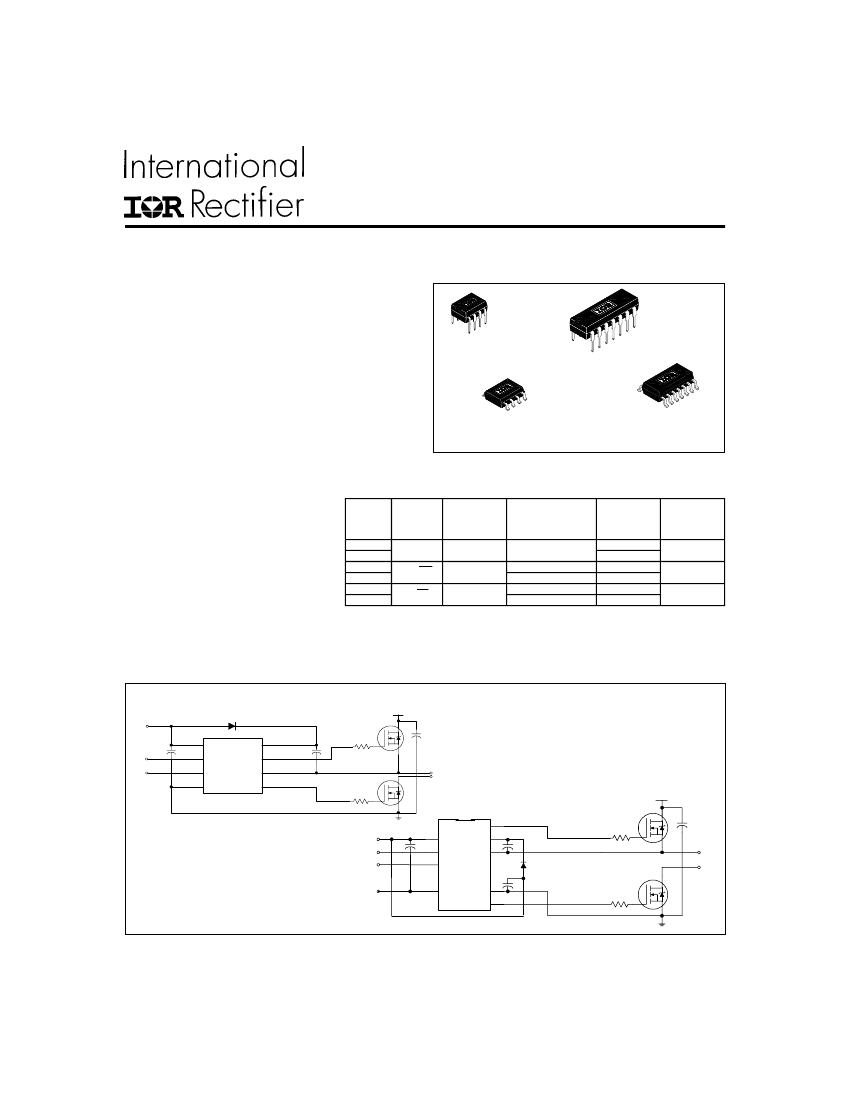

Typical Connection
up to 600V
V
CC
V
CC
HIN
LIN
V
B
HO
V
S
LO
TO
LOAD
HIN
LIN
COM
IR2181
IR21814
HO
V
CC
HIN
LIN
up to 600V
V
CC
HIN
LIN
V
B
V
S
TO
LOAD
(Refer to Lead Assignments for correct pin
configuration). This/These diagram(s) show
electrical connections only. Please refer to
our Application Notes and DesignTips for
proper circuit board layout.
V
SS
V
SS
COM
LO
www.irf.com
1
IR2181
(
4
) (S) & (PbF)
Absolute Maximum Ratings
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage param-
eters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are measured
under board mounted and still air conditions.
Symbol
V
B
V
S
V
HO
V
CC
V
LO
V
IN
V
SS
dV
S
/dt
P
D
Definition
High side floating absolute voltage
High side floating supply offset voltage
High side floating output voltage
Low side and logic fixed supply voltage
Low side output voltage
Logic input voltage (HIN & LIN - IR2181/IR21814)
Logic ground (IR21814 only)
Allowable offset supply voltage transient
Package power dissipation @ T
A
≤
+25°C
(8-lead PDIP)
(8-lead SOIC)
(14-lead PDIP)
(14-lead SOIC)
Min.
-0.3
V
B
- 25
V
S
- 0.3
-0.3
-0.3
V
SS
- 0.3
V
CC
- 25
—
—
—
—
—
—
—
—
—
—
-50
—
Max.
625
V
B
+ 0.3
V
B
+ 0.3
25
V
CC
+ 0.3
V
SS
+ 10
V
CC
+ 0.3
50
1.0
0.625
1.6
1.0
125
200
75
120
150
150
300
Units
V
V/ns
W
Rth
JA
Thermal resistance, junction to ambient
(8-lead PDIP)
(8-lead SOIC)
(14-lead PDIP)
(14-lead SOIC)
°C/W
T
J
T
S
T
L
Junction temperature
Storage temperature
Lead temperature (soldering, 10 seconds)
°C
Recommended Operating Conditions
The Input/Output logic timing diagram is shown in figure 1. For proper operation the device should be used within the
recommended conditions. The V
S
and V
SS
offset rating are tested with all supplies biased at 15V differential.
Symbol
VB
V
S
V
HO
V
CC
V
LO
V
IN
V
SS
T
A
Definition
High side floating supply absolute voltage
High side floating supply offset voltage
High side floating output voltage
Low side and logic fixed supply voltage
Low side output voltage
Logic input voltage (HIN & LIN - IR2181/IR21814)
Logic ground (IR21814/IR21824 only)
Ambient temperature
Min.
V
S
+ 10
Note 1
V
S
10
0
V
SS
-5
-40
Max.
V
S
+ 20
600
V
B
20
V
CC
V
SS
+ 5
5
125
Units
V
°C
Note 1: Logic operational for V
S
of -5 to +600V. Logic state held for V
S
of -5V to -V
BS
. (Please refer to the Design Tip
DT97-3 for more details).
Note 2: HIN and LIN pins are internally clamped with a 5.2V zener diode.
2
www.irf.com
IR2181
(
4
) (S) & (PbF)
Dynamic Electrical Characteristics
V
BIAS
(V
CC
, V
BS
) = 15V, V
SS
= COM, C
L
= 1000 pF, T
A
= 25°C.
Symbol
ton
toff
MT
tr
tf
Definition
Turn-on propagation delay
Turn-off propagation delay
Delay matching, HS & LS turn-on/off
Turn-on rise time
Turn-off fall time
Min.
—
—
—
—
—
Typ.
180
220
0
40
20
Max. Units Test Conditions
270
330
35
60
35
nsec
V
S
= 0V
V
S
= 0V
V
S
= 0V
V
S
= 0V or 600V
Static Electrical Characteristics
V
BIAS
(V
CC
, V
BS
) = 15V, V
SS
= COM and T
A
= 25°C unless otherwise specified. The V
IL
, V
IH
and I
IN
parameters are
referenced to V
SS
/COM and are applicable to the respective input leads HIN and LIN. The V
O
, I
O
and Ron parameters are
referenced to COM and are applicable to the respective output leads: HO and LO.
Symbol
V
IH
V
IL
V
OH
V
OL
I
LK
I
QBS
I
QCC
I
IN+
I
IN-
V
CCUV+
V
BSUV+
V
CCUV-
V
BSUV-
V
CCUVH
V
BSUVH
I
O+
I
O-
Definition
Logic “1” input voltage (IR2181/IR21814 )
Logic “0” input voltage (IR2181/IR21814)
High level output voltage, V
BIAS
- V
O
Low level output voltage, V
O
Offset supply leakage current
Quiescent V
BS
supply current
Quiescent V
CC
supply current
Logic “1” input bias current
Logic “0” input bias current
V
CC
and V
BS
supply undervoltage positive going
threshold
V
CC
and V
BS
supply undervoltage negative going
threshold
Hysteresis
Output high short circuit pulsed current
Output low short circuit pulsed current
Min. Typ. Max. Units Test Conditions
2.7
—
—
—
—
20
50
—
—
8.0
7.4
0.3
1.4
1.8
—
—
—
—
—
60
120
25
—
8.9
8.2
0.7
1.9
2.3
—
0.8
1.2
0.1
50
150
240
60
1.0
9.8
9.0
—
—
A
—
V
O
= 0V,
PW
≤
10
µs
V
O
= 15V,
PW
≤
10
µs
V
µA
V
V
CC
= 10V to 20V
V
CC
= 10V to 20V
I
O
= 0A
I
O
= 0A
V
B
= V
S
= 600V
V
IN
= 0V or 5V
V
IN
= 0V or 5V
V
IN
= 5V
V
IN
= 0V
www.irf.com
3
IR2181
(
4
) (S) & (PbF)

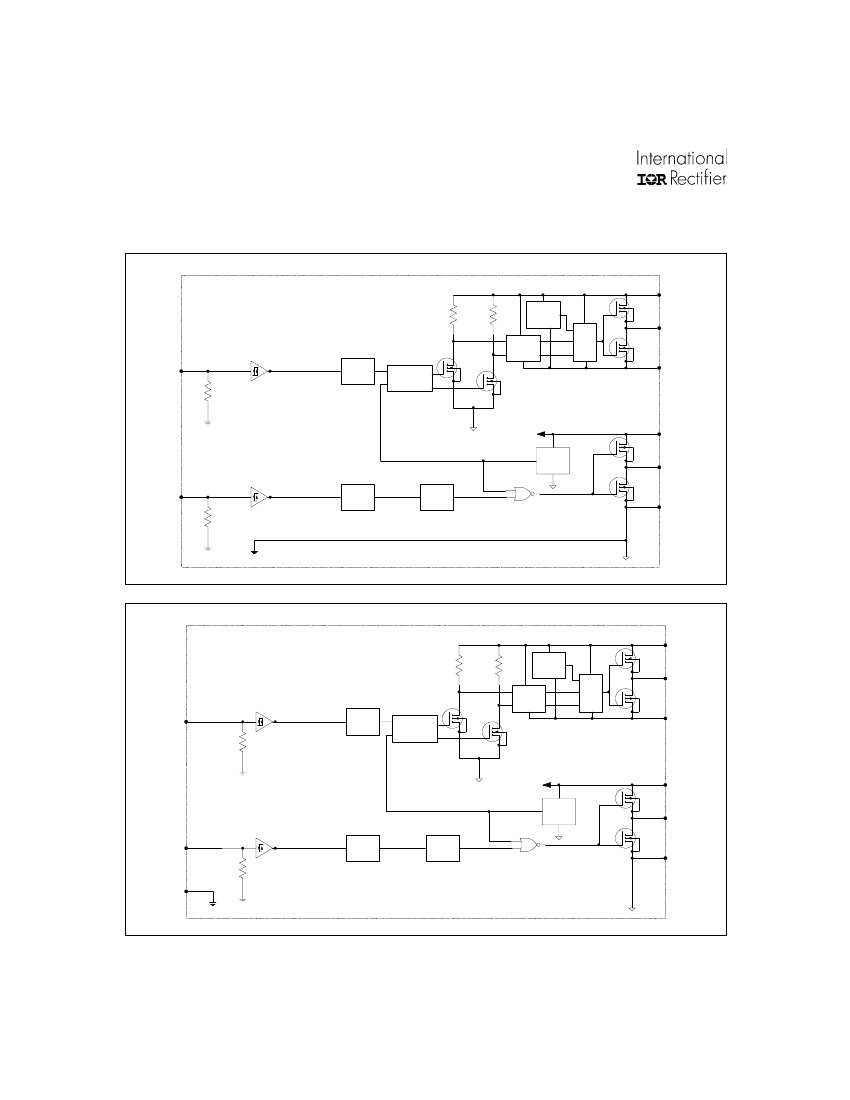

Functional Block Diagrams
VB
2181
HIN
VSS/COM
LEVEL
SHIFT
HV
LEVEL
SHIFTER
PULSE
GENERATOR
UV
DETECT
R
PULSE
FILTER
R
S
Q
HO
VS
VCC
UV
DETECT
LO
LIN
VSS/COM
LEVEL
SHIFT
DELAY
COM
VB
21814
HIN
VSS/COM
LEVEL
SHIFT
HV
LEVEL
SHIFTER
PULSE
GENERATOR
UV
DETECT
R
PULSE
FILTER
R
S
Q
HO
VS
VCC
UV
DETECT
LO
LIN
VSS/COM
LEVEL
SHIFT
DELAY
COM
VSS
4
www.irf.com
IR2181
(
4
) (S) & (PbF)
Lead Definitions
Symbol Description
HIN
LIN
VSS
V
B
HO
V
S
V
CC
LO
COM
Logic input for high side gate driver output (HO), in phase (IR2181/IR21814)
Logic input for low side gate driver output (LO), in phase (IR2181/IR21814)
Logic Ground (IR21814 only)
High side floating supply
High side gate drive output
High side floating supply return
Low side and logic fixed supply
Low side gate drive output
Low side return
Lead Assignments
1
2
3
4
HIN
LIN
COM
LO
VB
HO
VS
VCC
8
7
6
5
1
2
3
4
HIN
LIN
COM
LO
VB
HO
VS
VCC
8
7
6
5
8-Lead PDIP
8-Lead SOIC
IR2181
IR2181S
1
2
3
4
5
6
7
HIN
LIN
VSS
VB
HO
VS
COM
LO
VCC
1
4
13
1
2
3
HIN
LIN
VSS
VB
HO
VS
COM
LO
VCC
1
4
13
12
11
10
9
8
12
4
11
5
10
6
9
7
8
14-Lead PDIP
14-Lead SOIC
IR21814
www.irf.com
IR21814S
5
