3111400002: DescriptionELECTRIC FUSE, 4A, 250VAC, 1500A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size100KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

3111400002 Overview

ELECTRIC FUSE, 4A, 250VAC, 1500A (IR), INLINE/HOLDER

3111400002 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body height	20 mm
Body length or diameter	5.2 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	30 J
Manufacturer's serial number	311
Installation features	INLINE/HOLDER
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	5.2mm x 20mm
Pre-discharge time - minutes	5 ms
Rated breaking capacity	1500 A
Rated current	4 A
Rated voltage (AC)	250 V
Guideline	DIN 41577
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

INIATURE

M

INIATURE

F

USES

mm/

5x20 mm No. 311

Indicator,

Indicator, 250 V

Time-Current

Standard

Mittelträge (M)

DIN 41577, T.2

None

Specifications

Packaging

002: Pack (20 x 10 pcs.)

Characteristic

Materials

Approvals

Tube:

End Caps:

Ceramic

Nickel-plated brass

Temperature

Operating Temperature

Climatic Category

Stock Conditions

-40 ºC to +85 ºC (consider de-rating)

-40 ºC / +85 ºC / 21 days

(IEC 60068-1,-2-1,-2-2,-2-78)

+10 ºC to +60 ºC

relative humidity

≤

75 % yearly average,

without dew

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

, M, Current Rating, 250 V, G

Dimensions (mm)

Ausf. / type: 800mA ... 4A

Ø5,2

+0,1

- 0,2

Vibration Resistance

20

±0,5

Kappe mit Kennmelder

cap with indicator

Marking

Ausf. / type: 6,3A

Ø5,2

+0,1

- 0,2

20

±0,5

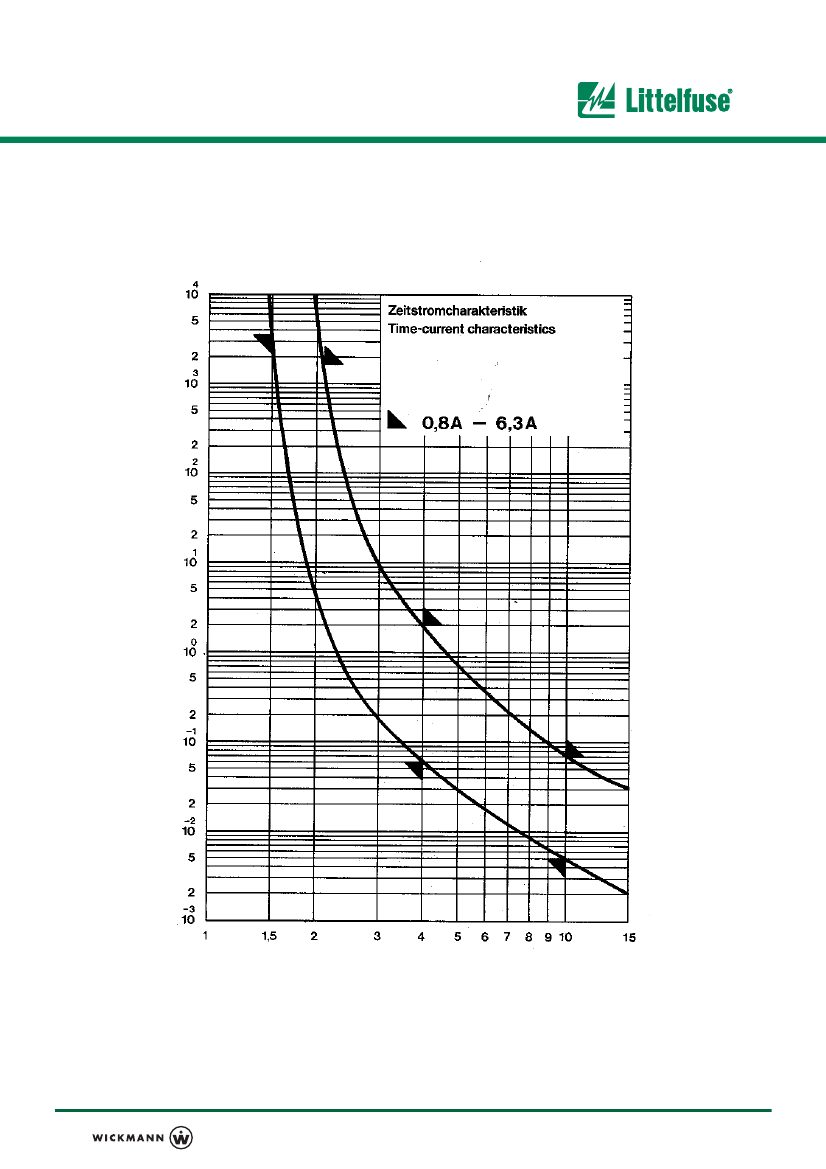

Limits for Pre-arcing Time

Rated Current

800 mA ... 6.30 A

1.5 x I

N

>1h

2.1 x I

N

< 30 min

2.75 x I

N

-

4 x I

N

60 ms ... 2 s

10 x I

N

5 ms ... 70 ms

Permissible continuous operating current is

≤

80 % at ambient temperature of 23 ºC (73.4 ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x

I

N

1.5 x

I

N

10 x

I

N

max. (mV)

max. (W)

min. (A

2

s)

800 mA

1A

1.25 A

1.6 A

2A

2.5 A

4A

6.3 A

1

0800

1100

1125

1160

1200

1250

1400

1630

250 V2

400

350

310

480

360

300

180

160

1.0

1.2

1.7

2.5

4.5

8.2

30.0

94.0

Approvals

1500 A @ 250 V AC

50 Hz

cos

ϕ

= 0.7

on request

None

1 without gauge stud

2 operating voltage

≥

10 V

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

050930

Qty.

Order-

Number

Series

311

Amp Code

Packaging

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

WebSite

www.littelfuse.com
