SFC-106-T2-L-D-A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SFC-106-T2-L-D-A

Preview

SFC-106-T2-L-D-A: Description.050'' X .050; CategoryThe connector The connector; File Size647KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SFC-106-T2-L-D-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SFC-106-T2-L-D-A	-	-	View	Buy Now

SFC-106-T2-L-D-A Overview

.050'' X .050

SFC-106-T2-L-D-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Objectid	1344630118
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
compound_id	156806021
Samacsys Description	12 Position, .050" Tiger Eye™, Dual-Row, Cost-Effective Reliable Socket Strip
Board mount options	LOCATING POSTS
body width	0.145 inch
subject depth	0.19 inch
body length	0.455 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
polarization key	LEFT
Rated current (signal)	2.9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

F-219

SFC–135–T2–L–D–A–K

SFC–120–T2–L–D–A

SFC–110–T1–L–D–A

(1.27 mm) .050"

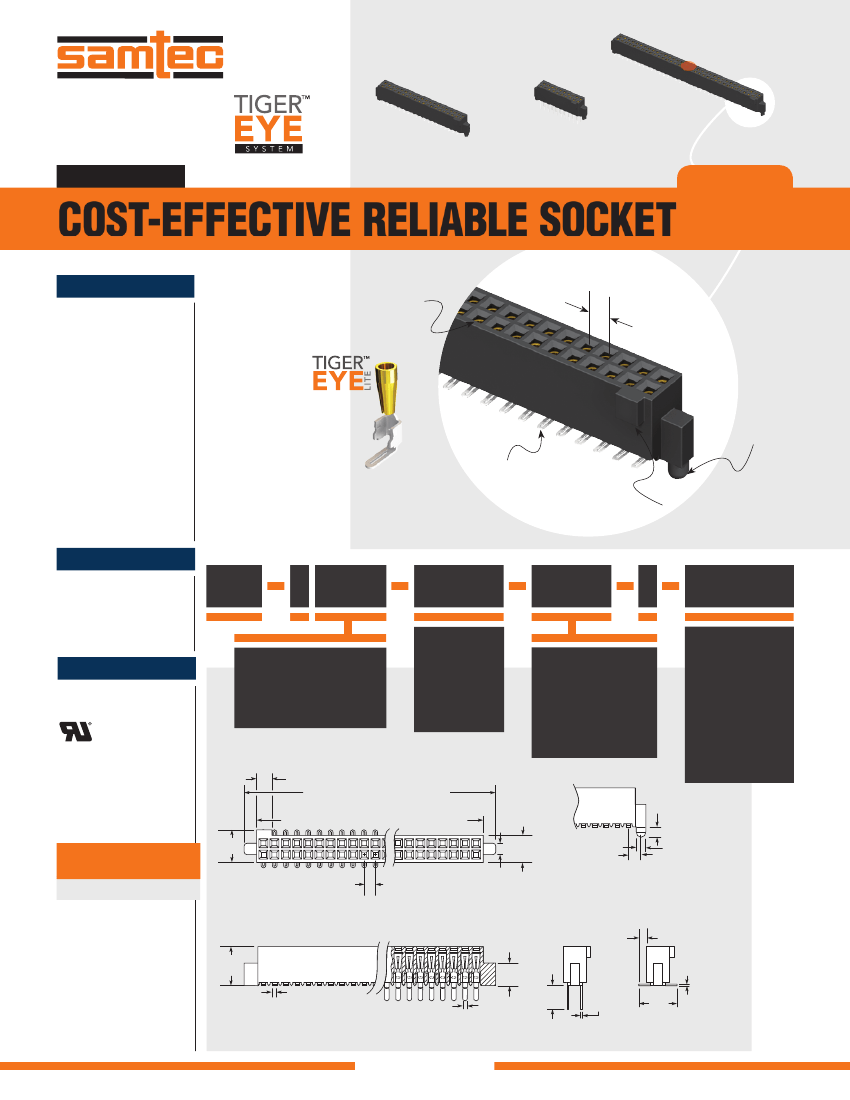

SFC SERIES

COST-EFFECTIVE RELIABLE SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?SFC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

3.1 A per pin

(2 pins powered)

Voltage Rating:

350 VAC mated with TFC

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(3.05 mm) .120" to

(4.06 mm) .160"

Max Cycles:

10,000 with 30 µ" (0.76 µm) Au

RoHS Compliant:

Yes

Board Mates:

TFC

Cable Mates:

TFSD, TFSDT

High-reliability

Tiger Eye™ LITE

contacts

(1.27 mm x 1.27 mm)

.050" x .050"

micro pitch

Alignment

pin option

Slotted SMT tails

Polarized

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (04-25)

(0.15 mm) .006" max (30-50)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

SFC

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

04, 05, 10,

15, 20, 25, 30,

35, 40, 45, 50

(Standard sizes)

= Through-hole

Tiger Eye

™

LITE

–T1

–T2

= Gold flash on contact,

Matte Tin on tail

–F

–L

= Alignment Pin

–A

–K

= Surface Mount

Tiger Eye

™

LITE

FILE NO. E111594

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

= (4.00 mm) .157" DIA

Polyimide film

Pick & Place Pad

(2.03)

.080

= Tape & Reel

(–T2 only)

(1.27)

.050

–TR

(1.27) .050 x No. of Positions + (3.94) .155

except for alignment pin option:

(1.27) .050 x No. of Positions + (3.17) .125

(1.27) .050 x No. of Positions + (0.38) .015

02

ALSO AVAILABLE

(MOQ Required)

• Other sizes

(3.68)

.145

(1.27)

.050

TYP

01

(3.05)

.120

(1.27)

.050

(1.59)

.063

(1.27)

.050

DIA

–A OPTION

(4.57)

.180

(0.51) .020

(2.79)

.110

(0.51)

.020

(3.05)

.120

(0.58)

.023

(0.13)

.005

TYP

(0.13)

.005

TYP

(4.19)

.165

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–T1

Due to technical progress, all designs, specifications and components are subject to change without notice.

–T2

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
