Printed-circuit board connector - CCV 2,5/ 4-GF-LR
P20THRR56 - 1837611
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 4, pitch: 5 mm, color:
black, contact surface: Tin, mounting: THR soldering

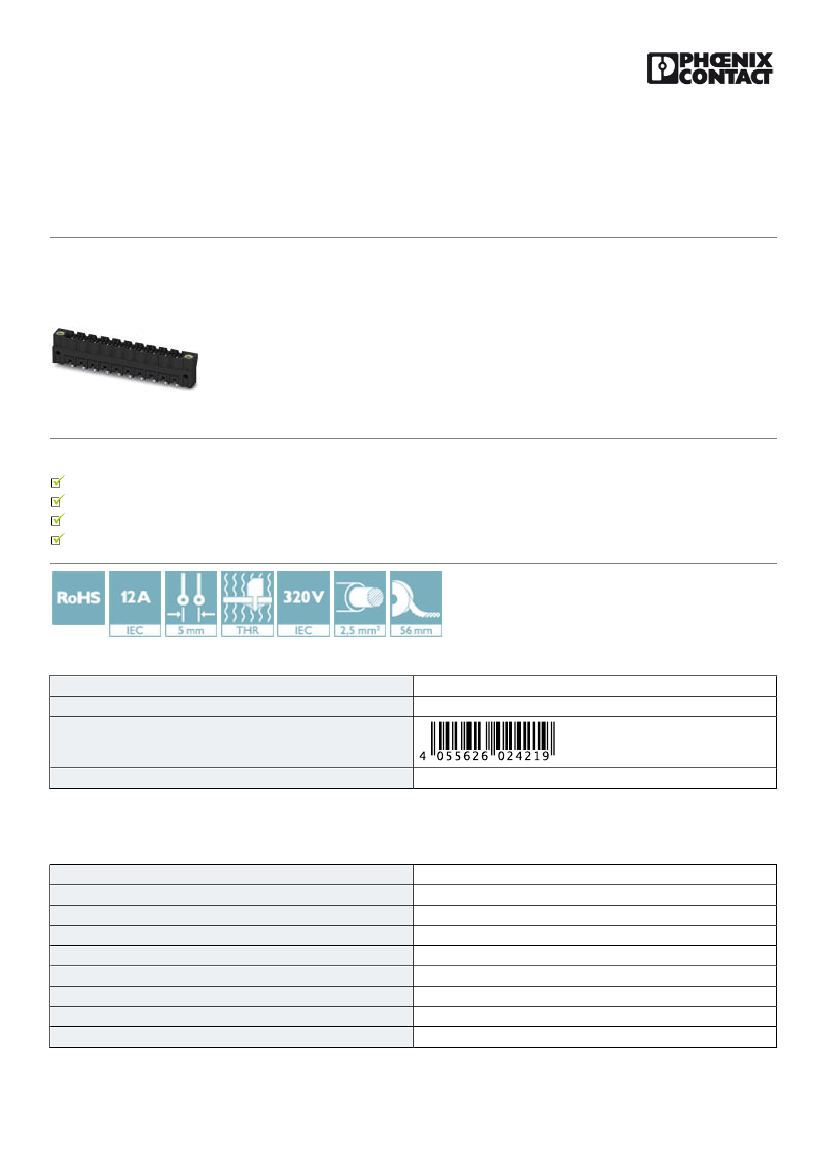

The figure shows an 10-position
version
Your advantages
Designed for integration into the SMT soldering process
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Screwable flange for superior mechanical stability
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626024219
330 pc
330 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
8.6 mm
30 mm
5 mm
15 mm
30 mm
14 mm
12 mm
2 mm
1 x 1 mm
11/18/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1837611
Printed-circuit board connector - CCV 2,5/ 4-GF-LR
P20THRR56 - 1837611
Technical data
Dimensions
Length
8.6 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
CCV 2,5/..-GF-LR
IIIa
4 kV
4 kV
4 kV
320 V
400 V
EN-VDE
12 A
LCP
V0
black
4
Packaging information
Type of packaging
Pieces per package
Denomination packing units
[W] tape width
[A] coil diameter
[W2] coil overall dimension
Outer packaging type
56 mm wide tape
330
Pcs.
56 mm
330 mm
62.4 mm
Transparent-Bag
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
cULus Recognized
11/18/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1837611
Printed-circuit board connector - CCV 2,5/ 4-GF-LR
P20THRR56 - 1837611
Approvals
Ex Approvals
Approval details
cULus Recognized
Nominal voltage UN
Nominal current IN
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
B
300 V
16 A
300 V
10 A
