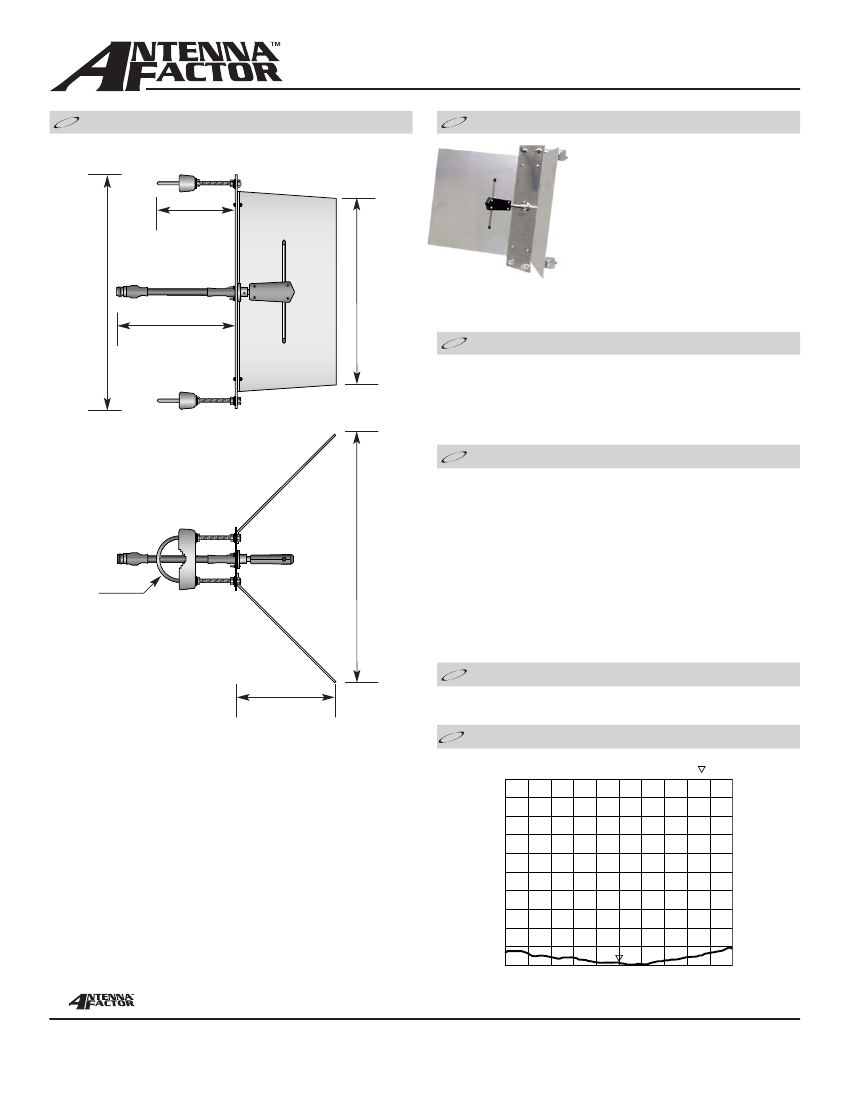

ANT-916-CN-N DATA SHEET
Product Dimensions
Description
CN Series corner antennas feature a
wide >70MHz bandwidth, 25dB front-
to-back ratio, high gain and a wide
beamwidth. These rugged antennas
are constructed to withstand the stress
of long-term use. They are designed
for 50-ohm system matches with a
maximum input of 100W.
11.81”
(300.0)
8.66”
(220.0)
*NOTE* Use of these antennas may
result in TX and RX emission levels in
excess of legal limits.
6.30”
(160.0)
14.17”
(360.0)
Features
•
•
•
•
•
High gain
Stainless steel construction
Fully weatherized
Rugged & damage-resistant
RG-8/U cable with female N connector
Electrical Specifications
•
•
•
•
•
•
•
•
•
•
•
•
Center Freq.
Bandwidth
Polarization
VSWR
Impedance
F/B Ratio
Gain
Beamwidth
Max. Power
Connector
Weight
Wind Velocity
916MHz
72MHz
Vertical
≤1.5 typ. at center
50 ohms
≥25dB
10.2dBi
58º horizontal, 52º vertical
100W
N-style female
2.6lbs (1.2kg)
134.2mph (60m/s)
18.11”
(460.0)
R 1.97”
(50.0)
Ordering Information
7.48”
(190.0)
•
ANT-916-CN-N
VSWR Graph
S11 SWR
1.106
CENTER 916.000MHz
SPAN 200.000MHz
Typical VSWR
Antenna Factor
159 Ort Lane Merlin, OR 97532
www.antennafactor.com
541-956-0931 (phone) 541-471-6251 (fax)
Rev 7-25-11
