12.55±.02 318.77±0.51
D
1.72±.02 43.69±0.51
12.21 310.13
12.03 3
5
1

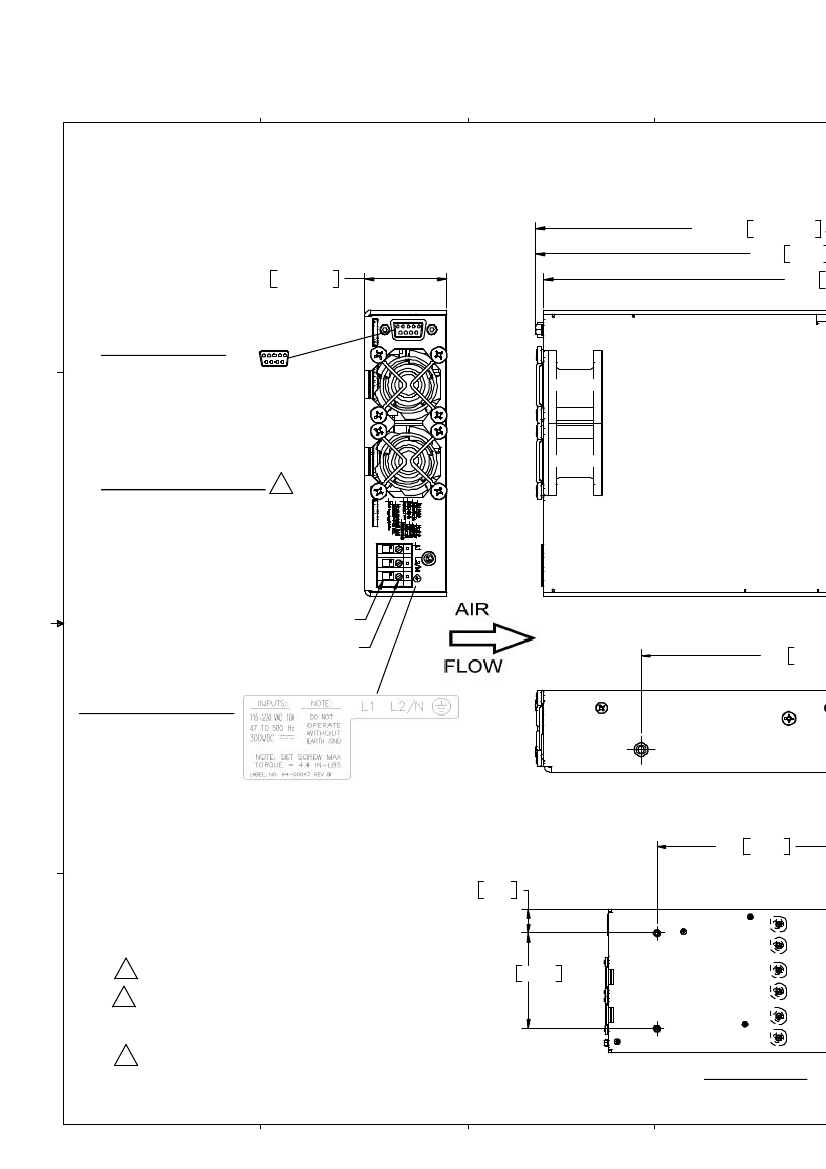

J3 INTERFACE PIN OUT
J3-1
E/D-1
9 6
J3-2
E/D-2
J3-3
E/D-3
J3-4
SIGNAL GROUND
J3-5
VCC +5V 300mA
J3-6
ACOK AC POWER OK
J3-7
GSD GENERAL SHUTDOWN
J3-8
SPARE
J3-9
SPARE
C
J3 INTERFACE CONNECTION 3
MATING HDWR: (AMP P/N: OR EQUIVALENT)
HOUSING: AMP P/N: 205204-4
TERMINALS: AMP P/N: 66506-9
SCREW LOCK: AMP P/N: 205980-4
CRIMP TOOL: AMP 58448-3
14 AWG WIRE
CLAMPING SCREWS
8.00 203.20
B
MBJ1 INPUT CONNECTIONS
MBJ1-1 EARTH GROUND
MBJ1-2 L2 / NEUTRAL
MBJ1-3 L1
8.00 203.20
1.00 25.40
NOTES: UNLESS OTHERWISE SPECIFIED
1. INTERPRET DRAWING PER ANSI Y14.5-1994.
2
A
3
WITH OPTIONAL BUSBAR.
A COMPLETE SET OF MATING CONNECTORS CAN
BE PURCHASED FROMWESTCOR BY SPECIFYING
CONNECTOR KIT P/N: 19-130047 A KIT CONTAINING
40 EA OF THE HI POWER 12 AMP 16 AWG CRIMP PINS
1S P/N: 19-130050.
REF DESIGNATION LEGEND
MB = MOTHER BOARD
S1 = (SLOT 1) DAUGHTERBOARD MODULES E/D 1.
S2 = (SLOT 2) DAUGHTERBOARD MODULES E/D 2.
S3 = (SLOT 3) DAUGHTERBOARD MODULES E/D 3.
8
7
6
4.00 101.60
4
BOTTOM VIEW
SCALE: 1:2
5
Microcontroller MCU
