3SBP6: DescriptionSLOW BLOW ELECTRIC FUSE, 0.06A, 250VAC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection; File Size102KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet View All

3SBP6 Overview

SLOW BLOW ELECTRIC FUSE, 0.06A, 250VAC, 35A (IR), INLINE/HOLDER

3SBP6 Preview

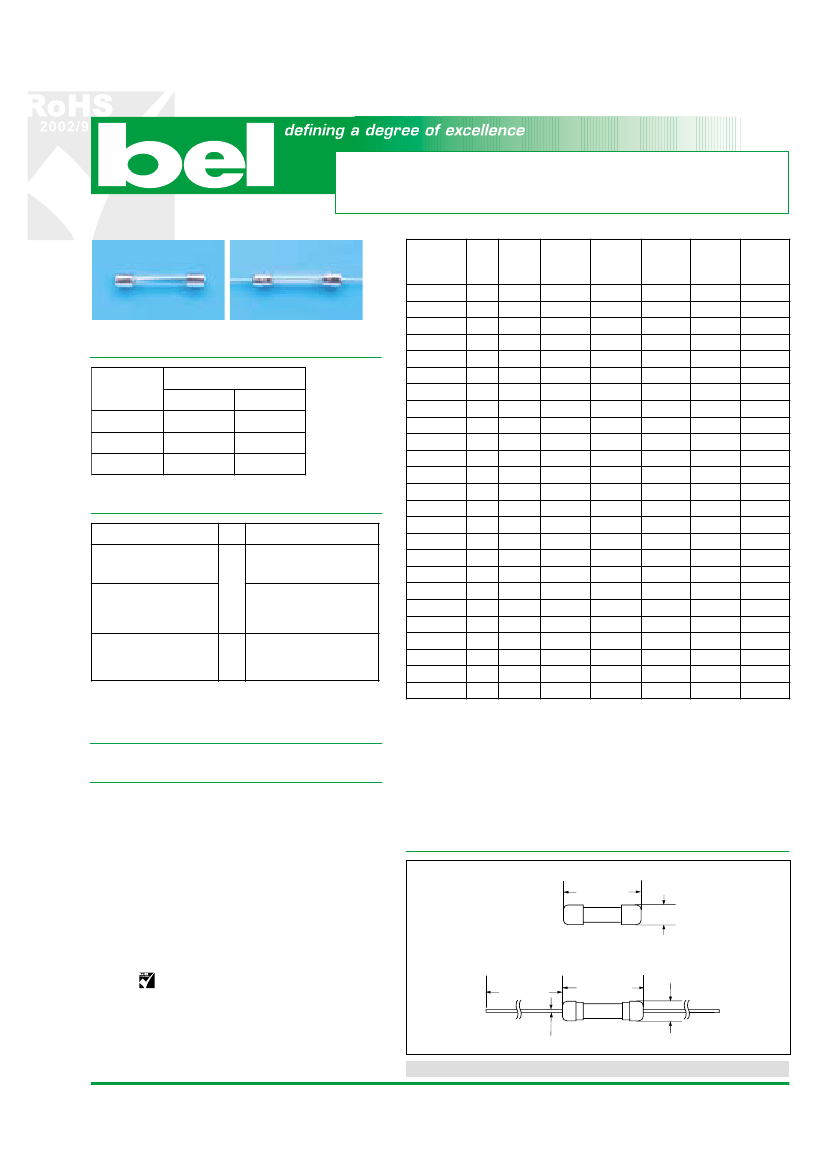

Type 3SB / 3SBP

3SBD1005

ESB1005A1

1/4 x 1 1/4 inch Glass Tube

RoHS Compliant

Slow Blow Fuse Series

Catalog

Number

RoHS

Suffix

Ampere

Rating

Typical

Volt-drop Melting I

T Melting I

T Maximum

Cold

@100%

< 10 mSec @10

Power

Resistance

Dissipation

(ohm)

(Volt) max. (A

Sec)

(W)

Electrical Characteristics

(UL/CSA STD. 248-14)

Testing current

100%

135%

200%

Blow Time

Minimum

4 Hrs.

N/A

5 sec

Maximum

N/A

1 Hr

30 sec

Approvals

Safety Agency Approvals

ußpc

Type Amp range/Volt @ I.R. ability

63mA

8A / 125V AC @ 10,000A

63mA - 8A / 250 AC @ 200A

8.1A - 15A / 125V AC @ 10,000A

63mA

>1A

>3.5A

8.1A

1A / 250V AC @ 35A

3.5A / 250V AC @ 100A

8A / 250V AC @ 200A

15A / 125V AC @ 10,000A

Listed File No. E20624

3SB /

3SBP

Certified File No. LR39772

JET1037-31003-1003

File No. JET1037-31003-1001 3SB /

3SBP

File No. JET1037-31003-1002

3SB

5A / 125V AC @ 500A

>5A

15A /125V AC @ 300A

RoHS Compliant Product

For RoHS Compliant Version, add suffix “R” after catalog number

3SB

(P)

100

125

160

200

250

300

375

500

750

1.25

1.6

2.5

-R

63mA

80mA

100mA

125mA

160mA

200mA

250mA

300mA

375mA

500mA

750mA

1.25A

1.6A

2.5A

10A

12A

15A

8.3

5.6

3.8

2.5

1.4

0.7

0.4

0.24

0.16

0.12

0.08

0.07

0.04

0.03

0.02

0.016

0.014

0.010

0.008

0.006

6.9

5.7

3.5

2.7

2.3

1.9

1.6

1.3

1.1

0.9

0.67

0.54

0.5

0.38

0.32

0.27

0.22

0.19

0.16

0.15

0.14

0.13

0.12

0.09

0.13

0.21

0.32

0.50

0.77

1.20

1.85

2.61

4.43

8.7

16.4

25.4

146

226

349

286

372

483

817

1277

2123

0.10

0.15

0.24

0.37

0.58

0.91

1.42

2.22

3.15

5.41

10.1

20.6

32.3

123

192

300

469

455

592

769

1300

2031

3377

0.7

0.5

0.6

0.7

0.71

0.75

0.83

0.88

0.9

1.0

1.1

1.2

1.3

1.6

1.8

1.9

2.3

2.6

3.0

Consult manufacturer for other ratings

Operating Temperature

-55ºC to +125ºC

Physical Specification

Materials

Glass body / Nickel Plated Brass Caps

Lead wire:

Tin plated Copper,

Diameter 0.032", 5A and less

Diameter 0.040", 6A and above

Marking

On fuse:

“bel”, “3SB”, “Current Rating”, “Voltage Rating”,

“Appropriate Safety Logos”, “✔” (RoHS Version)

On label:

“bel”, “3SB”or “3SBP”, “Current Rating”, “Voltage

Rating”, “Interrupting Rating”,“Appropriate Safety Logos”

and “

”+ suffix “R” for RoHS Version

Voltage on fuse:

250V for 63mA to 8A; 125V for 10A and above

Packaging

1. In bulk:

3SB

- 1,000 pcs per box;

3SBP

- 500 pcs per box

2. On Axial Tape & Reel:

1,000 pcs per reel

3. Tape & Reel specification:

per EIA-296-E & IEC 286-1@ 10mm Pitch and 73mm inside Tape Spacing

Mechanical Dimensions

3SB

1.25"

0.03" 0.250"

0.004"

(31.8

0.8mm) (6.35

0.1mm)

3SBP

1.5"

0.08"

1.28"

0.03" 0.270"

0.004"

(38.1

2mm) (32.5

0.8mm) (6.9

0.1mm)

SEE LEAD SIZE LISTED IN “ MATERIAL”

ORDERING INFORMATION SEE LAST 2 PAGES

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com

Specifications subject to change without notice

Type 3SB / 3SBP

Slow Blow Fuse Series

1/4 x 1 1/4 inch Glass Tube

RoHS Compliant

3SBC1005

E3SBC1

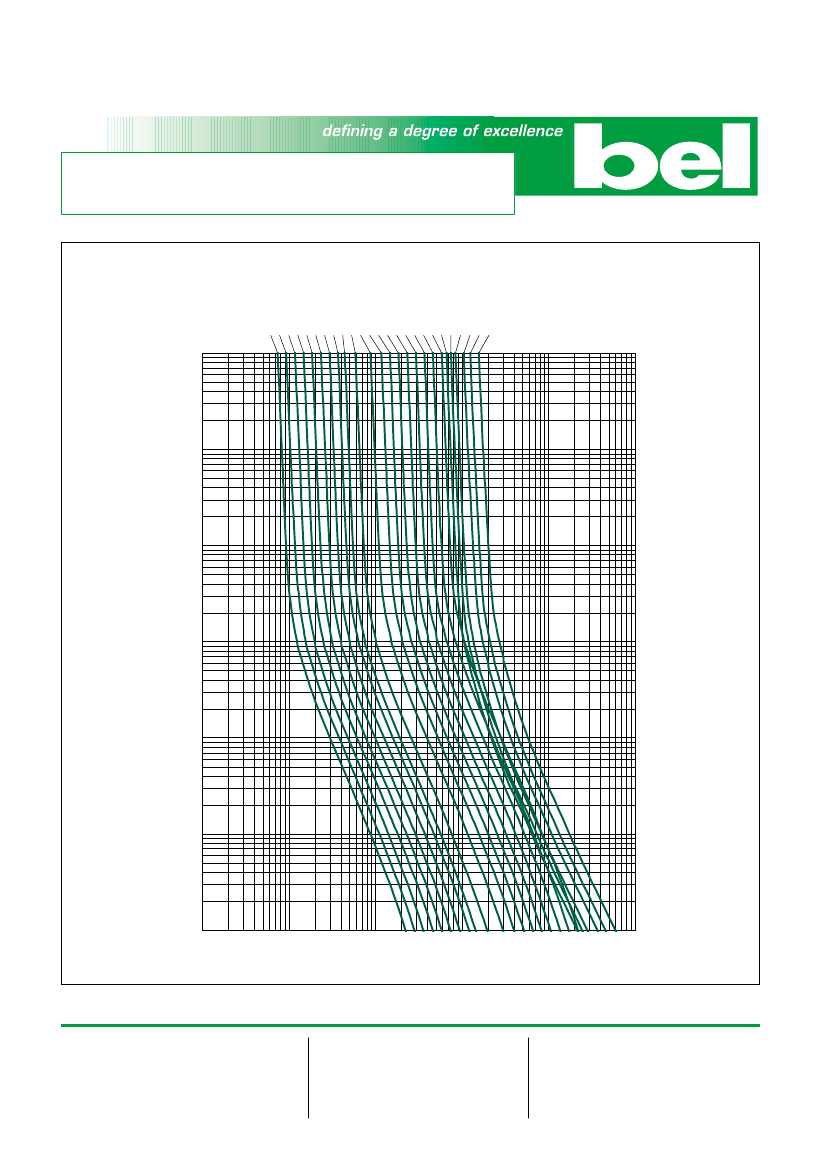

3SB / 3SBP - TIME CURRENT CHARACTERISTIC CURVE

- 63mA

- 80mA

- 100mA

- 125mA

- 160mA

- 200mA

- 250mA

- 300mA

- 375mA

- 500mA

- 750mA

- 1A

- 1.25A

- 1.6A

- 2A

- 2.5A

- 3A

- 4A

- 5A

- 6A

- 7A

- 8A

-10A

-12A

-15A

10000

1000

100

TIME IN SECONDS

0.1

0.01

0.1

100

1000

CURRENT IN AMPERES

NOTE - see important information under “User Guide”on P.08

Corporate Office

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302

Tel: 201-432-0463

Fax: 201-432-9542

E-Mail: belfuse@belfuse.com

Website: www.belfuse.com

Far East Office

Bel Fuse Ltd.

8F/8 Luk Hop Street

San Po Kong

Kowloon, Hong Kong

Tel: 852-2328-5515

Fax: 852-2352-3706

European Office

Bel Fuse Europe Ltd.

Preston Technology Management Centre

Marsh Lane, Preston PR1 8UD

Lancashire, U.K

Tel: 44-1772-556601

Fax: 44-1772-888366

Specifications subject to change without notice
