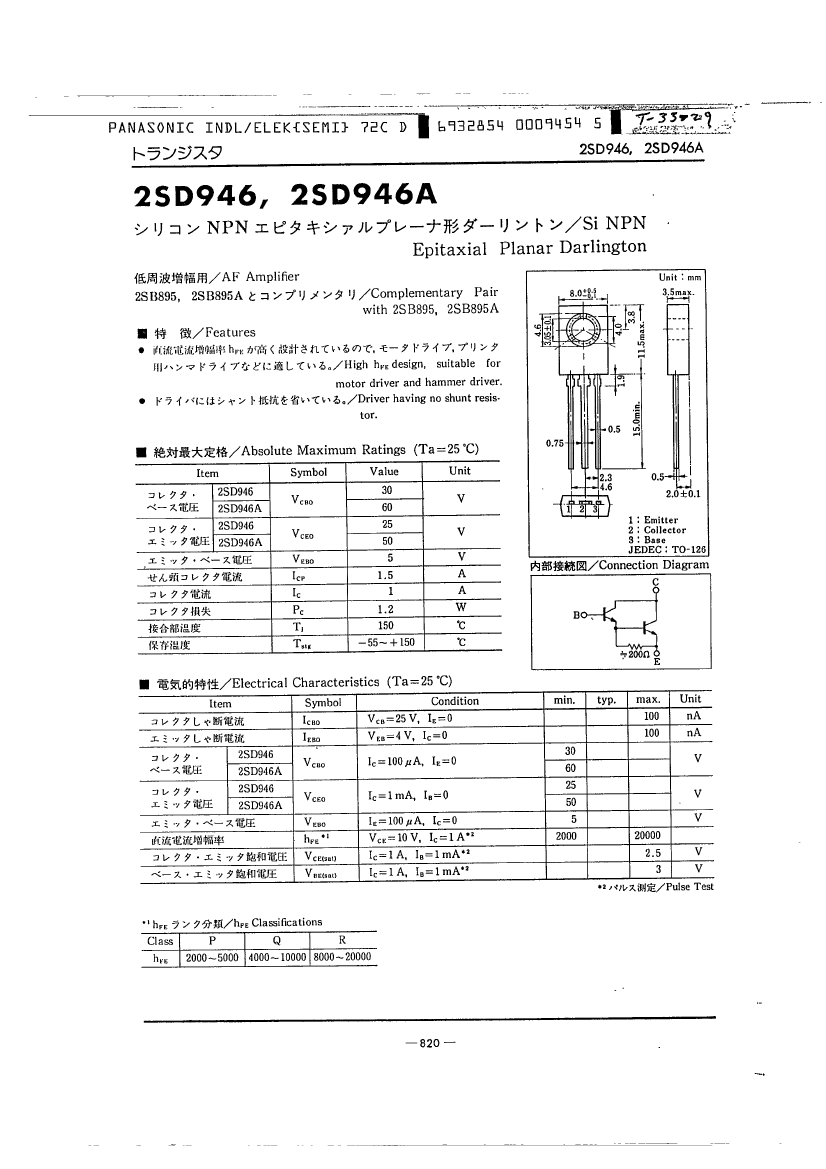

Power Device - Power Transistors - Others

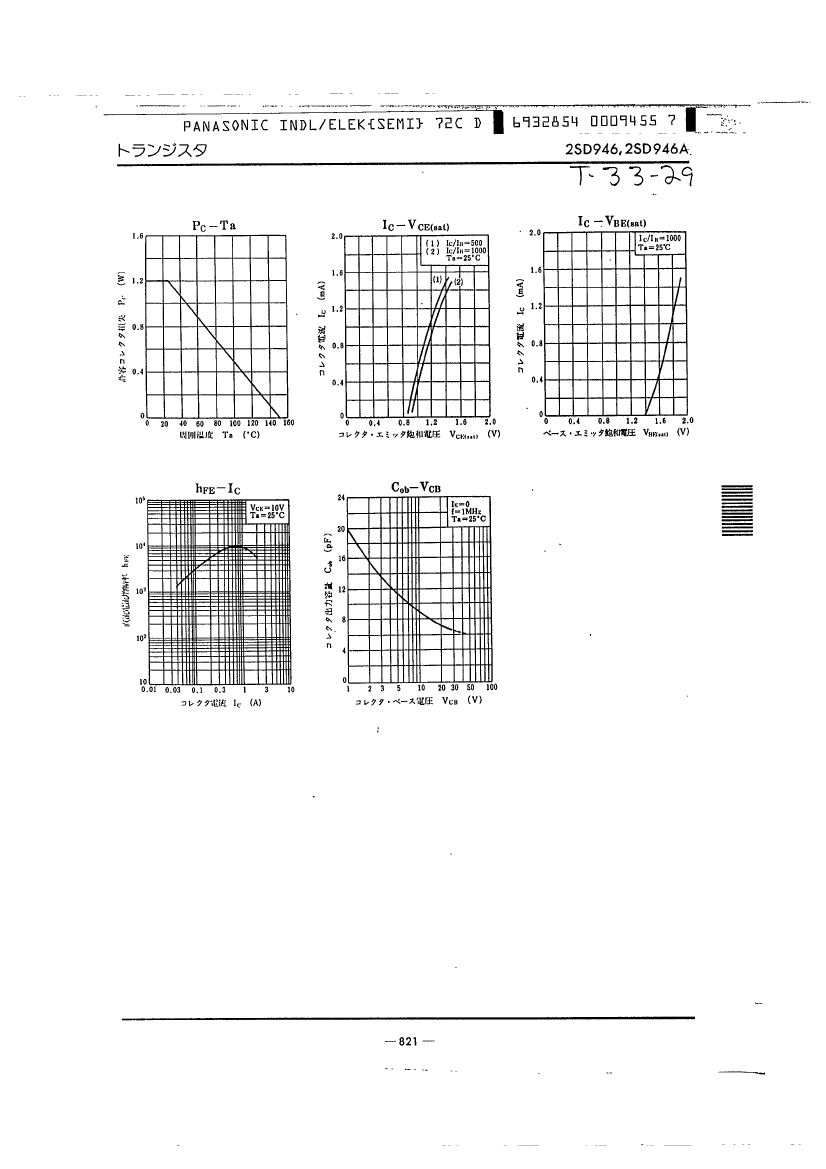

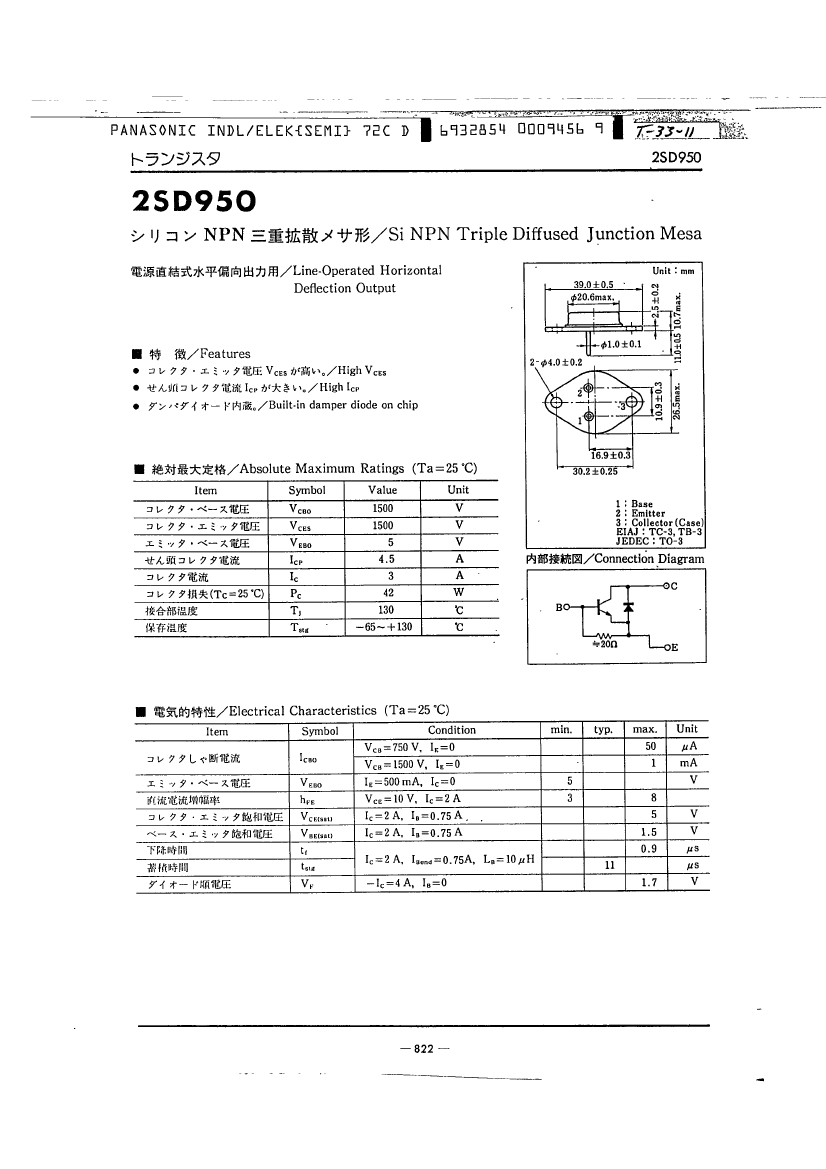

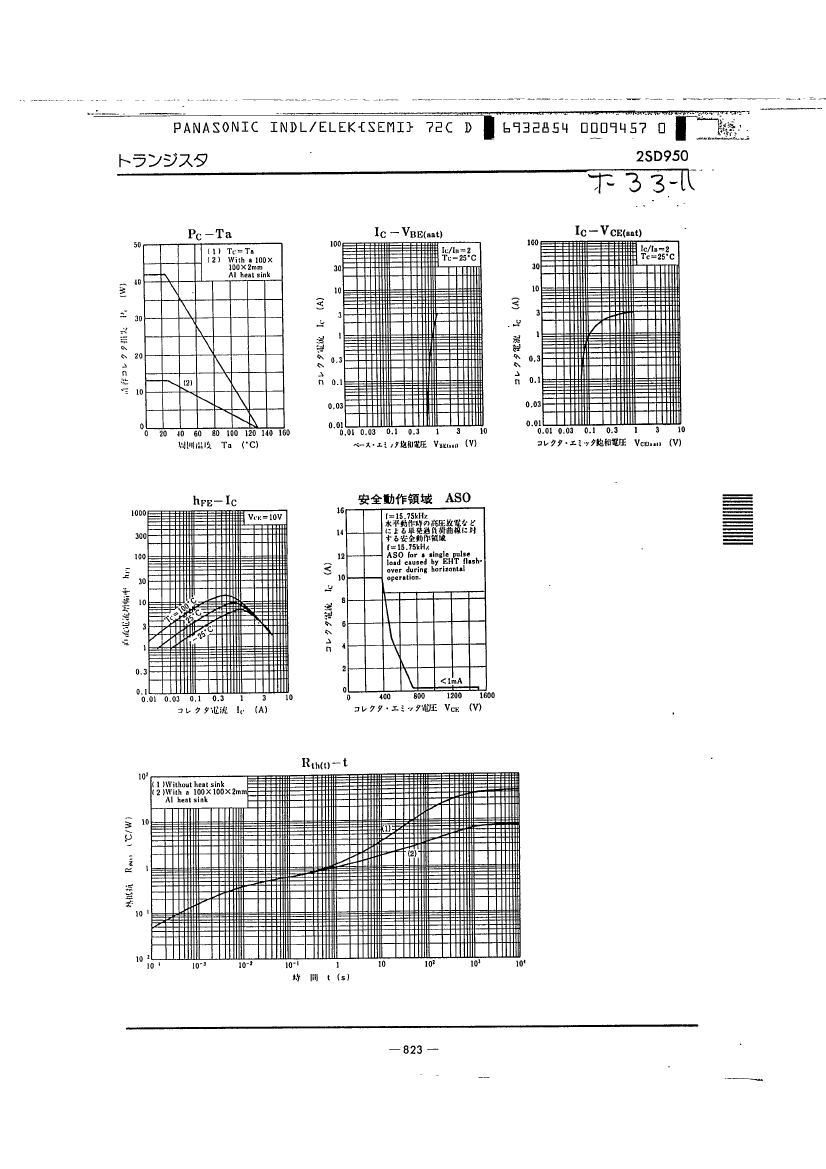

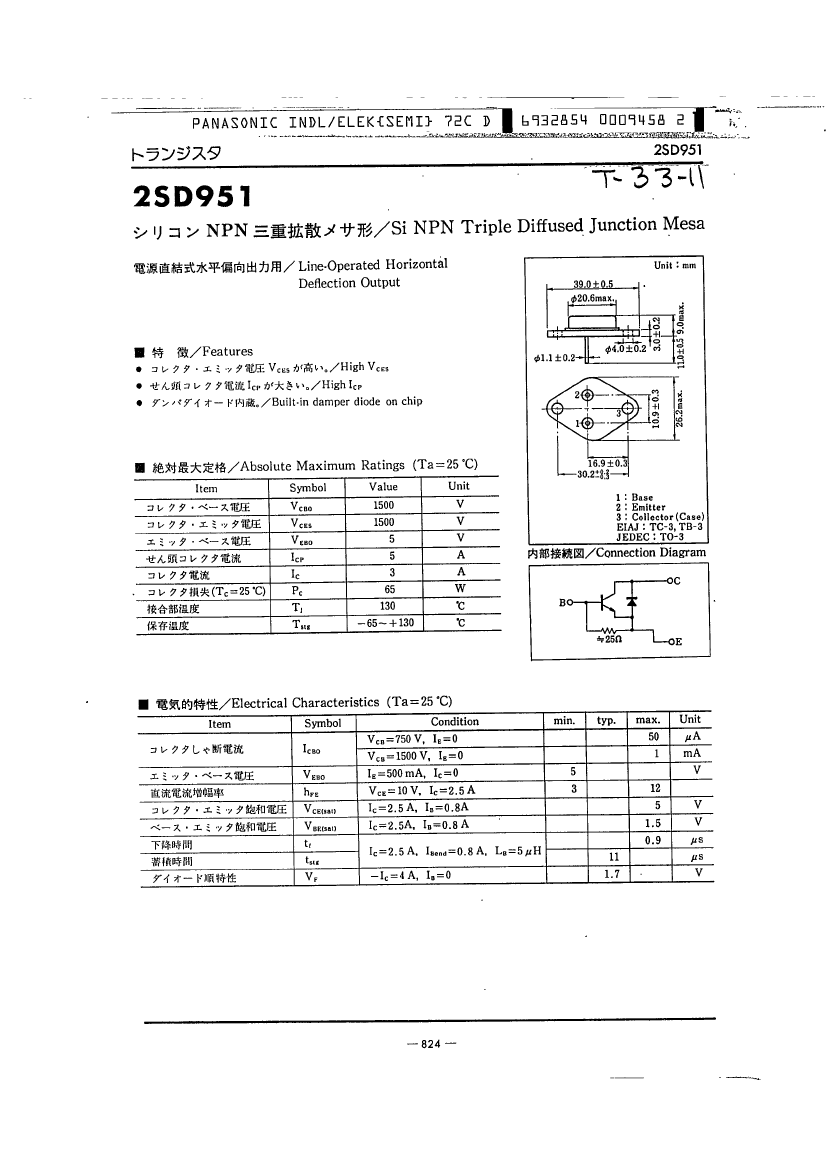

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Parts packaging code | SIP |
| package instruction | ROHS COMPLIANT, TO-126B-A1, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | DARLINGTON WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 4000 |
| JEDEC-95 code | TO-126 |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 1.2 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 150 MHz |
| Base Number Matches | 1 |
| 2SD946AQ | 2SD946AP | 2SD946P | 2SD951 | 2SD950 | 2SD946R | 2SD946Q | 2SD946AR | |
|---|---|---|---|---|---|---|---|---|
| Description | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others | Power Device - Power Transistors - Others |
| Is it Rohs certified? | conform to | - | - | incompatible | incompatible | conform to | conform to | conform to |
| Reach Compliance Code | unknow | - | - | unknow | unknow | unknow | unknow | unknow |
| Maximum collector current (IC) | 1 A | - | - | 3 A | 3 A | 1 A | 1 A | 1 A |
| Configuration | DARLINGTON WITH BUILT-IN RESISTOR | - | - | Single | Single | DARLINGTON WITH BUILT-IN RESISTOR | DARLINGTON WITH BUILT-IN RESISTOR | DARLINGTON WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 4000 | - | - | 3 | 2 | 8000 | 4000 | 8000 |
| Maximum operating temperature | 150 °C | - | - | 135 °C | 140 °C | 150 °C | 150 °C | 150 °C |
| Polarity/channel type | NPN | - | - | NPN | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 1.2 W | - | - | 65 W | 42 W | 1.2 W | 1.2 W | 1.2 W |
| surface mount | NO | - | - | NO | NO | NO | NO | NO |
| Base Number Matches | 1 | - | - | 1 | 1 | 1 | 1 | 1 |
