Technical Data Sheet
7-16
Calibration Adaptor
Plug/Plug
60S121-S20S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

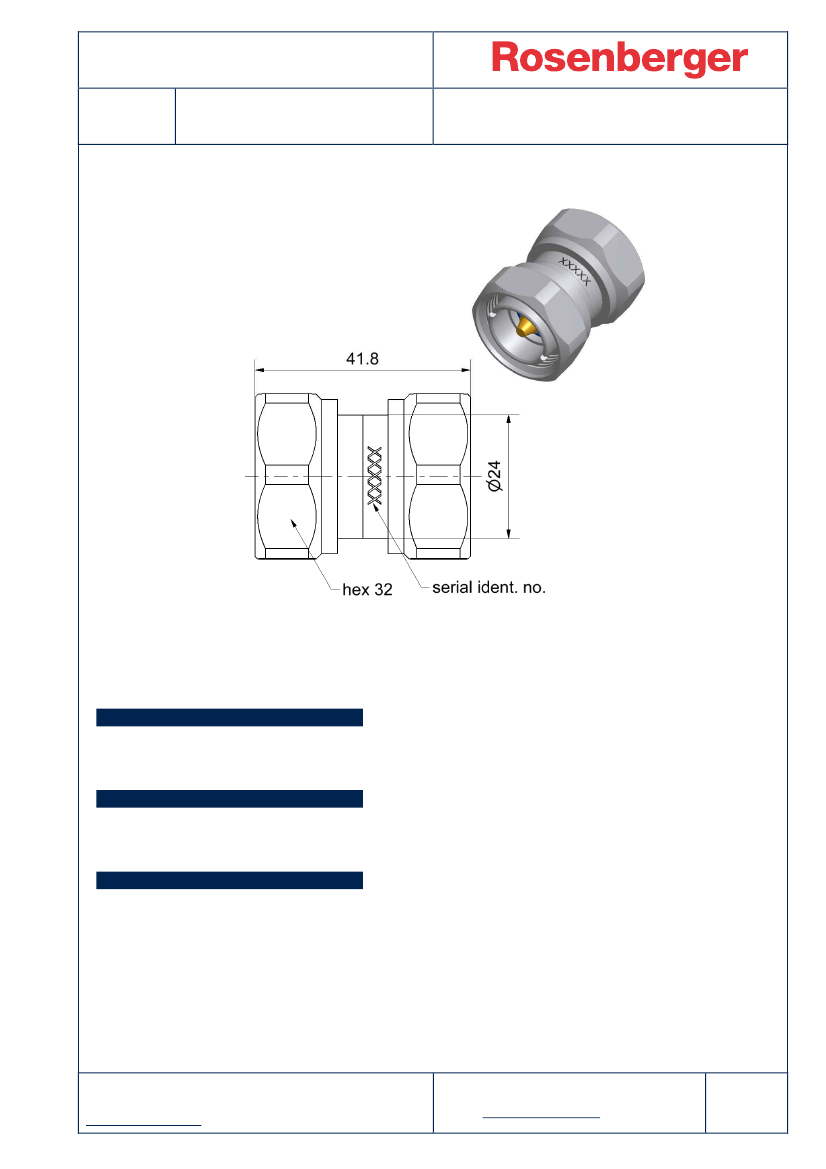

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-4, EN 122190, DIN 47223
Documents
Application note
AN001 “Calibration Services”
Material and plating
Connector parts
Center conductor
Outer conductor
Coupling nut
Dielectric
Material
CuBe
Stainless steel
Stainless steel
PPE
Plating
Gold, min. 1.27 µm, over nickel
Passivated
Passivated
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/3
Technical Data Sheet
7-16
Calibration Adaptor
Plug/Plug
60S121-S20S3
Electrical data
Frequency range
Return loss
DC to 8 GHz
≥
40 dB, DC to 4 GHz
≥
36 dB, 4 GHz to 8 GHz
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Maximum torque
Recommended torque
Gauge
≥
500
35 Nm
2.26 Nm
1.72 mm to 1.76 mm
General standard definitions
For proper operation the vector network analyzer (VNA) needs a model describing the electrical behaviour
of this calibration standard. The different models, units, and terms used will depend on the VNA type and they
will have to be entered into the VNA. All values are based on typical geometry and plating.
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
50
Ω
95.066 ps
28.50 mm
0.50 GΩ/s
0.0041 dB/
GHz
Environmental data
Operating temperature range
2
Rated temperature range of use
Storage temperature range
RoHS
1
2
1
+ 20 °C to +26 °C
0 °C to +50 °C
- 40 °C to +85 °C
compliant
Temperature range over which these specification are valid.
This range is underneath and above the operating temperature range, within the calibration adaptor is fully functional
and could be used without damage.
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/3
Technical Data Sheet
7-16
Calibration Adaptor
Plug/Plug
60S121-S20S3
Declaration of calibration options
Factory Calibration
Standard delivery for this calibration standard includes a Factory Calibration. The Calibration Certificate
issued reports individual calibration results, traceable to national / international standards. Model based
standard definitions are reported in an Agilent/Keysight, Rohde & Schwarz and Anritsu compatible VNA
format.
Accredited Calibration
Optional this calibration standard can be delivered with an Accredited Calibration (DAkkS) having the
highest confidence in the traceability. The DAkkS Calibration Certificate issued reports individual calibration
results in a complex format, traceable to national / international standards. Model based standard
definitions are reported in an Agilent/Keysight, Rohde & Schwarz and Anritsu compatible VNA format. The
uncertainties are smaller than in a Factory Calibration.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Calibration interval
Recommendation
12 months
Packing
Standard
Weight
1 pce in box
130 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Marcel Panicke
Date
03.08.15
Approved
Markus Müller
Date
10.08.16
Rev.
d00
Engineering change number
16-1267
Name
Marion Striegler
Date
10.08.16
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
3/3
