305-76200 Overview

HFT-AIS SELF EXT

305-76200 Parametric

Parameter Name	Attribute value
type	sleeve, elastic
Shrinkage	2 to 1
length	82.0'（25.0m）
Inner diameter (factory)	3.000"（76.20mm）
Inner diameter - after recovery	1.500"（38.10mm）
Wall thickness after restoration	0.051"（1.30mm）
Material	Polyolefin (PO)
characteristic	self-extinguishing
color	black
Operating temperature	-55°C ~ 135°C
Shrinkage temperature	100°C

Preview

Download Datasheet

View All

Insulation

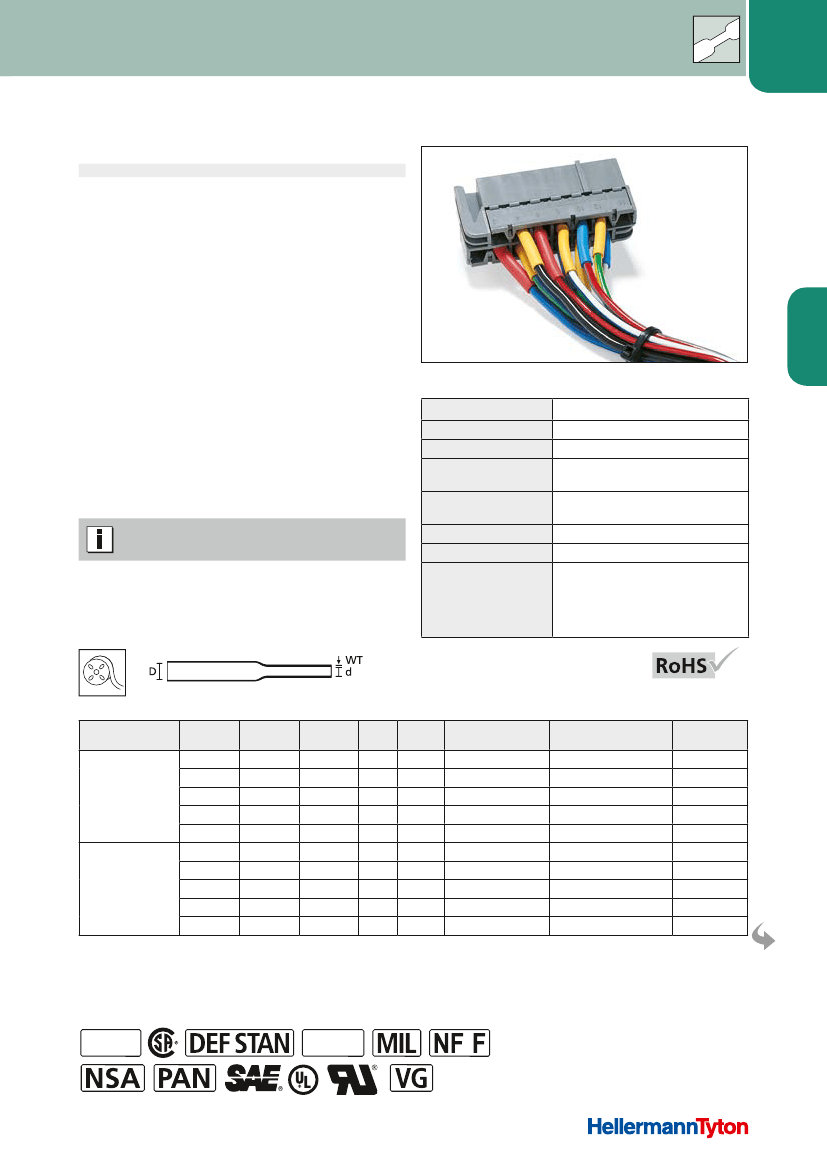

Heat Shrinkable Tubing

2.1

Heat Shrinkable Tubing 2:1 flexible and coloured

HFT-A - self extinguishing

This high performance thin wall tubing is used extensively for electrical

and mechanical protection. It is also well proven for sleeve marking

to identify wiring circuits. It shrinks uniformly to form a permanent

insulation covering.

The transparent version is used for bundling and cable protection where

visual inspection is required. It is often used as a see through protective

sleeve over cable markers.

Features and Benefits

• Flexible heat shrink tubing

• Fast shrinking, easy handling, good mechanical strength

• Easy to print on

• Wide range of colours

• Internal diameters up to 4 inches (101.6 mm)

• UL-224 ,CSA listed and VG approved

HFT-A conforms to major standards used in all Defence industries.

MATERIAL

Shrink Ratio

Operating Temperature

Minimum Shrink

Temperature

Longitudinal change

after shrinkage

Polyolefin, cross-linked (PO-X)

2:1

-55 °C to +135 °C

+100 °C

+5 %/-10 %

20 kV/mm according to IEC 60684 P2

Self extinguishing

ASN-E0126, CSA, DEF STAN 59-97/3,

LEA, MIL-DTL-23053/5C, NF F 00-608,

NSA937211, PAN6493, SAE - AMS -

DTL-23053 / 5C, UL224 125 °C 600V,

VG 95343

Standard sizes available in colours black,

red, blue, yellow, white and green-yellow.

Dielectric Strength

Flammability

Specifications

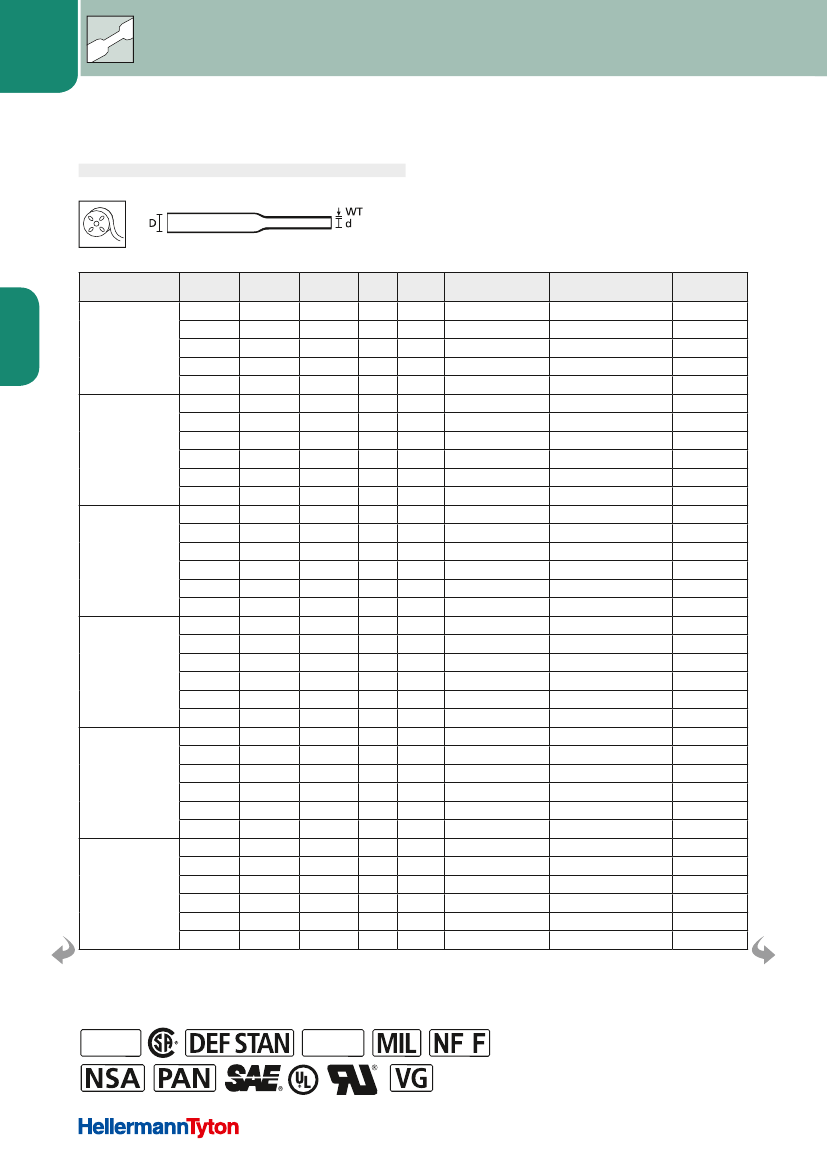

Heat Shrinkable Tubing 2:1

TYPE

Supplied

Ø D min.

1.2

Size

(imperial)

3/64 "

1/16 "

Recov.

Ø d max.

0.6

0.8

Wall

(WT)

0.40

Reel

Length

400 m

Colour

Black (BK)

Blue (BU)

Red (RD)

White (WH)

Yellow (YE)

Black (BK)

Blue (BU)

Red (RD)

White (WH)

Yellow (YE)

Designation as per

VG-Norm

VG 95343 T05 A 001A

VG 95343 T05 A 001 G

VG 95343 T05 A 001 C

VG 95343 T05 A 001 L

VG 95343 T05 A 001 E

VG 95343 T05 A 002 A

VG 95343 T05 A 002 G

VG 95343 T05 A 002 C

VG 95343 T05 A 002 L

VG 95343 T05 A 002 E

Article-No.

305-01200

305-01206

305-01202

305-01209

305-01204

305-01600

305-01606

305-01602

305-01609

305-01604

HFT-A-1.2/0.6

1.2

1.6

HFT-A-1.6/0.8

1.6

All dimensions in mm. Subject to technical changes.

Minimum Order Quantity (MOQ) may differ from package content.

Date of issue: October 2015

ASN

LEA

For product specific approvals and specifications

please refer to the Appendix.

Further information at

www.HellermannTyton.com/insulation

211

305-76200 Related Products

	305-76200	305-03245
Description	HFT-AIS SELF EXT	HFT-A 3.2/1.6 HEAT SHRIINK
type	sleeve, elastic	sleeve, elastic
Shrinkage	2 to 1	2 to 1
length	82.0'（25.0m）	328.1'（100.0m）
Inner diameter (factory)	3.000"（76.20mm）	0.125"（3.18mm）
Inner diameter - after recovery	1.500"（38.10mm）	0.062"（1.57mm）
Wall thickness after restoration	0.051"（1.30mm）	0.019"（0.50mm）
Material	Polyolefin (PO)	Polyolefin (PO)
characteristic	self-extinguishing	self-extinguishing
color	black	green,yellow
Operating temperature	-55°C ~ 135°C	-55°C ~ 135°C
Shrinkage temperature	100°C	100°C
