8700 Series
Mid-Size Video Jackfields
Product Description
The 8700 Series Mid-Size Video Jackfields
offer outstanding performance for HDTV.
The Jacks meet SMPTE 424M-2006
specifications at 3.0 GHz - 3 GB for the
Television and Motion Picture Industry.

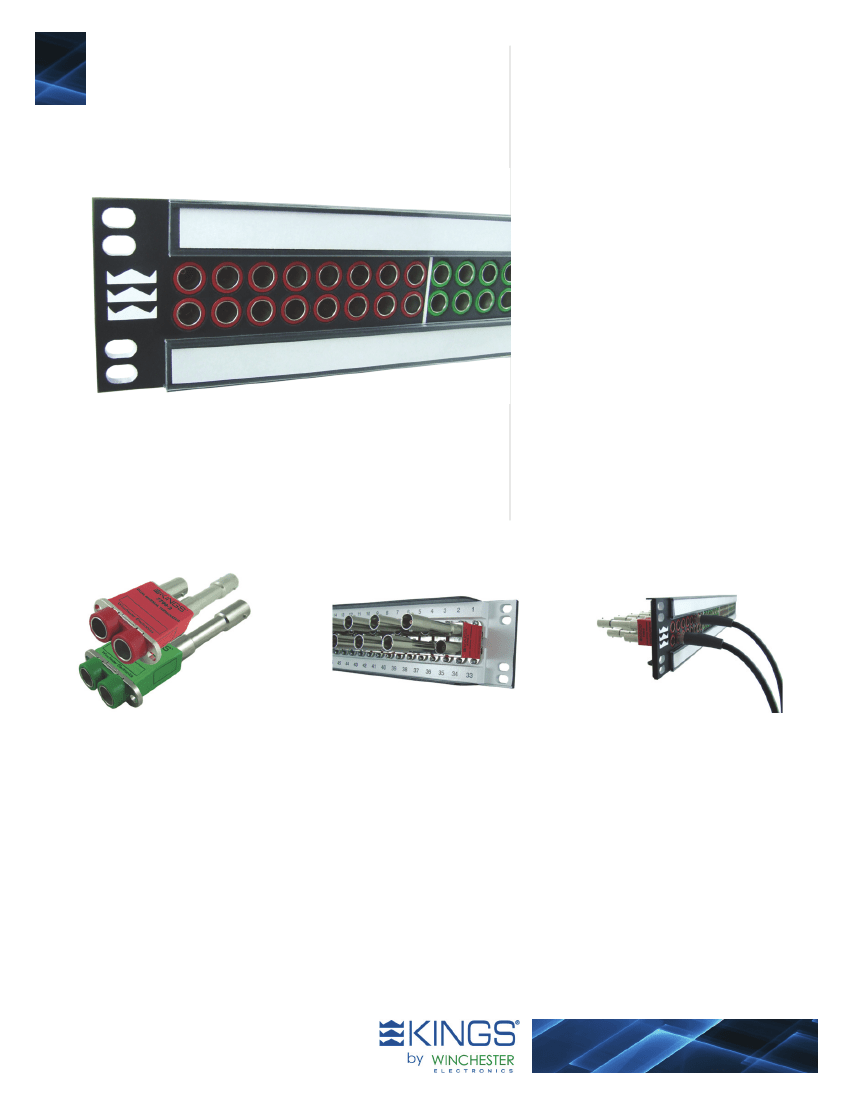

This Winchester KINGS
®
product contains
superior features including color-coded
inserts on the front panel for easy
identification of functionality. The Jacks are
also color-coded on the rear of the panel;
Red identifies terminated and Green
identifies feed-through Jacks. The rear of
the panel is a brilliant white with sequential
port numbering for increased visibility and
an improved two-piece slide-on designation
label on the front. The Mid-Size Video
Jackfields are available in 2 x 32 position in
1 RU or 1.5 RU heights.
• Color-coded Video Jacks and
Inserts on the front of the panel
allow users to visually identify Video
Jack functionality from both the front
and rear of equipment racks.
• Normal terminated and
unterminated Jacks feature a red
label. “Non-Normal” or “Feed-
Thru” Jacks feature a green label.
• Brilliant white rear panel with black
sequential port numbering from 1-
64 increases visibility and makes
it easier to locate a specific video
port in dark cabled equipment
bays.
• New two-piece slide-on label
designation system is simple to
use. Printed labels are inserted
into a mounted tract which holds
the label in place until the clear
protective cover is installed.
CONNECTING INNOVATION TO APPLICATION
®
8700 Series Mid-Size Video Jackfields
Part Number
8700-000-00701N
8700-000-00702N
8700-000-00703N

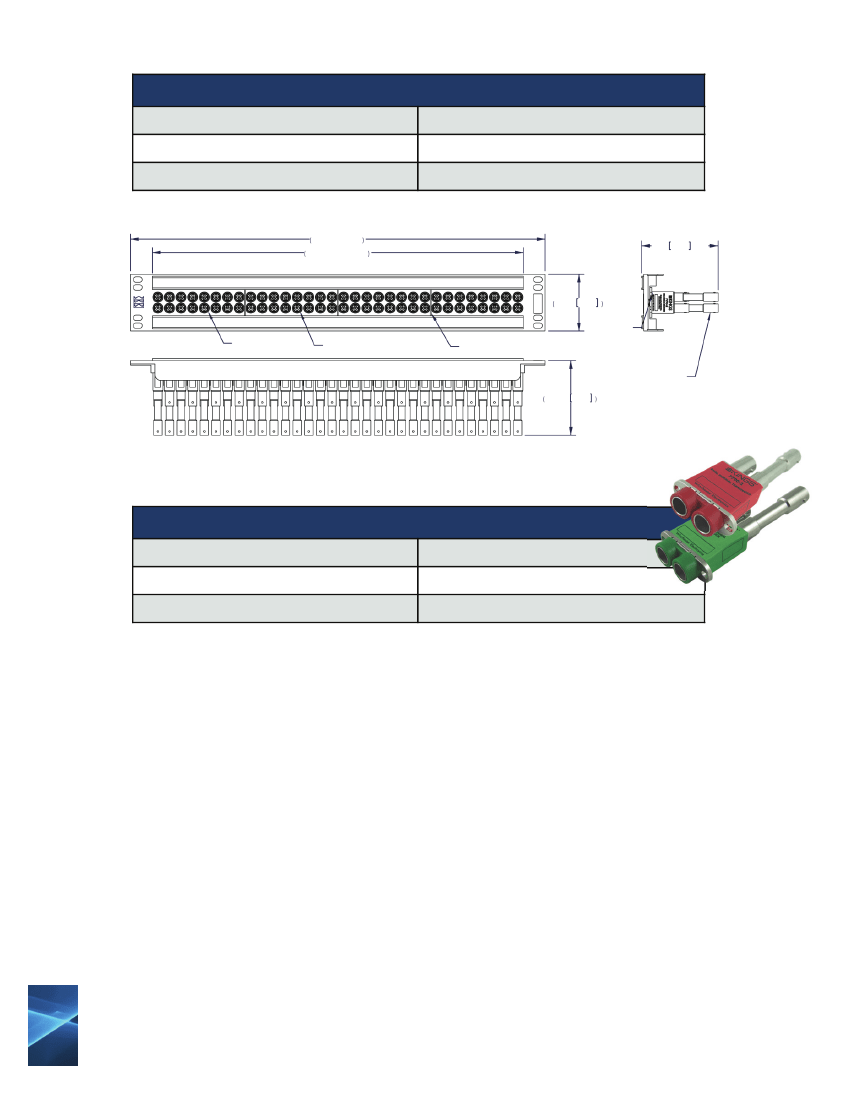

8700-000-00701N Shown
19.00 [482.60]
2x 17.00 [431.80]
TOP
3.600 91.44 MAX
Configuration
2x32, 1.5 RU, Dual, Normal, Terminated
2x32, 1 RU, Dual, Normal, Terminated
2x32, 1 RU, Dual, Feed-Thru
2.59
65.89
RED LABEL
2 ROWS
32 PER ROW
RED INDICATORS
3 IDENTIFICATIONS LINES
DUAL NORMAL VIDEO JACK
7790-2
3.405
86.49
7790 Mid-Size Video Jacks
Part Number
7790-2
7790-3
7790-4
Configuration
Dual, Normal, Terminated
Dual, Normal, Unterminated
Dual Feed Thru
Specifications
3.0 GHz – 3 GB meets SMPTE
424M-2006 for HDTV
Nominal Impedance:
75 Ohms
Return Loss:
<-10 dB up to 4.1 GHz
Contact Resistance:
Less than 25 Milliohms
Termination Resistance: 75 Ohms +/- 5%
Center Contact Accepts: 0.050 pin diameter
Mechanical
Mechanical Shock:
Vibration:
Insertion Force:
Withdrawal Force:
Life Cycle:
Per Mil-STD-202, Method 213,
Test Condition 1
Per Mil-STD-202, Method 204,
Test Condition A
10 pounds maximum
2-10 pounds
30,000 minimum
Electrical
Bandwidth:
Environmental
Operating Temperature: -40 degrees C to 85 degrees C
Storage Temperature: -40 degrees C to 85 degrees C
Salt Spray:
Per Mil-STD-202, Method 101,
Test Condition B
Thermal Shock:
Per Mil-STD-202, Method
107, Test Condition A
Moisture:
Per Mil-STD-202, Method 106
RoHS:
Compliant
Material
Housing:
Center Contact:
Switching Contact:
Grounding Contact:
Insulator:
Zinc Alloy, Nickel plated
Copper Alloy, Gold plated
Copper Alloy, Gold plated
Copper Alloy, Gold plated
Teflon
®
& TPX
Winchester Electronics
199 Park Road Extension, Suite 104
Middlebury, Connecticut 06762
203.741.5400
Phone
203.741.5500
Fax
www.winchesterelectronics.com
December 2012
