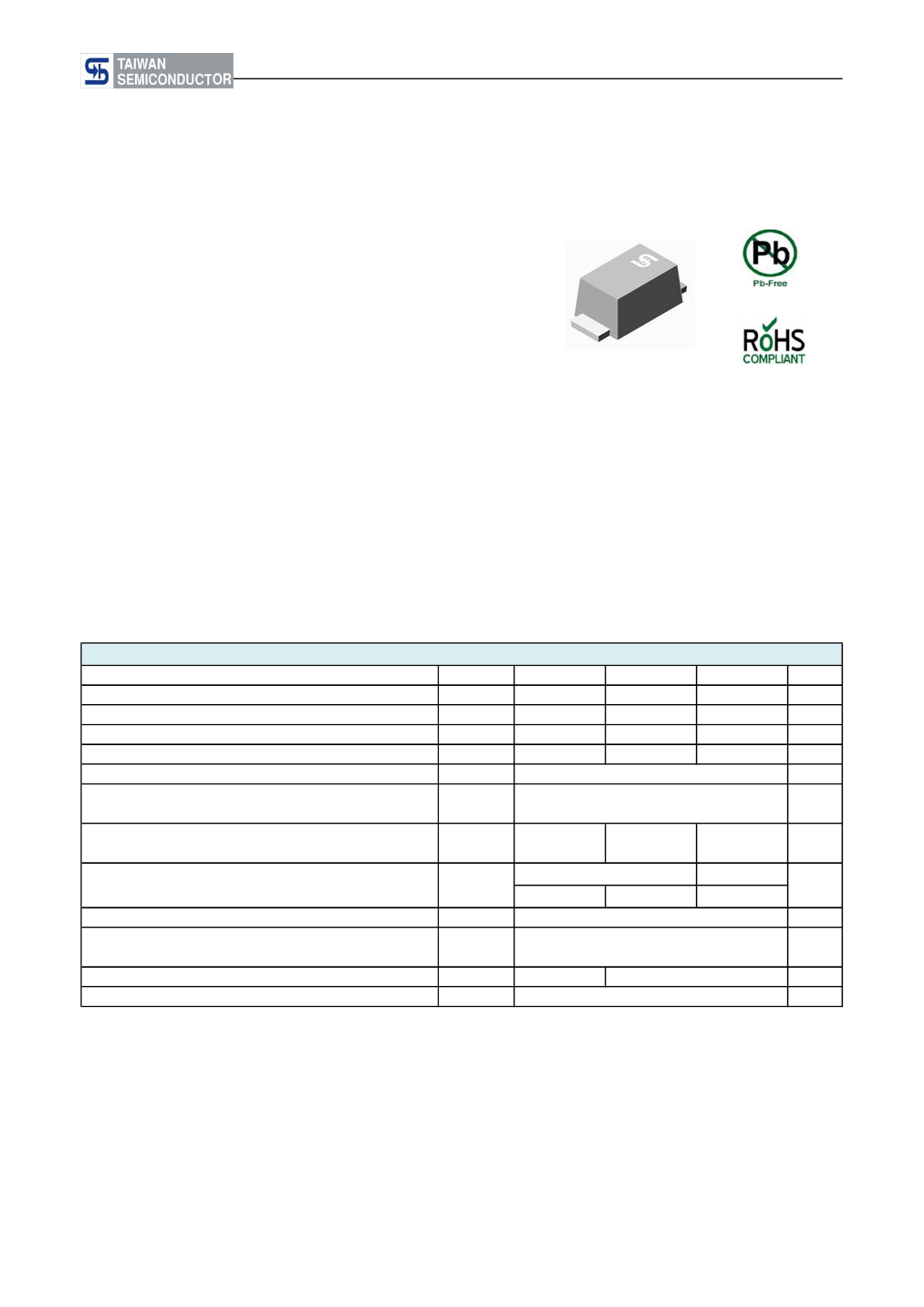

SS34L thru SS310L
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High surge current capability
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Schottky Barrier Rectifier
TYPICAL APPLICATIONS
For use in high frequency inverters, freewheeling, DC/DC converters,
and polarity protection applications
Sub SMA
MECHANICAL DATA
Case:
Sub SMA
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - Green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.019 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 3 A
Maximum reverse current @ rated VR
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
dV/dt
R
θJC
R
θJA
T
J
T
STG
- 55 to +125
0.5
0.5
60
10
10000
30
60
- 55 to +150
- 55 to +150
SYMBOL
SS34L
34L
40
28
40
SS36L
36L
60
42
60
3
80
0.75
0.85
0.1
5
SS310L
310L
100
70
100
V
V
V
A
A
V
mA
V/μs
O
UNIT
C/W
O
O
C
C
Document Number: DS_D1405056
Version: B14
SS34L thru SS310L
Taiwan Semiconductor

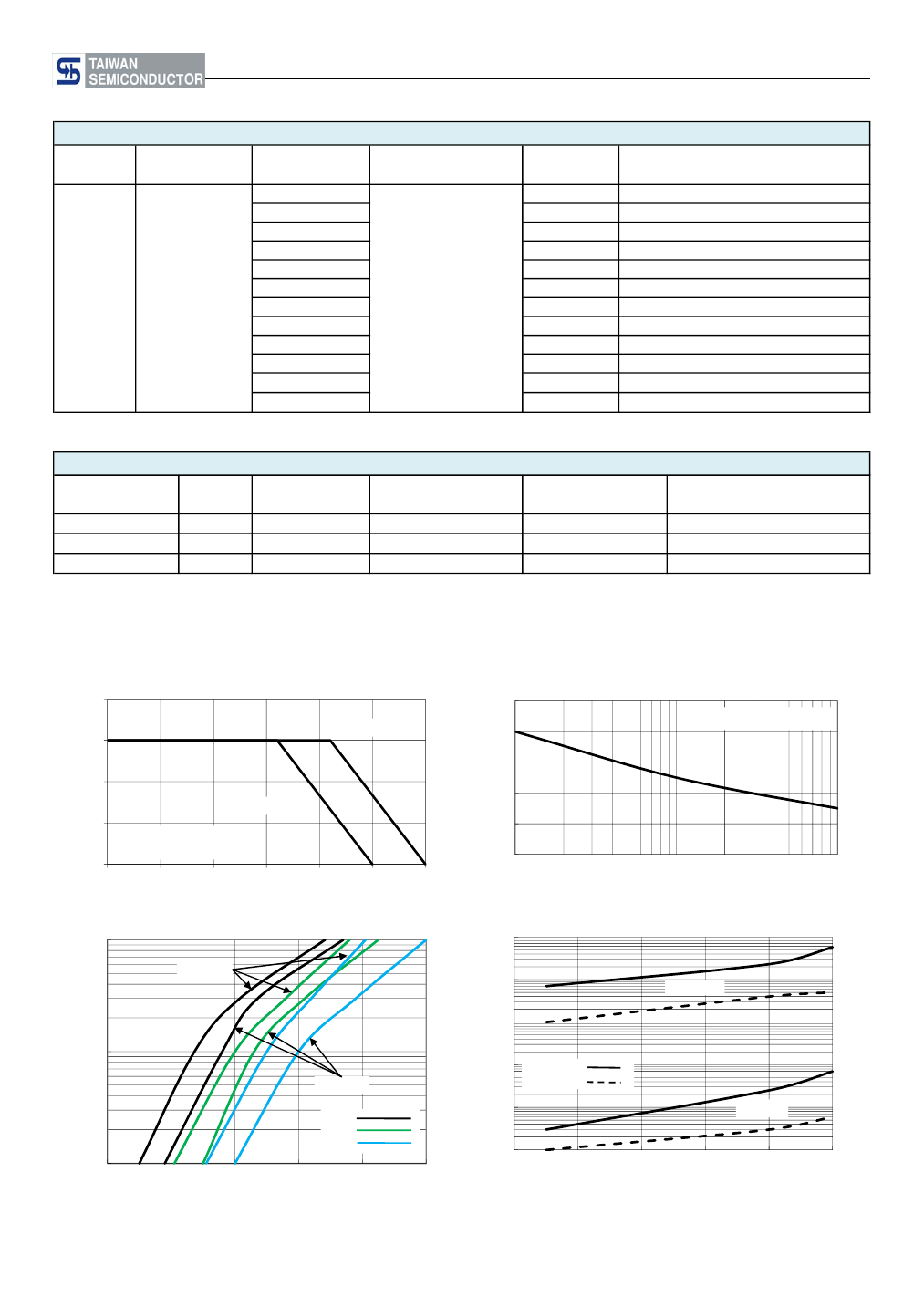

ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
RU
RV
RT
MT
RQ
MQ
R3
RF
R2
M2
RH
MH
Note 1: "xx" defines voltage from 40V (SS34L) to 100V (SS310L)
PACKING CODE
GREEN COMPOUND
CODE
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
1,800 / 7" Plastic reel (8mm tape)
3,000 / 7" Plastic reel (8mm tape)
7,500 / 13" Paper reel (8mm tape)
7,500 / 13" Plastic reel (8mm tape)
10,000 / 13" Paper reel (8mm tape)
10,000 / 13" Plastic reel (8mm tape)
1,800 / 7" Plastic reel (12mm tape)
3,000 / 7" Plastic reel (12mm tape)
7,500 / 13" Paper reel (12mm tape)
7,500 / 13" Plastic reel (12mm tape)
10,000 / 13" Paper reel (12mm tape)
10,000 / 13" Plastic reel (12mm tape)
PACKAGE
PACKING
SS3xxL
(Note1)
Prefix "H"
Suffix "G"
EXAMPLE
PREFERRED P/N PART NO.
SS34L RU
SS34L RUG
SS34LHRU
SS34L
SS34L
SS34L
H
AEC-Q101
QUALIFIED
PACKING CODE
RU
RU
RU
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
4
60V - 100V
PEAK FORWARD SURGE CURRENT
(A)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
8.3ms Single Half Sine-Wave
80
60
40
20
0
1
10
100
3
2
40V
1
RESISTIVE OR
INDUCTIVE LOAD
0
0
25
50
75
100
125
150
CASE TEMPERATURE (
o
C)
NUMBER OF CYCLES AT 60 Hz
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
10
TJ=125℃
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
100
10
TJ=125℃
1
1
TJ=25℃
40V
60V
100V
0.1
0
0.2
0.4
0.6
0.8
1
FORWARD VOLTAGE (V)
0.1
40V
60V - 100V
TJ=25℃
0.01
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLYAGE(%)
Document Number: DS_D1405056
Version: B14
SS34L thru SS310L
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
a
40V - 60V
100
100V
f=1.0MHz
Vslg=50mVp-p
0.1
1
10
100
10
REVERSE VOLTAGE (V)

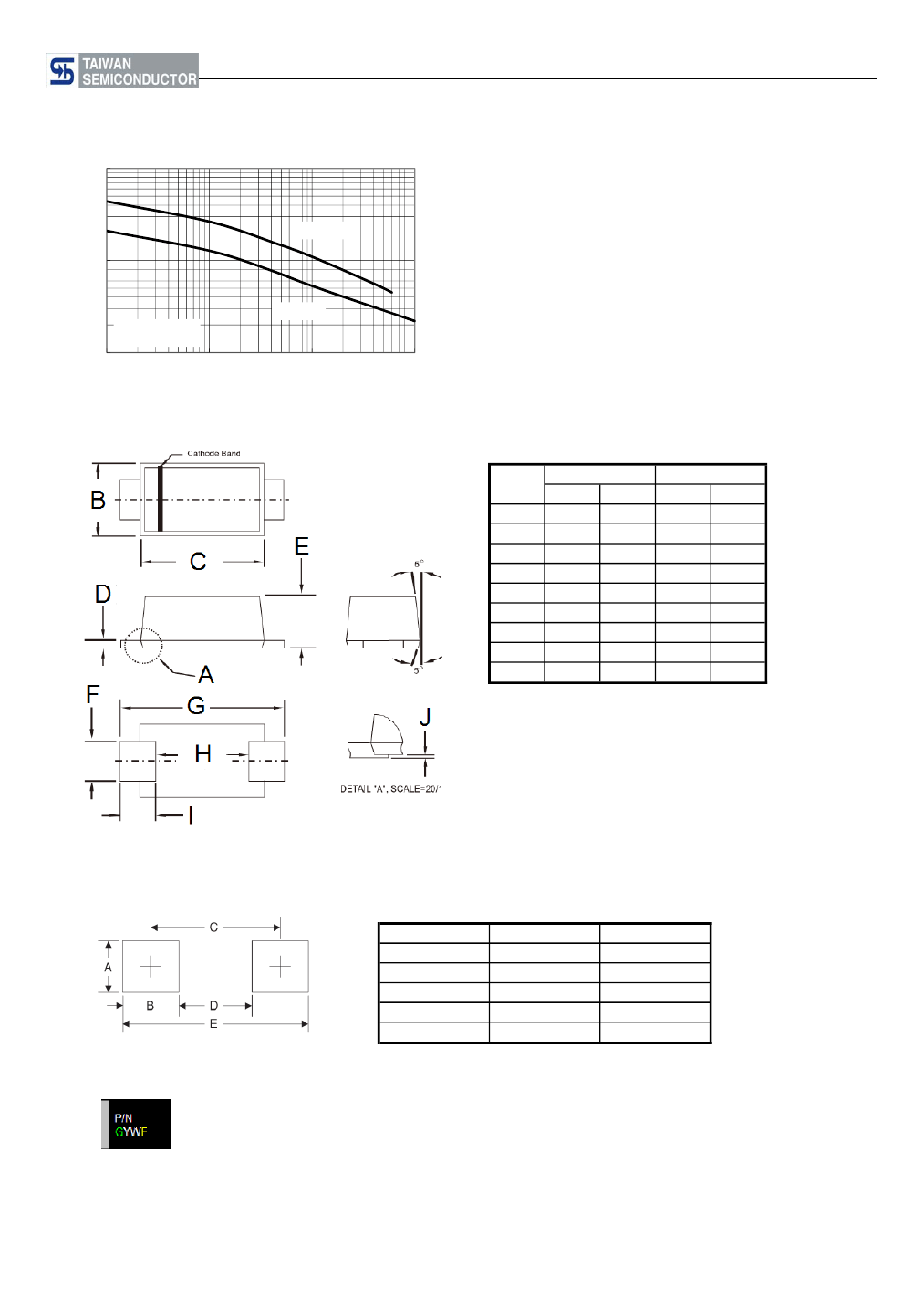

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.70
2.70
0.16
1.23
0.80
3.40
2.45
0.35
0.00
Max
1.90
2.90
0.30
1.43
1.20
3.80
2.60
0.85
0.10
Unit (inch)
Min
0.067
0.106
0.006
0.048
0.031
0.134
0.096
0.014
0.000
Max
0.075
0.114
0.012
0.056
0.047
0.150
0.102
0.033
0.004
DIM.
B
C
D
E
F
G
H
I
J
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
G
YW
F
Document Number: DS_D1405056
= Marking Code
= Green Compound
= Date Code
= Factory Code
Version: B14
SS34L thru SS310L
Taiwan Semiconductor
CREAT BY ART
