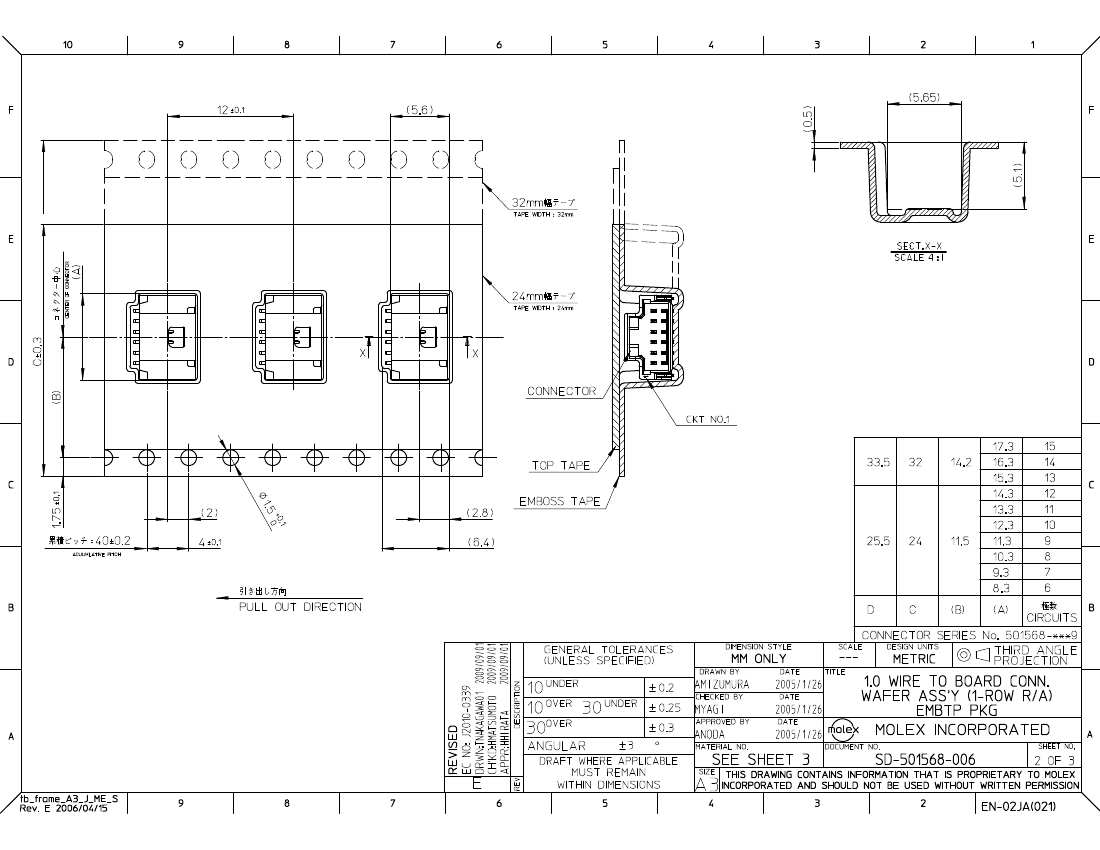

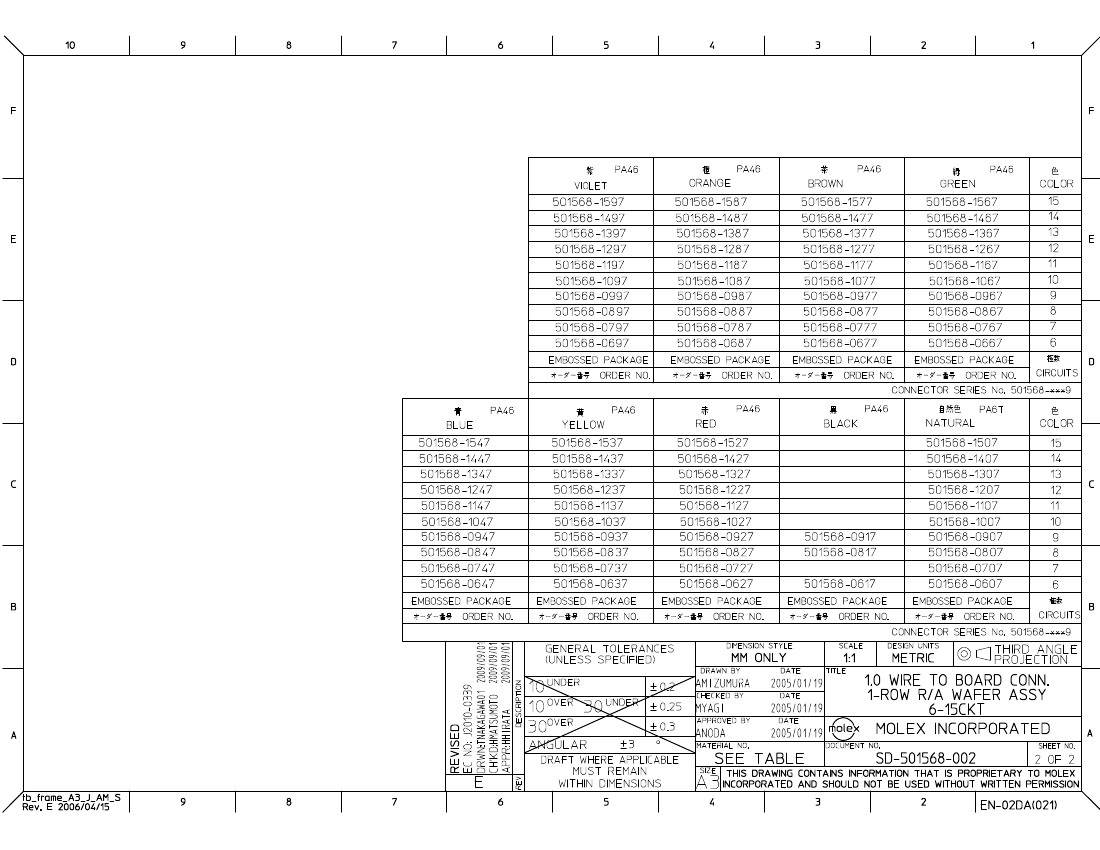

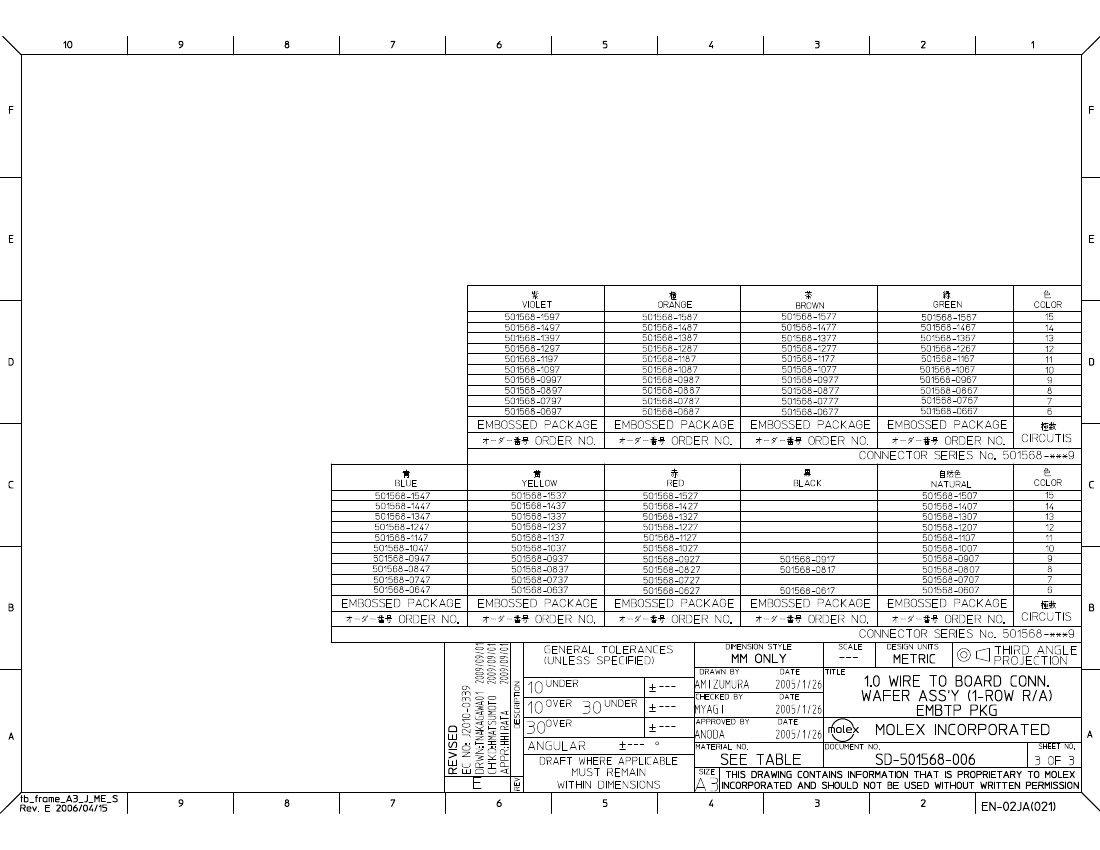

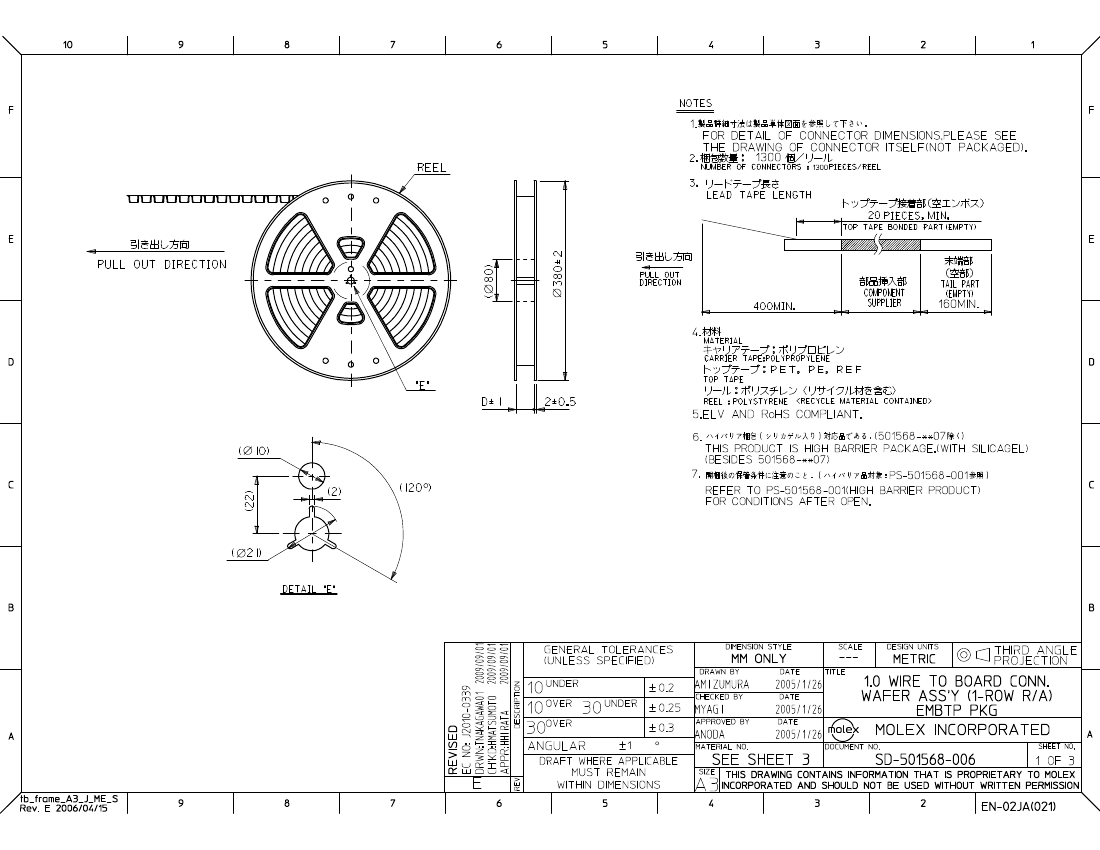

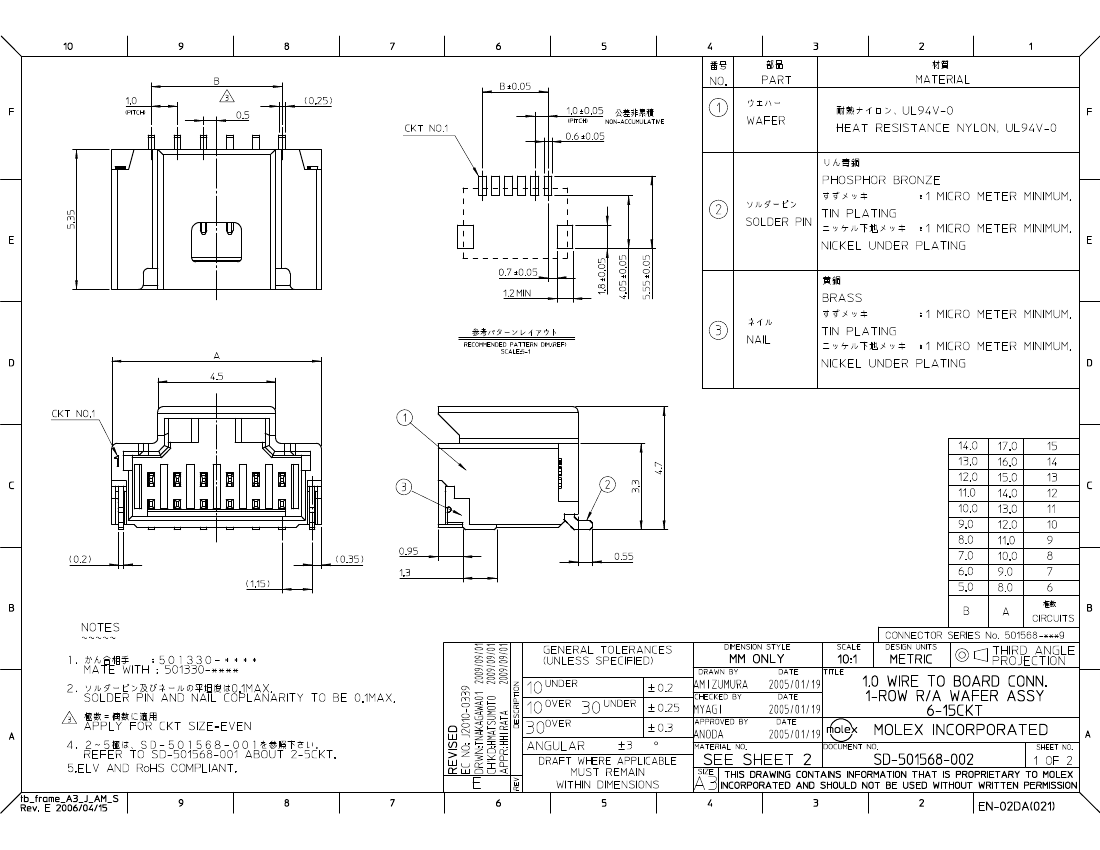

501568-1507 |
5015681307 |
501568-1107 |
5015681007 |
| Description |
CONN HEADER 1MM 15POS SMD R/A |
CONN HEADER 1MM 13POS SMD R/A |
CONN HEADER 1MM 11POS SMD R/A |
CONN HEADER 1MM 10POS SMD R/A |
| Connector type |
Connector |
Connector |
Connector |
Connector |
| Contact type |
Male pin |
Male pin |
Male pin |
Male pin |
| Spacing - Mating |
0.039"（1.00mm） |
0.039"（1.00mm） |
0.039"（1.00mm） |
0.039"（1.00mm） |
| Number of pins |
15 |
13 |
11 |
10 |
| Number of rows |
1 |
1 |
1 |
1 |
| Number of pins loaded |
all |
all |
all |
all |
| style |
Board to cable/wire |
Board to cable/wire |
Board to cable/wire |
Board to cable/wire |
| shield |
Covered - 4 walls |
Covered - 4 walls |
Covered - 4 walls |
Covered - 4 walls |
| Installation type |
Surface mount, right angle |
Surface mount, right angle |
Surface mount, right angle |
Surface mount, right angle |
| Termination |
welding |
welding |
welding |
welding |
| Fastening type |
latch holder |
latch holder |
latch holder |
latch holder |
| Insulation height |
0.185"（4.70mm） |
0.185"（4.70mm） |
0.185"（4.70mm） |
0.185"（4.70mm） |
| Contact shape |
Square |
Square |
Square |
Square |
| Contact surface treatment - mating |
tin |
tin |
tin |
tin |
| Contact Surface Treatment Thickness - Mating |
40.0µin（1.02µm） |
40.0µin（1.02µm） |
40.0µin（1.02µm） |
40.0µin（1.02µm） |
| Contact Surface Preparation - Column |
tin |
tin |
tin |
tin |
| Contact material |
Phosphor bronze |
Phosphor bronze |
Phosphor bronze |
Phosphor bronze |
| Insulation Materials |
Polyamide (PA), nylon |
Polyamide (PA), nylon |
Polyamide (PA), nylon |
Polyamide (PA), nylon |
| characteristic |
Fixed solder tail |
Fixed solder tail |
Fixed solder tail |
Fixed solder tail |
| Material flammability rating |
UL94 V-0 |
UL94 V-0 |
UL94 V-0 |
UL94 V-0 |
| Insulation color |
natural |
natural |
natural |
natural |
| application |
Universal |
Universal |
Universal |
Universal |
