IEC, J1772 and GB e-mobility
Interconnect Solutions
ITT’s class leading UL and CE certified coupler connector/plugs, inlets, outlets and accessories offer recognized, trusted and proven
charging solutions for today’s e-mobility markets. Built in accordance with all key regional standards - IEC for Europe, J1772 for the
Americas and Japan, and GB for China they provide a truly global portfolio.
ITT offers a fully comprehensive range of AC charging options− with an industry leading amperage range from 16A to 80A, single
and triple phase variants, low contact resistance and a minimum of 10k mating cycles. In addition to off the shelf solutions our EV
offering is fully customizable to meet specific requirements and we are able to offer variants on colors, harnesses and terminals.
By using common coupler connector/plug elements such as an ergonomically designed handle, robust contact system, innovative wire
positioners and strain relief system ITT is able to serve global industry players with a consistent, recognizable look and feel to support
their own product, user and brand experience.
Key features
• Cable options certified and approved to
regional requirements
• Sealing to meet and exceed specifications
• Up to 80A AC Charging option
• Low contact resistance of 20mΩ
• Minimum 10k mating cycles
• Coupler connector/plug dual locking system
• Coupler connector/plug strain relief provides
protection from cable overstressing
Applications
• Home EV Charging Units
• Public Charging Stations
• Roadside Assistance Trucks
• Fleet Trucks
• EV Mass Transit Vehicles
• Electric Watercraft
• Passenger Vehicles
• Electric Motorcycles
• Electric Agriculture Vehicles
Voice of the Customer
We need a partner with proven industry
experience, global reach and the ability to
develop truly customized solution - in order to
be certain we can provide what our
customers demand. ITT delivers this.
www.ittcannon.com
3
IEC electric vehicle charging solutions

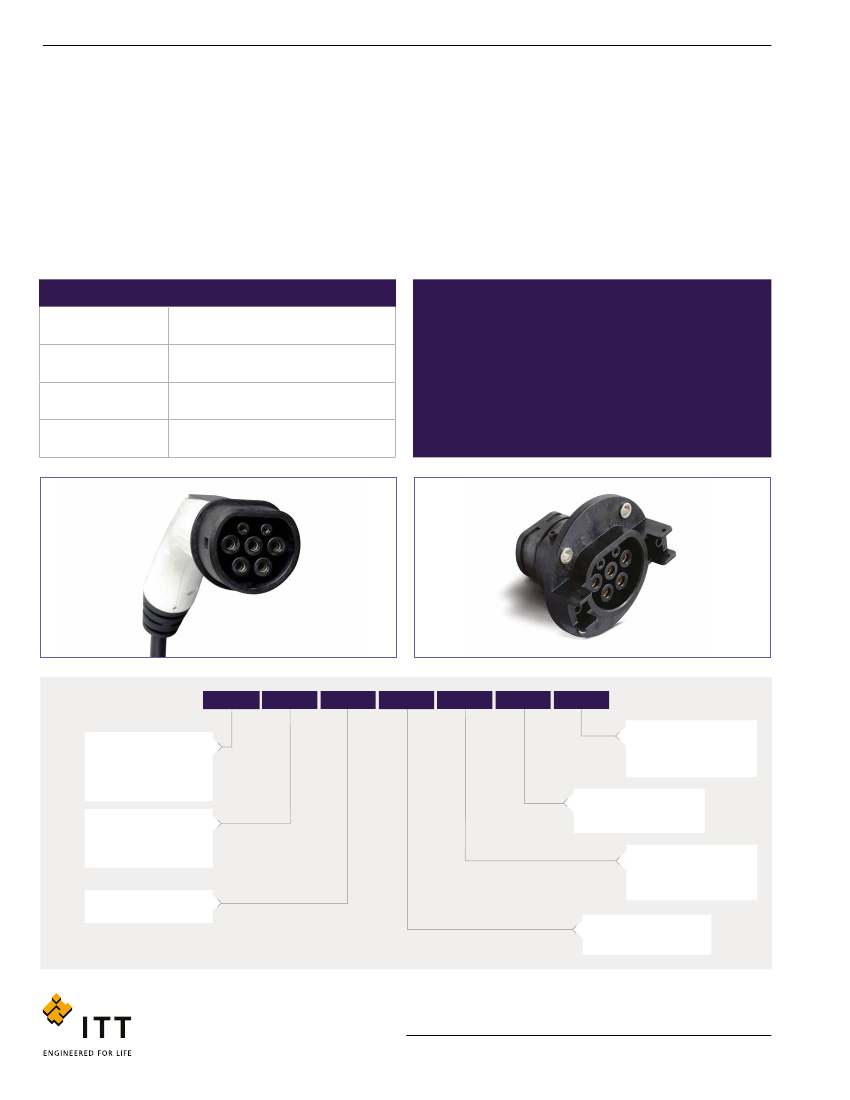

ITT’s IEC e-mobility solutions are built in accordance with IEC 62196-1
and 62196-2 standards for single and three phase charging systems.
IEC performance data
Temperature Range
Durability
Sealing Requirements
Certifications
- 25°C to +105°C
10,000 mating cycles min
IP 44 min per IEC 61851-1 and tested in
accordance with IEC 60525
CE, ETL IEC 62196-1 and IEC62196-2
Key Features
• Drain holes at the bottom of the coupler connector/plug –
eliminates latch freezing and includes protective shield from
small diameter metal penetration to the wiring.
• Dual locking system – provides customer options of a secondary
locking system for theft protection.
• Textured coupler connector/plug handle – selected by human
factor groups provides enhanced grip while in use.
• Optional mating face protection – lanyard dust caps options for
coupler connector/plug and spring cap options for inlets
provide additional protection when connectors are not in use.
How to order
Connector Series
ECCE = Connector (EVSE)
ECCV = Connector (Vehicle)
ECIE = Inlet (EVSE)
ECIV = Inlet (Vehicle)
XXXX
XX
X
X
XX
X
XXX
Modification Code
(3 digits)
001 thru 999
(if necessary)
Sealing Method
S = Sealed
U = Un-sealed
Cable Size
20 = 20A-500V
32 = 32A-500V
63 = 63A-500V
Cable Length - in ft.
KO = Kit (without cable)
(Ref. #SOP-ECXE-KXX)
(Ref. #SOP-ECXV-KXX)
Cable Rating (AC)
2 = Level 2
Powering System (AC)
1 = Single Phase
3 = Three Phase
For ordering information on ECIER contact ITT.
4
www.ittcannon.com

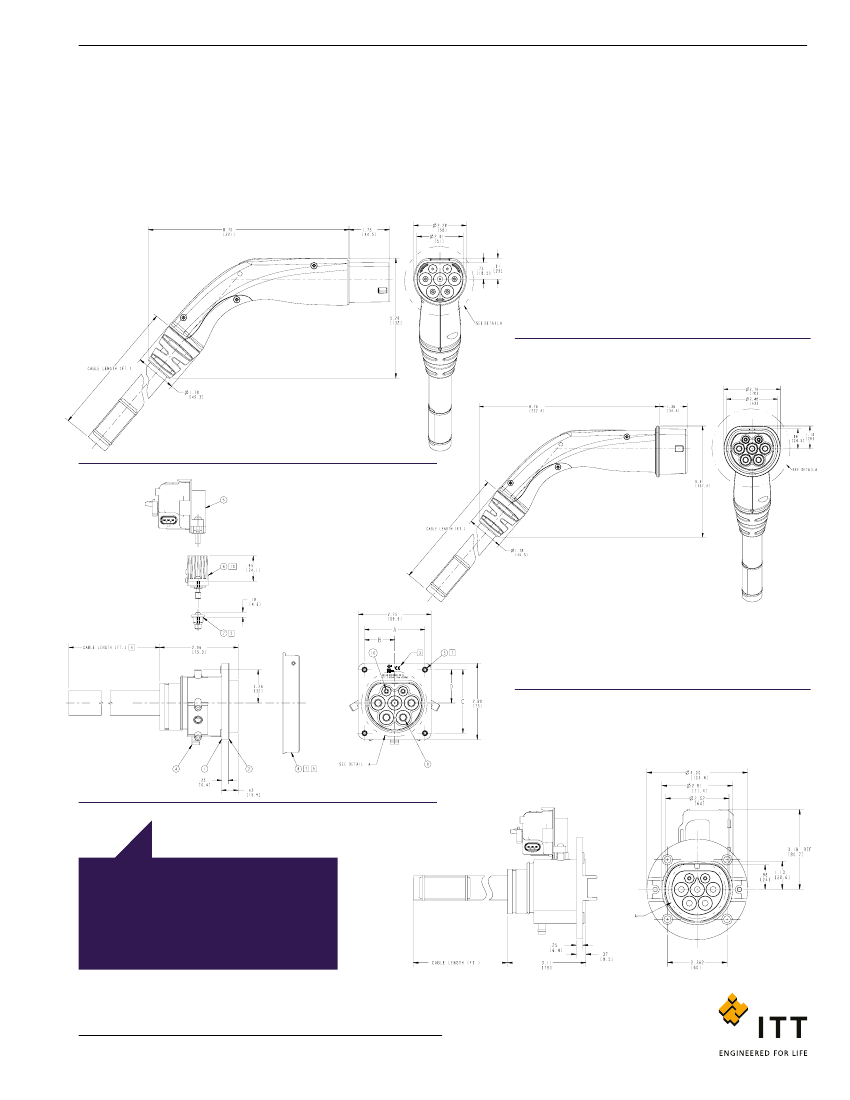

IEC dimension drawings
ECCE Connector
ECCV Connector
ECIER
Inlet
ECIV Inlet
3D models are available for
download from
ittcannon.com
Dimensions shown in mm
Specifications and dimensions subject to change
www.ittcannon.com
5
