C10M0.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> C10M0.5

C10M0.5: DescriptionFUSE CARTRIDGE 500MA 500VAC 5AG; CategoryCircuit protection Circuit protection; File Size1MB，13 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

C10M0.5 Overview

FUSE CARTRIDGE 500MA 500VAC 5AG

C10M0.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
body height	38 mm
Body length or diameter	10 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	10mm x 38mm
Rated breaking capacity	120000 A
Rated current	0.5 A
Rated voltage (AC)	500 V
Rated voltage (DC)	500 V
Guideline	IEC
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

Technical Data

720115

Effective September 2014

Bussmann

Cylindrical fuse links

Product description

Bussmann’s range of cylindrical class gG/gL and

aM fuse links are suitable for industrial applica-

tions.

Standard features

•

Compact design

Tool free installation

Low temperature rise

Available with strikers and indicators

Compatible with Bussmann’s modular fuse

holders

Technical Data

720115

Effective September 2014

Bussmann

Cylindrical fuse links

Table 1. Catalogue Symbol:

Size (mm)

Without

indicator

(example)

With indicator

(example)

With striker*

(example)

Class gG/gL

8 x 31

10 x 38

14 x 51

22 x 58

Class aM

C08G (amps)

(C08G4)

C10G(amps)

C10G4)

C14G(amps)

(C14G4)

C22G(amps)

(C22G4)

C08M(amps)

(C08M4)

C10M(amps)

(C10M4)

C14M(amps)

(C14M4)

C22M(amps)

(C22M12)

C08G(amps)I

(C08G4I)

C10G(amps)I

(C10G4I)

C14G(amps)I

(C14G4I)

C22G(amps)I

(C22G4I)

N/A

C10M(amps)I

(C10M4I)

C14M(amps)I

(C14M4I)

C22M(amps)I

(C22M12I)

N/A

C14G(amps)S*

(C14G4S)

C22G(amps)S*

(C22G4S)

N/A

C14M(amps)S*

(C14M4S)

C22M(amps)S*

(C22M12S)

8 x 31

10 x 38

14 x 51

22 x 58

* Striker fuse links can operate a microswitch for remote fuse link operated

indication

Fuse size:

•

8 x 31, 10 x 38, 14 x 51 and 22 x 58 mm

Technical data:

•

Volts: 400 to 690 V a.c.

Amps: 0.25 to 125 A

Breaking capacity: 20 to 120 kA AC

Class of operation: gG/gL and aM

Standards/Approvals:

•

IEC 60269

Packaging:

•

10 per carton

Dimensions - mm

Fuse links with or without indicator

Fuse links with striker

Size (mm)

8 x 31 mm

10 x 38 mm

14 x 51 mm

22 x 58 mm

Size (mm)

14 x 51

22 x 58

* For striker fuse links applications use CH14(# of poles) DMSU-F

or CH22(# of poles)DMSU-F fuse holders with microswitch auxil-

iary contacts

EATON

www.eaton.com

Bussmann

Cylindrical fuse links

Table 2. Catalogue Numbers gG/gL 8 x 31, 10 x 38 and 14 x 51 mm

Size

(mm)

Class Current Voltage Breaking Catalogue Pack

Fuse

(A)

(V a.c.) Capacity Numbers Quantity Holders*

(kA)

gG/gL

0.5

400

500

400

500

400

120

C08G0-5

C08G1

C08G2

C08G4

C08G6

C08G8

C08G10

C08G12

C08G16

C08G20

C08G2I

C08G4I

C08G6I

C08G8I

C08G10I

C08G12I

C08G16I

C08G20I

C10G0-5

C10G1

C10G2

C10G4

C10G6

C10G8

C10G10

C10G12

C10G16

C10G20

C10G25

C10G32

C10G1I

C10G2I

C10G4I

C10G6I

C10G8I

C10G10I

C10G12I

C10G16I

C10G20I

C10G25I

C10G32I

C10G40I

C10G50I

CHM

Size

(mm)

Class

Technical Data

720115

Effective September 2014

Fuse

Current Voltage Breaking Catalogue Pack

(A)

(V a.c.) Capacity Numbers Quantity Holders*

(kA)

690

500

400

690

500

400

500

400

120

C14G1

C14G2

C14G4

C14G6

C14G8

C14G10

C14G12

C14G16

C14G20

C14G25

C14G32

C14G40

C14G50

C14G1I

C14G2I

C14G4I

C14G6I

C14G8I

C14G10I

C14G12I

C14G16I

C14G20I

C14G25I

C14G32I

C14G40I

C14G50I

C14G2S

C14G4S

C14G6S

C14G8S

C14G10S

C14G12S

C14G16S

C14G20S

C14G25S

C14G32S

C14G40S

C14G50S

CH14

8 x 31 mm Without indicator

14 x 51 mm Without indicator

8 x 31

10 x 38

8 x 31 mm With indicator

14 x 51

gG/gL

14 x 51 mm With indicator

10 x 38 mm Without indicator

14 x 51 mm With striker

10 x 38 mm With indicator

* Please contact our Technical department for further information on our range of modular fuse holders: 00 44 1509 882 699 or

buletechnical@eaton.com

EATON

www.eaton.com

Bussmann

Cylindrical fuse links

Table 3. Catalogue Numbers 22 x 58 mm

Technical Data

720115

Effective September 2014

Size

(mm)

Fuse

Class Current Voltage Breaking Catalogue Pack

(A)

(V a.c.) Capacity Numbers Quantity Holders*

(kA)

gG/gL

100

125

100

125

100

125

690

500

400

690

500

400

690

500

400

120

C22G2

C22G4

C22G6

C22G8

C22G10

C22G12

C22G16

C22G20

C22G25

C22G32

C22G40

C22G50

C22G63

C22G80

C22G100

C22G125

C22G2I

C22G4I

C22G6I

C22G8I

C22G10I

C22G12I

C22G16I

C22G20I

C22G25I

C22G32I

C22G40I

C22G50I

C22G63I

C22G80I

C22G100I

C22G125I

C22G4S

C22G6S

C22G8S

C22G10S

C22G12S

C22G16S

C22G20S

C22G25S

C22G32S

C22G40S

C22G50S

C22G63S

C22G80S

C22G100S

C22G125S

CH22

22 x 58 mm Without indicator

22 x 58

22 x 58 mm With indicator

22 x 58 mm With striker

* Please contact our Technical department for further information on

our range of modular fuse holders: 00 44 1509 882 699 or

buletechnical@eaton.com

EATON

www.eaton.com

Technical Data

720115

Effective September 2014

Bussmann

Cylindrical fuse links

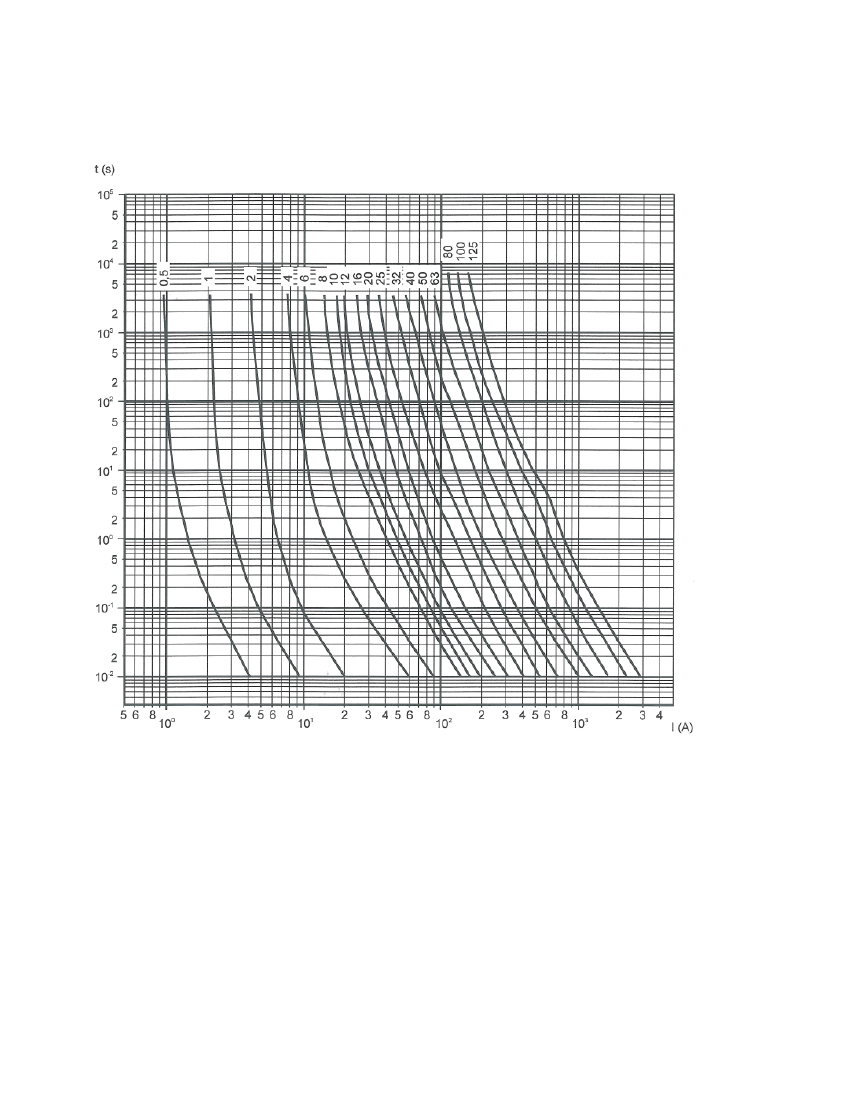

Time-current curves - Class gG/gL

Time in seconds (s)

Current in Amps (A)

EATON

www.eaton.com

Recommended Resources
