5448514 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5448514

5448514: DescriptionTERM BLOCK PLUG 9POS STR 5MM; CategoryThe connector; File Size70KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5448514 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5448514	-	-	View	Buy Now

5448514 Overview

TERM BLOCK PLUG 9POS STR 5MM

5448514 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	9
Number of pins per level	9
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	12A
Voltage - IEC	320V
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Wire gauge or range - mm²	0.2-2.5mm²
color	green
Operating temperature	-
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	-
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	-
Contact tail length	-
Insulation height	0.591"（15.00mm）

Preview

Download Datasheet

View All

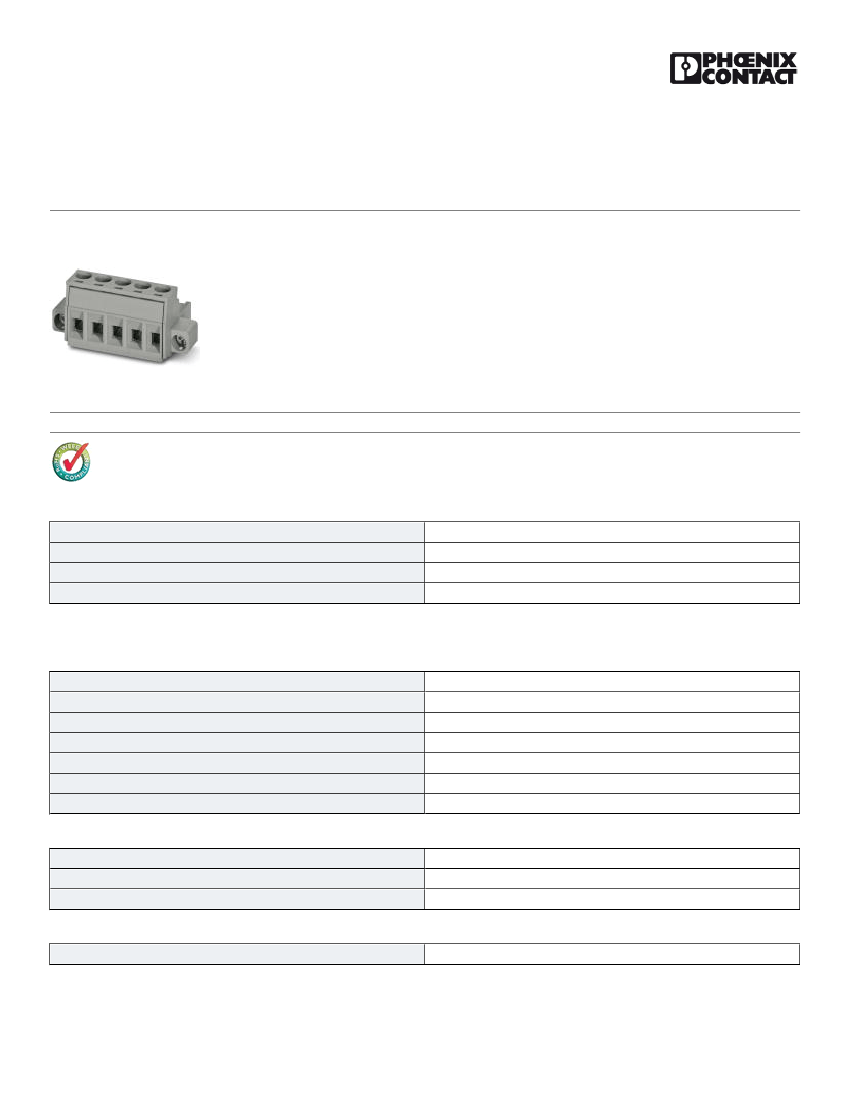

https://www.phoenixcontact.com/us/products/5448514

Printed-circuit board connector - BCP-500F- 9 GN - 5448514

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 9, Pitch: 5 mm,

Connection method: Screw connection, Color: pastel green, Contact surface: Tin

The figure shows a 5-pos. version of

the product in gray

Key commercial data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

272607xx

27260701

27261101

27440401

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002638

UNSPSC

UNSPSC 6.01

30211801

11/04/2014 Page 1 / 3
