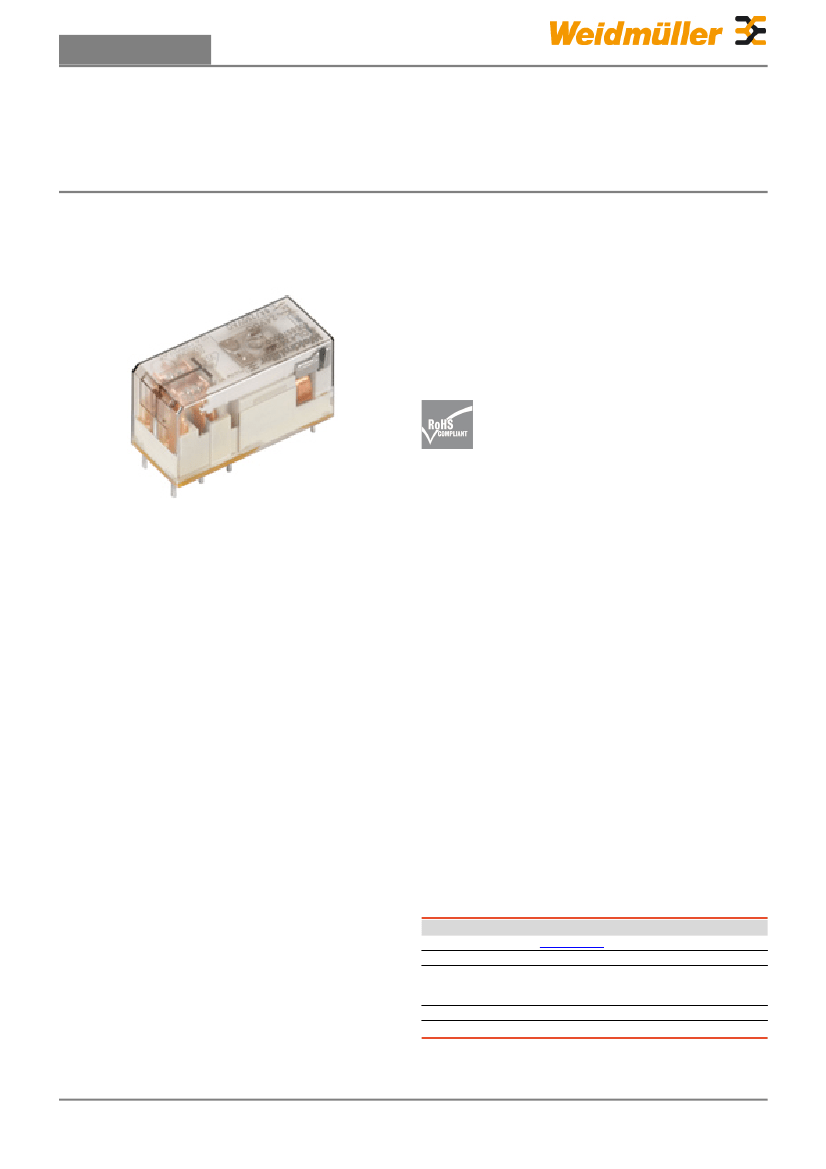

Standard relays in the RIDERSERIES RCL
• 1 NO contact
• Low height of 15.7 mm
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8693280000
RCL334024
RIDERSERIES, Relais, No. of contacts: 1, NO
contact, AgNi 90/10, Rated control voltage: 24 V
DC, Continuous current: 16 A, Plug-in connection
4032248364732
20 pc(s).
Creation date April 1, 2013 10:43:49 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
RIDERSERIES
RCL334024
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Humidity
Ratings
Conductor connection system
Weight
Plug-in connection
14 g
UL 94 flammability rating
40 °C / 93 % rel. humidity,
no condensation
V-0
Dimensions and weights
Width
Depth
Net weight
12.7 mm
15.7 mm
15 g
Height
Weight
29 mm
14 g
Temperatures
Operating temperature
-40 °C...+70 °C
Storage temperature
-40 °C...+85 °C
Input
Rated control voltage
24 V DC
Coil resistance
1,440 Ω ±10 %
Pull-in (sparkover) / drop-out voltage DC
coil
16.8 V / 2.4 V
Rated current DC
Power rating
16.7 mA
500 mW
Output
Rated switching voltage
Continuous current
Max. switching power
Switch-off delay
250 V AC
16 A
4000 VA
≤ 6 ms
Max. switching frequency at rated load 0.1 Hz
Max. switching voltage, AC
making current
Switch-on delay
Min. switching power
400 V
30 A / 4 s
≤ 8 ms
100 mA / 5 V, 10 V / 10
mA, 24 V / 1 mA
Contact specifications
No. of contacts
Contact material
1
AgNi 90/10
Contact design
Mechanical service life
NO contact
AC coil 10 x 10
6
Switching
cycles, DC coil 30 x 10
6
Switching cycles
Insulation coordination
Rated voltage
250 V
Clearance and creepage distances for
control side - load side
Protection degree
≥ 10 mm
IP 20
Dielectric strength for control side - load
5 kV
eff
/ 1min
side
Insulating material group
IIIa
Other technical data
Version
Relay
Free-wheel diode
No
Further details of approvals / standards
Standards
IEC 61810-1, UL508
Creation date April 1, 2013 10:43:49 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
RIDERSERIES
RCL334024
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001437
30-21-19-17
27-37-16-01
27-37-16-01
ETIM 3.0
eClass 4.1
eClass 6.0
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001437
40-02-06-14
27-37-16-01
Approvals
Approvals
Creation date April 1, 2013 10:43:49 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
RIDERSERIES
RCL334024
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

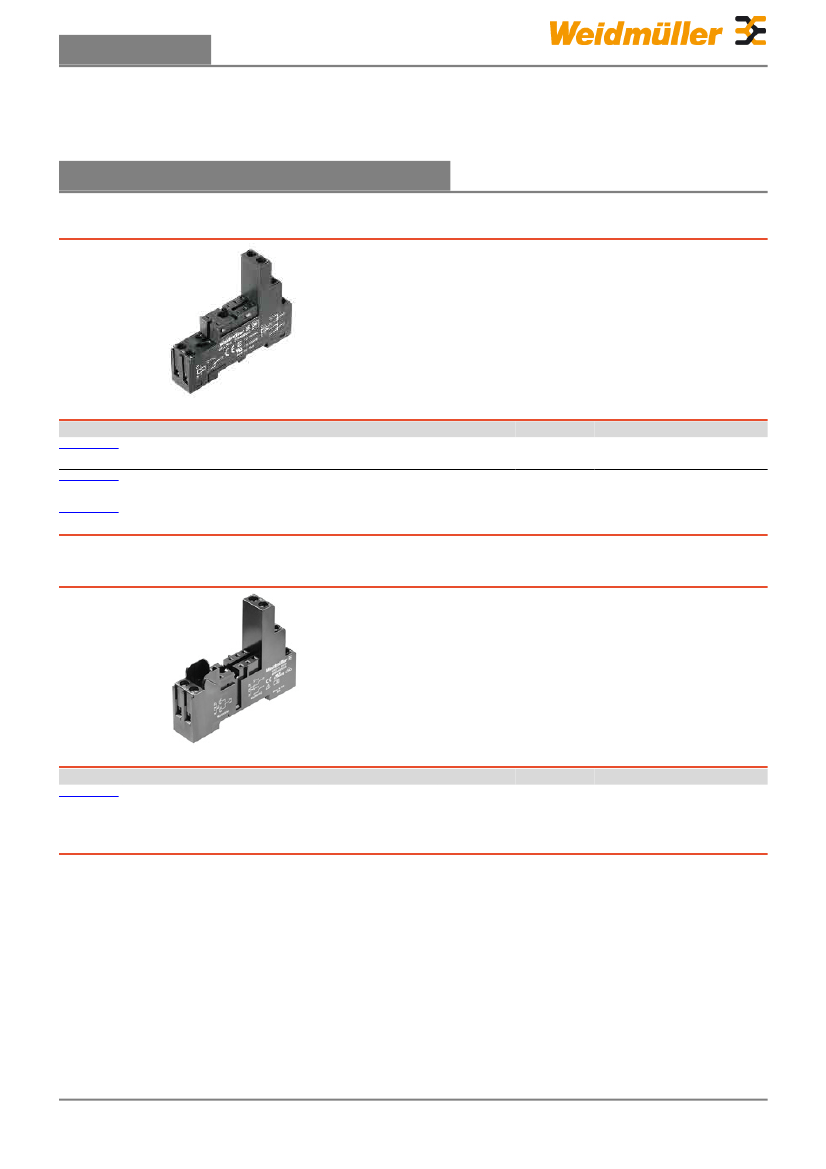

Mating connector (fully pluggable)
Base
Relay base for RIDERSERIES RCL relays
• Screw and tension clamp connection
• Standard and low heights
• Plug-in frame for PCB connections
General ordering data
Order No.
8693930000
SRC 2CO N
8783930000
SRC 2CO Z
8690830000
SRC 2CO
Type
Version
RIDERSERIES, Relay base, 4032248365418 10 pc(s).
Screw connection
RIDERSERIES, Relay base, 4032248471430 10 pc(s).
Tension clamp connection
Screw connection
RIDERSERIES, Relay base, 4032248361519 10 pc(s).
GTIN (EAN)
Qty.
Base
Relay base for the RIDERSERIES RCI relays
• 1 and 2 CO contacts
• Screw and PUSH IN connection
• Standard and low heights
General ordering data
Order No.
8869500000
SRC-I 2CO P
Type
Version
RIDERSERIES, Relay base, 4032248614455 10 pc(s).
Continuous current: 16
connection
A
(1
, 8 A, PUSH IN spring
GTIN (EAN)
Qty.
Creation date April 1, 2013 10:43:49 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
4
