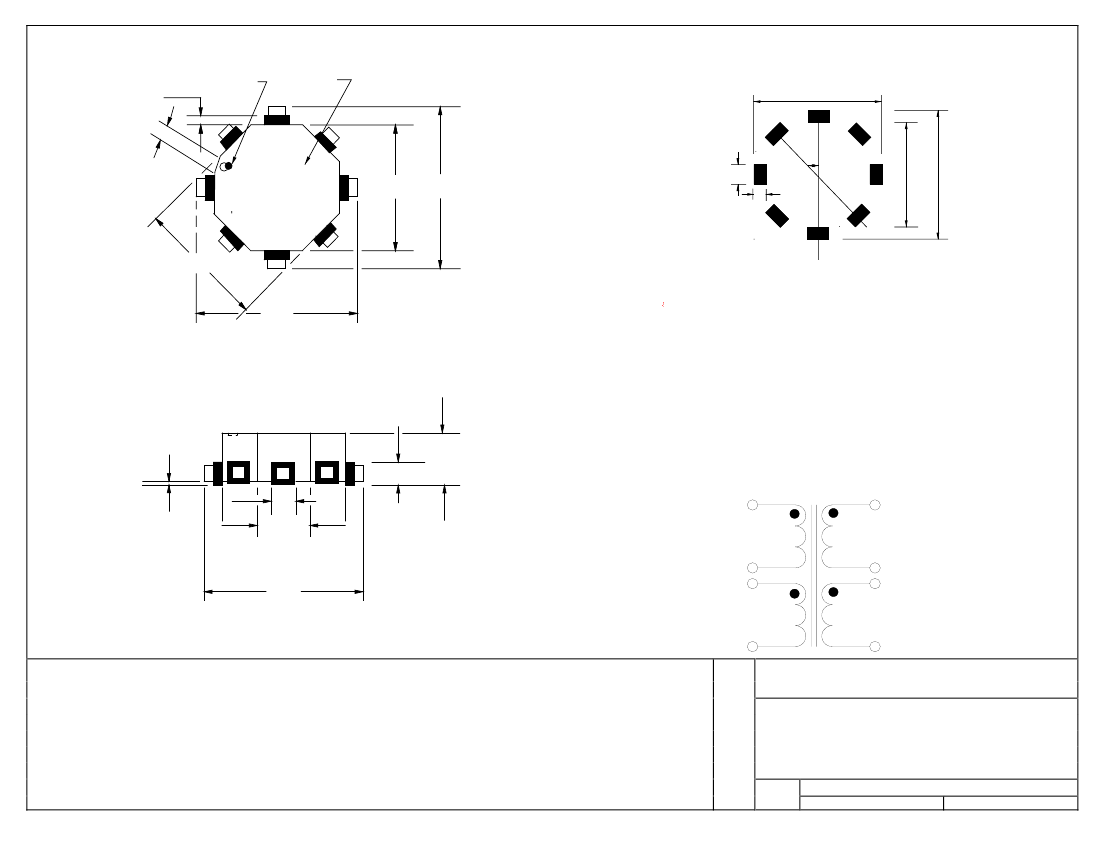

TOP VIEW
White dot
0.762 MIN
(4 PLCS)
1.70
8
7
Stamp
RECOMMENDED PCB PAD LAYOUT
18.80
6
8
7
6
45 DEG
8PLCS 5
12.7
18.80
1
COILTRONICS
CTX60-5P
wwllyy R
5
13.21
17.0
8PLCS
3.81
3.0
1
8PLCS
2
3
4
4
13.21
2
3
17.0
FRONT VIEW
0.127 MIN
8.26
MAX
3.18
MAX
5.26 REF
ELECTRICAL CHARACTERISTICS
OCL @ 20 KHz, 0.100 Vrms, 0 Adc, (1,2,3,4 - 5,6,7,8): 51 - 69 uH
OCL @ 20 KHz, 0.100 Vrms, 1.83 Adc, (1,2,3,4 - 5,6,7,8): 38 uH minimum
DCR @ 20°C pins (1-8): 0.38 Ohms maximum
DCR @ 20°C pins (2-7): 0.38 Ohms maximum
DCR @ 20°C pins (3-6): 0.38 Ohms maximum
DCR @ 20°C pins (4-5): 0.38 Ohms maximum
Hipot @ 300Vdc between windings for 1 second
Turns ratio (1-8) : (2-7) : (3-6) : (4-5) = 1.00 +/- 2%
SCHEMATIC
3.43
MAX
1
60 uH
@ 0.456A
8
2
60 uH
@ 0.456A
7
4
60 uH
@ 0.456A
5
3
60 uH
@ 0.456A
6
17.0
Notes:
1) All dimensions are in inches.
2) Tolerances are .XX +/- 0.5 mm, .XXX +/- 0.254 mm unless otherwise noted.
3) All soldering surfaces to be coplanar within 0.15 mm.
4) wwllyy= Date Code, R= Revision Level
5). For 60 uH @ 1.83 Adc, tie pins (parallel)1,2,3,4 (starts) and tie pins (parallel) 5,6,7,8 (finishes)
6). For 960 uH @ 0.456 Adc, series connect pins 2 to 8, 3 to 7, 4 to 6 and measure across (1-5)
COILTRONICS, INCORPORATED
6000 Park of Commerce Blvd, Boca Raton, FL 33487
Inductor Transformer
60/960 uH @ 1.83/0.456 Adc
SMT, Octa-pac
TM
style 5-295 case, 8 pad
SIZE Drawing Number:
CTX60-5P
A
Revision Level:
B
Sheet Number:
4
