REVISION R
DO NOT
SCALE FROM
THIS PRINT
BTE-XXX-XX-X-D-EMX-XX
No OF POSITIONS
-020, -040, -060,
-080, -100, -120
(PER ROW)
* = SEE NOTE 9
LEAD STYLE
-01 .160 [4.06]
(No OF POS. x .0315 [.800]) + .548 [13.92] REF
(No OF POS. x .0315 [.800]) + .1575 [4.000] REF
{(No OF POS. -1) x .0315 [.800]} .003[.08]
01
OPTION
-GP: GUIDE POST (60 POS MAX)
(USE BTE-XXX-01-D-EM2-GP)
[SEE SHEET 2, FIG. 2-
AVAILABLE ONLY ON -EM2]
EDGE MOUNT THICKNESS
-EM2: .064[1.63] .004 PCB
(USE BTE-XXX-01-D-EM2 & T-1S42-01-X)
-EM3:
(USE BTE-XXX-01-D-EM3 &
T-1S42-02-X)
SEE NOTE 9
ROW SPECIFICATION
-D: DOUBLE (USE BTE-XXX-01-D-EMX)
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS
(USE T-1S42-XX-F) (SEE NOTE 7)
-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS
(USE T-1S42-XX-L)
-H: HEAVY GOLD (USE T-1S42-XX-H)
.235 5.97
REF
02

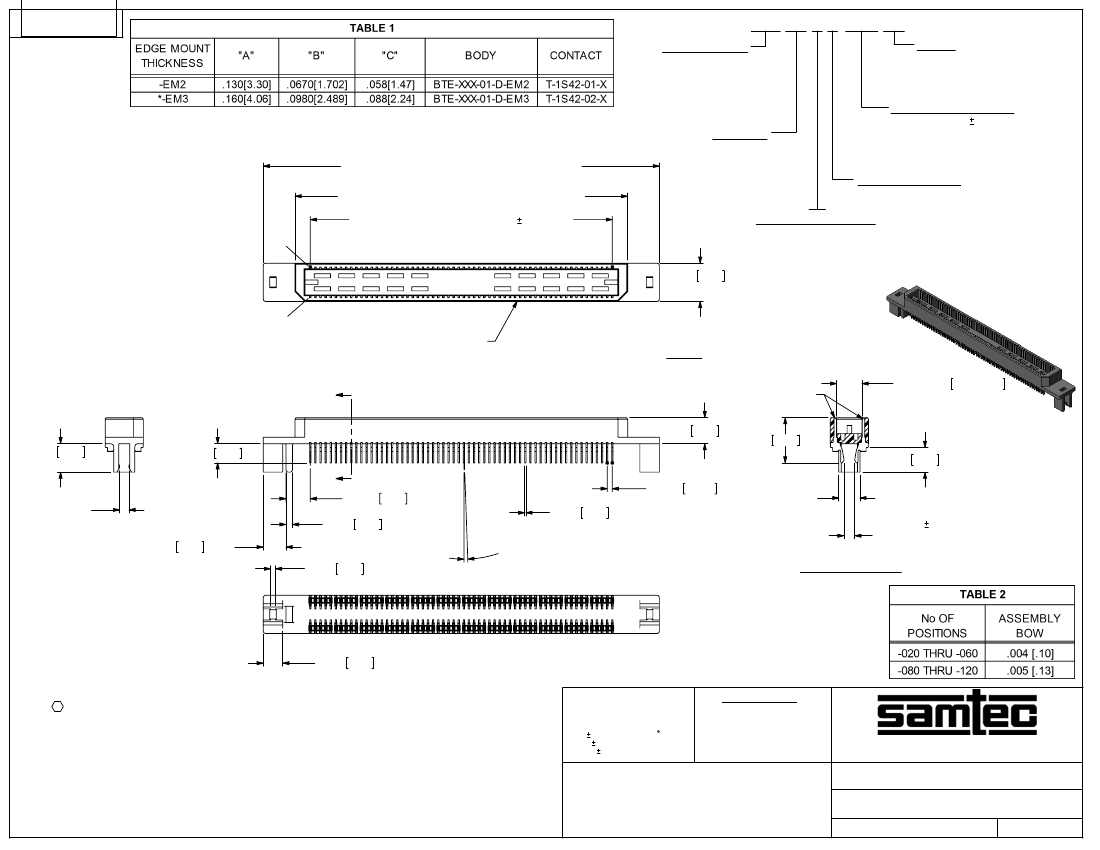

BTE-XXX-01-D-EMX
BTE-060-01-X-D-EM2 SHOWN
FIG. 1
"A"
.160 4.06 REF
.175 4.45
REF
.118 3.00
T-1S42-XX-X
.155±.003 3.94±0.08
.278 7.07 REF
.152 3.86 REF
"A"
.1495 3.80 REF
.040 1.02 REF
.140 3.56 REF
.030 0.76 REF
.008 0.20 REF
2° MAX SWAY
(TYP)
.0315 0.800 REF
"C" REF
"A" REF
"B" .003[.08]
(INSIDE TO INSIDE OF PIN)
(SEE NOTE 8)
SECTION "A"-"A"
.120 3.05 REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .0015 [.038] MAX.
3. MINIMUM TERMINAL RETENTION: 6 OZ.
4. PARTS TO BE MOLD-TO-POSITION.
5. NOTE DELETED.
6. BOARD THICKNESS TO BE MEASURED FROM SOLDER PAD TO SOLDER PAD.
7. -L PLATING MAY BE SUBSTITUTED FOR -F PLATING.
8. MAX VARIENCE: .002 [.05]
9. -EM3 IS NOT A STANDARD OFFERING; AVAILABLE AS AN ASP ONLY. PLEASE CONTACT SAMTEC
INTERCONNECT PROCESSING GROUP WITH ORDER INQUIRIES.
10. NOTE DELETED.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1.625:1
INSULATOR: BLACK LCP
TERMINAL:PHOS BRONZE
.8mm TERMINAL ASSEMBLY, EDGEMOUNT
DWG. NO.
BTE-XXX-XX-X-D-EMX-XX
2/18/00
SHEET
1
OF
2
F:\DWG\MISC\MKTG\BTE-XXX-XX-X-D-EMX-XX-MKT.SLDDRW
BY:
KEVIN B
REVISION R
((No OF POSITIONS x .0315[.800]) +.945[24.00] REF
.207 5.26 REF

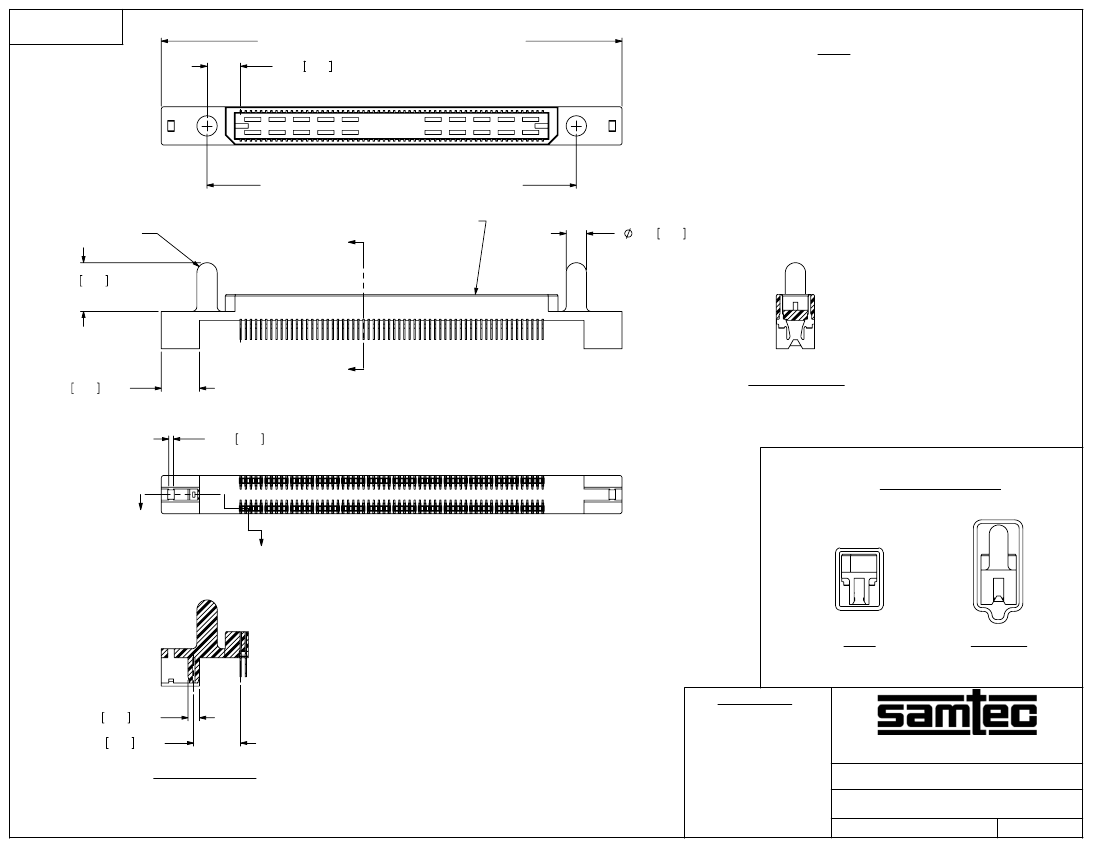

-GP OPTION (60 POS MAX)
BTE-060-01-X-D-EM2-GP SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
FIG 2
((No OF POSITIONS x .0315[.800]) +.383[9.73] REF
BTE-XXX-01-D-EM2-GP
R
"B"
.125 3.18 REF
.300 7.62
REF
"B"
.235 5.96 REF
SECTION "B"-"B"
.030 0.76 REF
"C"
"C"
[PARTS TO HAVE POSITION #1 LOADED IN
SAME DIRECTION AS ARROW ON TUBE]
PACKAGING VIEW
-EM2
TUBE: PT-1-24-01-95
PLUG: TP-03
PROPRIETARY NOTE
-EM2-GP
TUBE: PT-1-24-02-09
PLUG: TP-07
.070 1.78 REF
.289 7.33 REF
SECTION "C"-"C"
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.625:1
.8mm TERMINAL ASSEMBLY, EDGEMOUNT
BTE-XXX-XX-X-D-EMX-XX
2/18/00
SHEET
2
OF
2
F:\DWG\MISC\MKTG\BTE-XXX-XX-X-D-EMX-XX-MKT.SLDDRW
BY:
KEVIN B
