247BR-0030Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> 247BR-0030Z

Preview

247BR-0030Z: DescriptionVariable Coils; CategoryPassive components inductor; File Size21KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

247BR-0030Z Overview

Variable Coils

247BR-0030Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Minimum inductance(L)	220 µH
Nominal inductance(L)	220 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	7TS
Number of functions	1
Number of terminals	6
Minimum quality factor (at nominal inductance)	80
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
special characteristics	INDUCTANCE IS ADJUSTABLE OVER 4% FROM NOMINAL
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.796 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

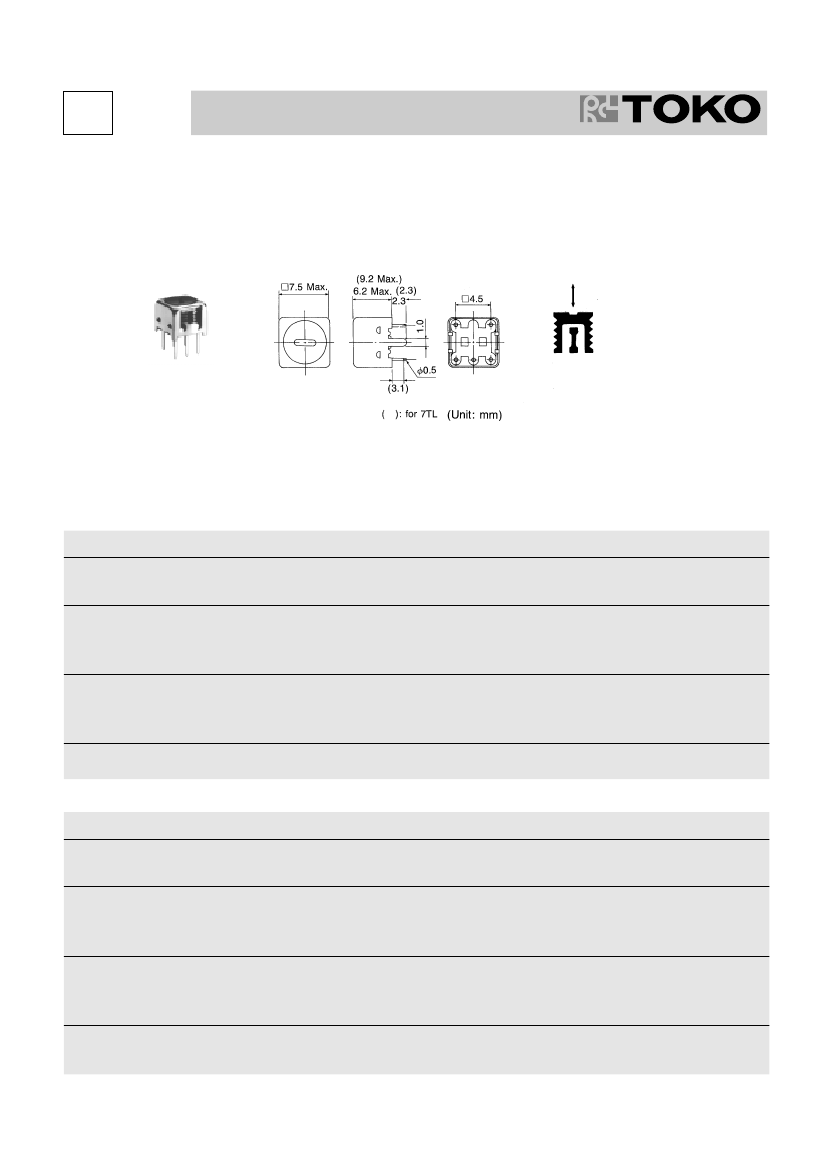

114

7TS

TYPE

Variable Coils

Meeting Your Needs

7TL

7mm TYPE 7TS, 7TL

Frequency Range:

10-200kHz (10-200kHz)

Inductance Range:

0.1-7mH (0.2-15.0mH)

Temperature Coefficient:

TC (L) 220±220ppm/°C max. (150±150ppm/°C)

Features

• The higher inductance makes the 7TS/7TL suitable for

low frequency and large inductance applications.

• 7TS is low profile version of only 6.2mm.

STANDARD COILS SELECTION GUIDE

TYPE 7TS

TOKO

Part

Number

247BR-0028Z

247BR-0029Z

247BR-0030Z

247BR-0031Z

247BR-0032Z

247BR-0033Z

247MN-0335Z

247MN-0537Z

247MN-0628Z

247MN-0170Z

247MN-0534Z

247MN-0411Z

Inductance

Range

(mH)

0.10±4%

0.15±4%

0.22±4%

0.33±4%

0.47±4%

0.68±4%

1.00±4%

1.50±4%

2.20±5%

3.30±5%

4.70±6%

6.80±5%

Q

(min.)

80

60

80

70

60

50

65

Test

Frequency

(KHz)

796.0

252.0

TYPE 7TL

TOKO

Part

Number

269LN-0031Z

269LN-0089Z

269LN-0091Z

269LN-0330Z

269LN-0332Z

269LN-0093Z

269LN-0094Z

269LN-0095Z

269LN-0096Z

269LN-0097Z

269LN-0051Z

269LN-0098Z

269LN-0099Z

Inductance

Range

(mH)

0.22±5%

0.47±5%

0.82±5%

1.00±6%

1.20±6%

1.80±5%

2.70±5%

3.90±5%

5.60±5%

8.20±5%

10.0±5%

12.4±5%

15.0±5%

Q

(min.)

60

80

70

55

50

Test

Frequency

(KHz)

796.0

252.0

79.6

1.800.PIK.TOKO

www.tokoam.com

1.847.297.0070
