225025P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 225025P

225025P: DescriptionFAST BLOW ELECTRIC FUSE, 5A, 125VAC, 500A (IR), INLINE/HOLDER; CategoryCircuit protection; File Size116KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

225025P Overview

FAST BLOW ELECTRIC FUSE, 5A, 125VAC, 500A (IR), INLINE/HOLDER

225025P Parametric

Parameter Name	Attribute value
Rated voltage (AC)	125 V
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE-UNCONFIRMED
Rated current	5 A
terminal coating	tin
Installation features	INLINE/HOLDER
Manufacturer Series	225
high	14.48 mm
length or diameter	4.5 mm
Terminal shape	END CAP
Electric fuse	Electric fuse
Rated joule integral	17 J
Fusing characteristics	FAST
Rated breaking capacity	500 V

Preview

Download Datasheet

View All

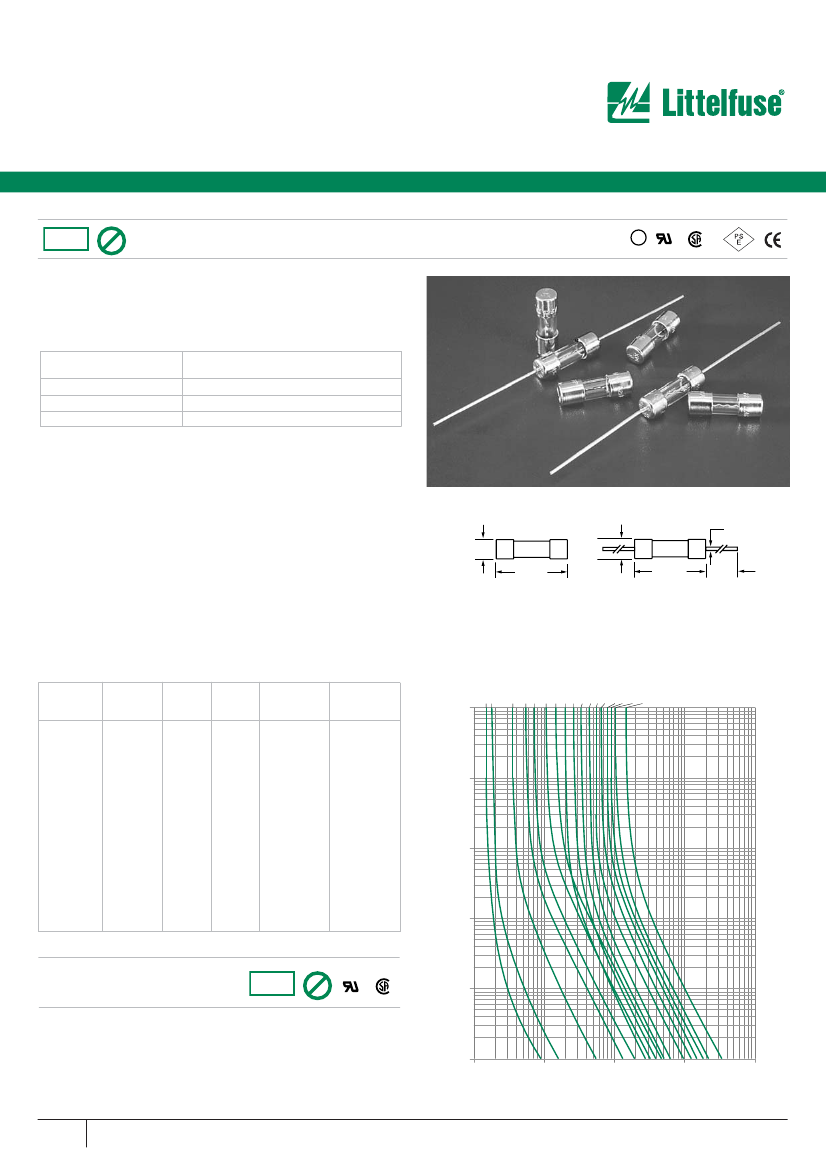

Axial Lead and Cartridge Fuses

Subminiature Glass Body

RoHS

2AG

Fast-Acting Fuse 224P/225P Series

The 2AG Fast-Acting fuses are available in cartridge form or with axial

leads. Axial leaded fuses are board washable. 2AG fuses provide the

same performance characteristics as their 3AG counterpart, while

occupying one-third the space. Sleeved fuses are available.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Opening

Time

4 hours,

Minimum

1 hour,

Maximum

1 second,

Maximum

AGENCY APPROVALS:

0.1 - 3.5A are Listed by Underwriters

Laboratories and Certified by CSA. 4 - 10A are recognized under the

Components Program of Underwriters Laboratories. 1 through 10

ampere approved by METI.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

INTERRUPTING RATINGS:

0.1–3.5A

4 –10A

0.1–1A

1.5–3.5A, 5A

10,000 ampere at 125 VAC

500 ampere at 125 VAC

35 ampere at 250 VAC

100 ampere at 250 VAC

PACKAGING OPTIONS:

224P Series available on Tape and Reel per

4.5

(.177")

225

000P

Series

4.7 (.184")

224

000P

Series

.635

(.025")

14.48

(.57")

14.48

(.57")

38.1

(1.50") TYP.

EIA-296. For 1500 pieces per reel, add packaging suffix DRT1P.

See page 8 for pitch Dimensions. 224P, 225P series available in

bulk packaging. For 1000 pieces bulk add packaging suffix MXP.

PATENTED

ORDERING INFORMATION:

Cartridge

Catalog

Number

225.100P

225.125P

225.250P

225.375P

225.500P

225.750P

225

001P

225

01.5P

225

002P

225

02.5P

225

003P

225

03.5P

225

004P

225

005P*

225

006P

225

007P

225

008P

225

010P

Axial Lead

Catalog

Number

224.100P

224.125P

224.250P

224.375P

224.500P

224.750P

224

001P

224

01.5P

224

002P

224

02.5P

224

003P

224

03.5P

224

004P

224

005P

224

006P

224

007P

224

008P

224

010P

Ampere

Rating

1/10

1/8

1/4

3/8

1/2

3/4

Voltage

Rating

250

125

Nominal

Resistance

Cold Ohms

6.15

3.90

1.15

0.395

0.265

0.152

0.102

0.0705

0.0490

0.0365

0.0310

0.0258

0.0233

0.0179

0.0147

0.0123

0.0100

0.00675

Nominal

Melting I

Sec.

0.000750

0.00286

0.0300

0.171

0.365

1.05

2.22

0.800

1.50

2.68

4.62

6.70

9.40

17.00

22.1

40.0

56.0

116.0

Axial Lead Material: Tin coated copper.

Average Time Current Curves

1/4A

3/8A

1/2A

3/4A

1 1/2A

2 1/2A

10A

100

CURRENT IN AMPERES

1/10A

1/8A

100

TIME IN SECONDS

0.1

*Rating is available in a 250VAC version. To order please use 0224005.MX250UP.

2AG Special 350V

Fast-Acting Fuse

RoHS

0.01

The

220 007P

subminiature fuse is intended for fluorescent lighting bal-

last protection or similar applications up to 350V.

AXIAL LEAD PART NUMBER: 220 007P

(ampere rating of 3A).

DIMENSIONS:

Same as 224P Series.

ELECTRICAL CHARACTERISTICS:

Same as 224P Series.

INTERRUPTING RATING:

100 amperes at 350 VAC.

Contact Littelfuse concerning other ampere ratings.

396

0.001

0.1

1000

w w w. l i t t e l f u s e . c o m
